Steering Column: Removal

NOTE: Power adjustable column shown below, manual column similar.

NOTE: Removal steps in this procedure may contain installation details.

Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
NOTE: This step is only necessary when installing a new component.

Remove the SCCM. Refer to: Steering Column Control Module (SCCM) .
Remove the steering column shrouds. Refer to: Steering Column Shrouds .
NOTE: Make sure that the steering wheel does not rotate or damage to the clockspring may occur.

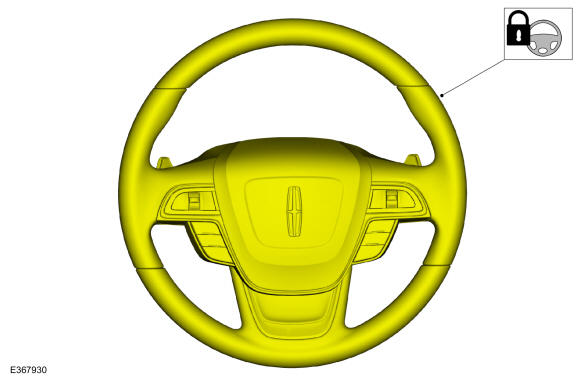

Secure the steering wheel.

Courtesy of FORD MOTOR COMPANY

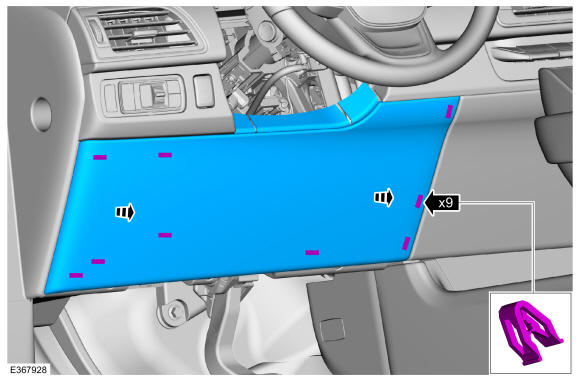

Release the clips and remove the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY

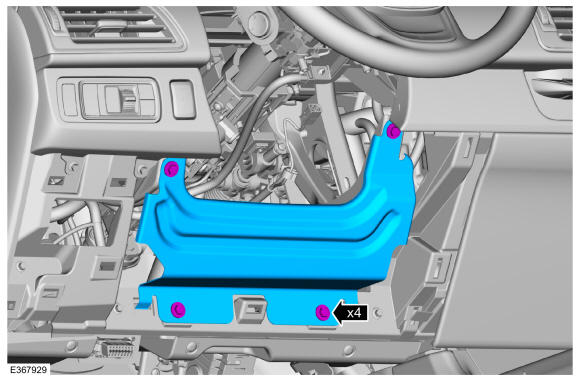

Remove the bolts and the steering column reinforcement panel.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Vehicles equipped with power adjustable steering column shown below, all others similar.

Includes deployable column connector.

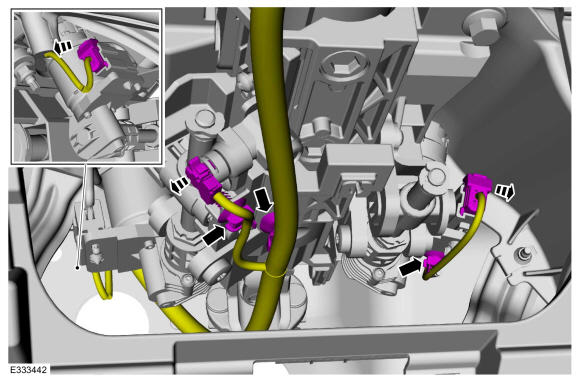

Disconnect the electrical connectors, release the retainers and position the wire harness aside.

Courtesy of FORD MOTOR COMPANY

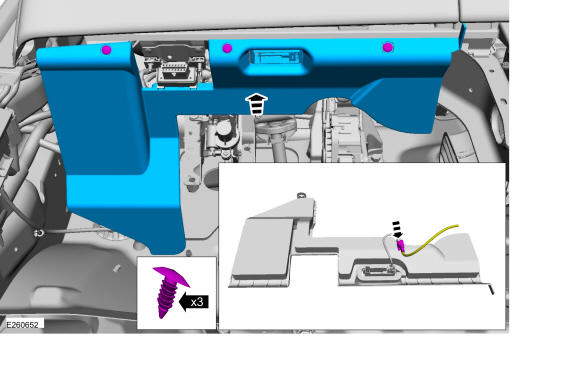

Remove the push pins and remove the LH insulation panel.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

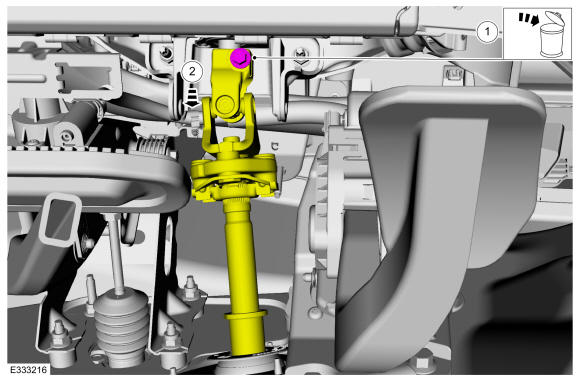

Disconnect the steering column upper shaft from the steering column.
1. Remove and discard the steering column shaft bolt.
  Torque: 22 lb.ft (30 Nm)
2. Disconnect the steering column upper shaft from the steering column.
Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

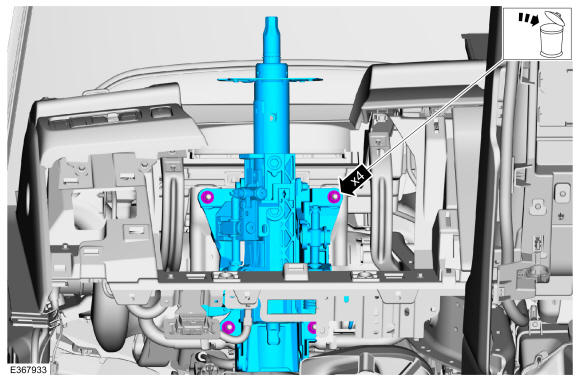

Remove and discard the retainers and remove the steering column.

Courtesy of FORD MOTOR COMPANY
