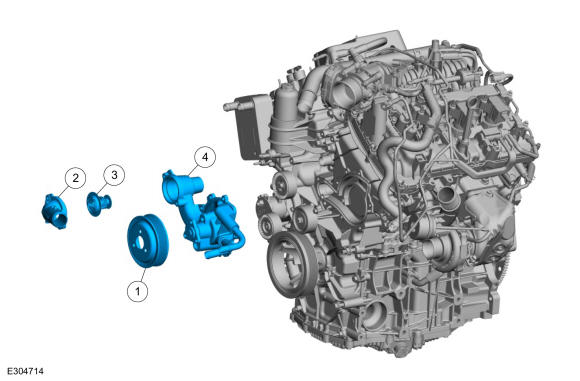

Exploded View Of Engine - Front Components

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	8A528	Coolant pump pulley
2	8K528	Coolant inlet
3	8575	Thermostat
4	8501	Coolant pump

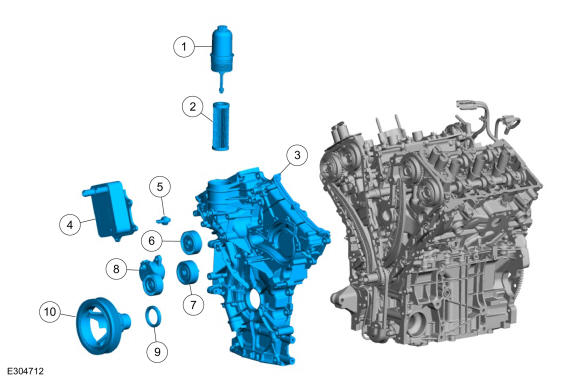

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	6A832	Oil filter housing
2	6731	Oil filter
3	6019	Engine front cover
4	6A642	Oil cooler
5	9D290	Engine oil pressure sensor
6	19A216	Idler pulley
7	19A216	Idler pulley
8	6A228	Belt tensioner
9	6700	Crankshaft front oil seal
10	6316	Crankshaft pulley

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	6616	Cover
2	6B651	Belt
3	6306	Crankshaft sprocket
4	6L266	RH timing chain tensioner
5	6K255	RH timing chain tensioner arm
6	6268	RH timing chain
7	6M256	RH timing chain guide
8	6306	Crankshaft sprocket
9	6L266	LH timing chain tensioner
10	6K255	LH timing chain tensioner arm
11	6268	LH timing chain
12	6B297	RH exhaust variable Camshaft Timing (VCT) unit
13	6B297	RH intake variable Camshaft Timing (VCT) unit
14	6B297	LH intake variable Camshaft Timing (VCT) unit
15	6B297	LH exhaust variable Camshaft Timing (VCT) unit
16	6B274	LH timing chain guide
17	6306	Crankshaft sprocket
