Front Brake Pads: Installation
WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Make sure that the brake hose is not twisted when installing the brake caliper or damage to the brake flexible hose may occur.

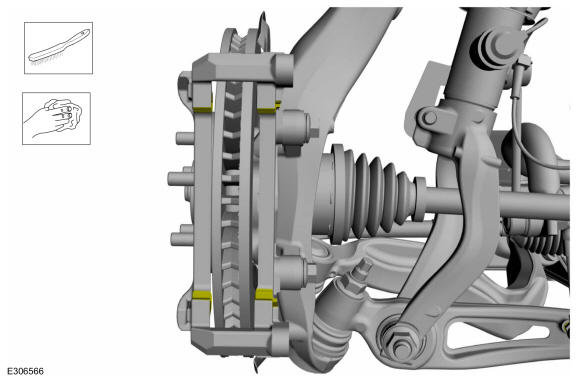

- Clean the brake pad-to-anchor plate contact surfaces.

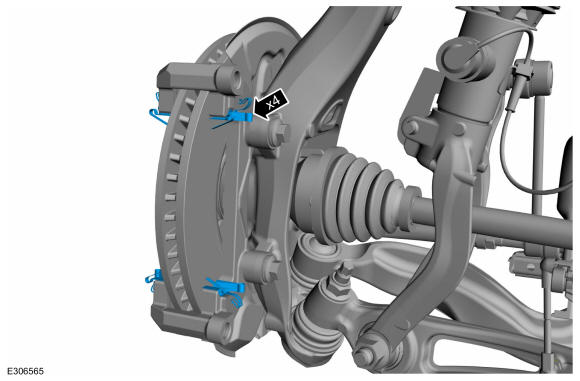

- Install the new brake pad clips.
-

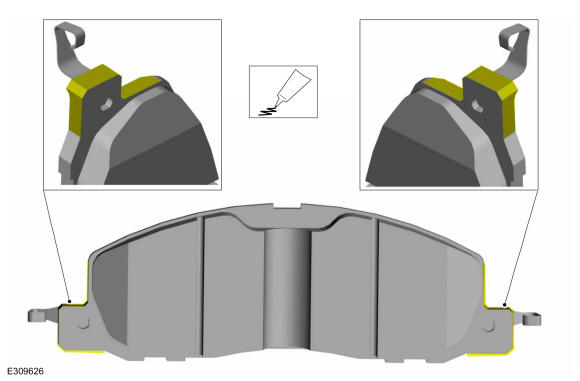

NOTE: Make sure to apply the grease supplied with the brake pad kit to the brake pad-to-anchor plate contact points.
Clean the brake pad-to-anchor plate contact surfaces and apply the grease supplied with the brake pad kit.

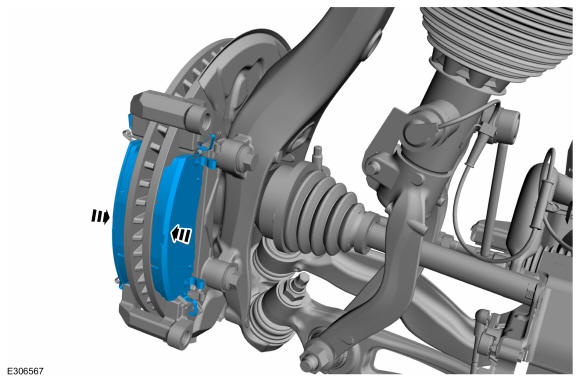

- Install the new brake pads.

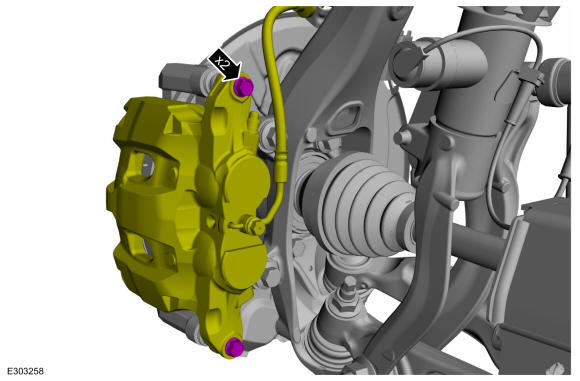

- Install the brake caliper and tighten the guide pin bolts.
Torque: M8 :: 20 lb.ft (27 Nm) M10 :: 34 lb.ft (46 Nm)
- Depress the brake pedal, check the brake fluid level in the brake fluid reservoir and top up as necessary with brake fluid. Refer to: Specifications .
- Install the wheel and tire. Refer to: Wheel and Tire .
