Transmission Fluid Cooler: Installation

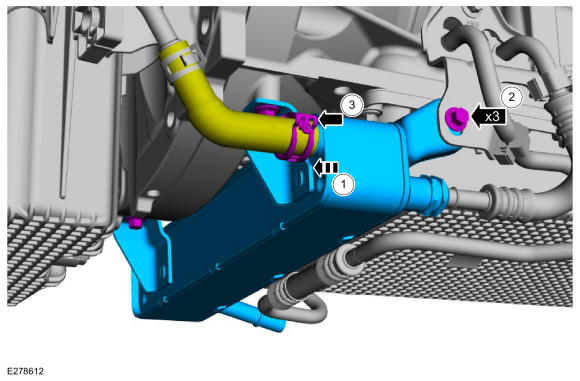

  1. Install the transmission fluid cooler.

    1. Slide the transmission fluid cooler on the coolant hose.
    2. Install the bolts.

      Torque

      : 22 lb.ft (30 Nm)

    3. Position the coolant hose clamp.

    GFD544159Courtesy of FORD MOTOR COMPANY

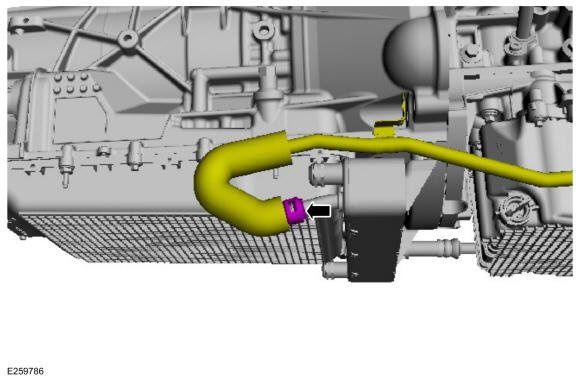

  2. Connect the coolant hose to the transmission fluid cooler.
    GFD544158Courtesy of FORD MOTOR COMPANY

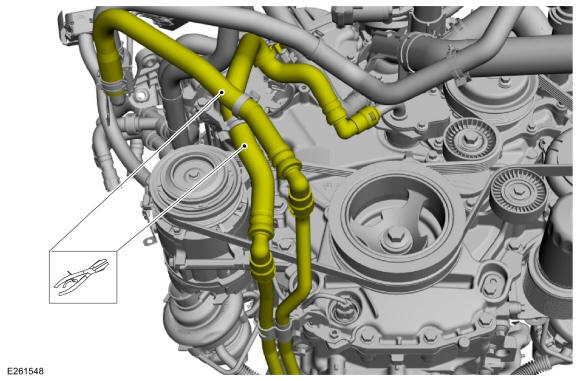

  3. Remove the clamps from the transmission fluid cooler coolant hoses.
    GFD544157Courtesy of FORD MOTOR COMPANY

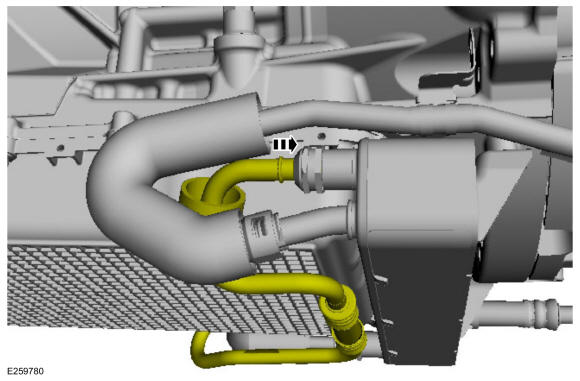

  4. Connect the transmission fluid cooler outlet tube to the transmission fluid cooler.
    GFD544160Courtesy of FORD MOTOR COMPANY

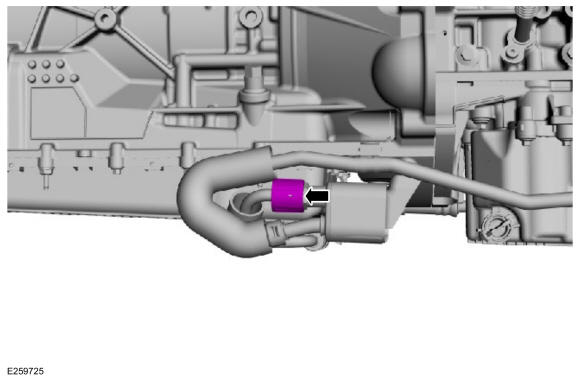

  5. Install the transmission fluid cooler outlet tube secondary latch.
    GFD544155Courtesy of FORD MOTOR COMPANY

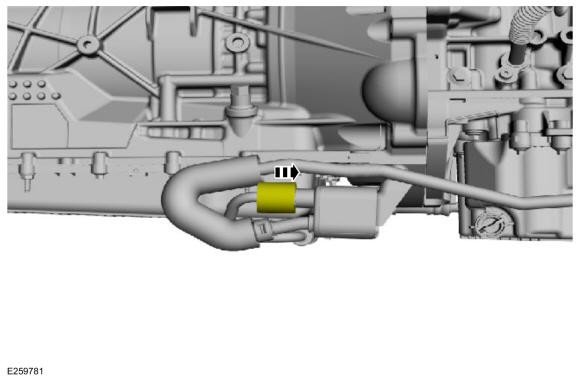

  6. Position the transmission fluid cooler outlet tube heat shield.
    GFD544161Courtesy of FORD MOTOR COMPANY

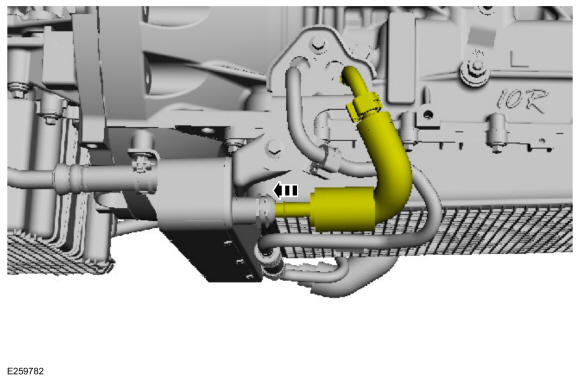

  7. Connect the transmission fluid cooler inlet tube to the transmission fluid cooler.
    GFD544162Courtesy of FORD MOTOR COMPANY

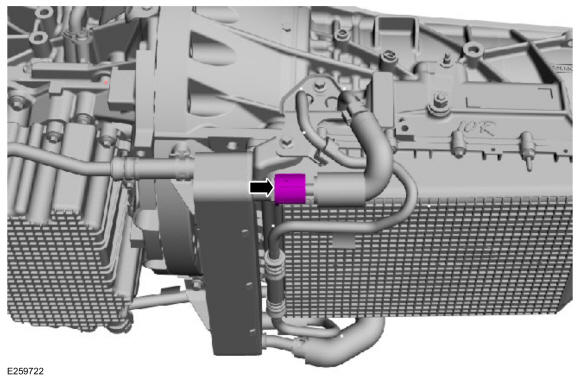

  8. Install the transmission fluid cooler inlet tube secondary latch.
    GFD544152Courtesy of FORD MOTOR COMPANY

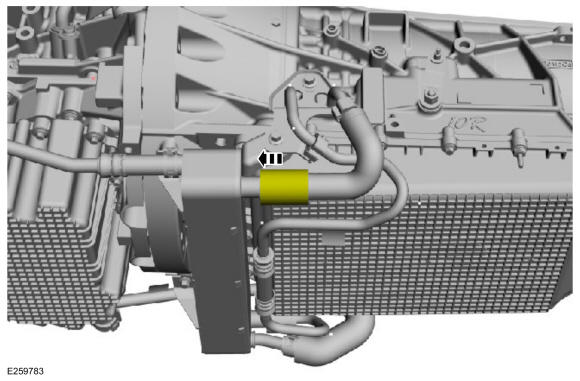

  9. Position the transmission fluid cooler inlet tube heat shield.
    GFD544163Courtesy of FORD MOTOR COMPANY
  10. Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
  11. Check the engine coolant level and adjust as necessary. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding 3.5L EcoBoost .

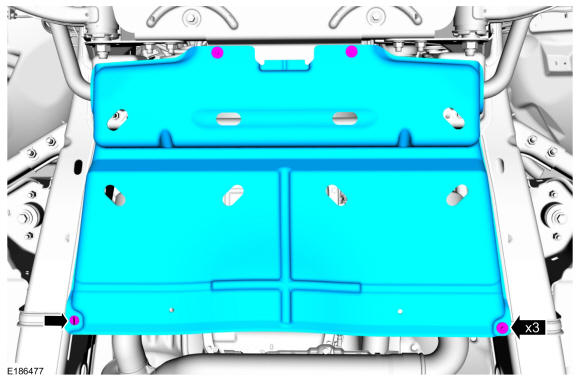

  12. Install the shield, the retainer and the bolts.

    Torque

    : 71 lb.in (8 Nm)

GFD543354Courtesy of FORD MOTOR COMPANY
