Module Communications Network

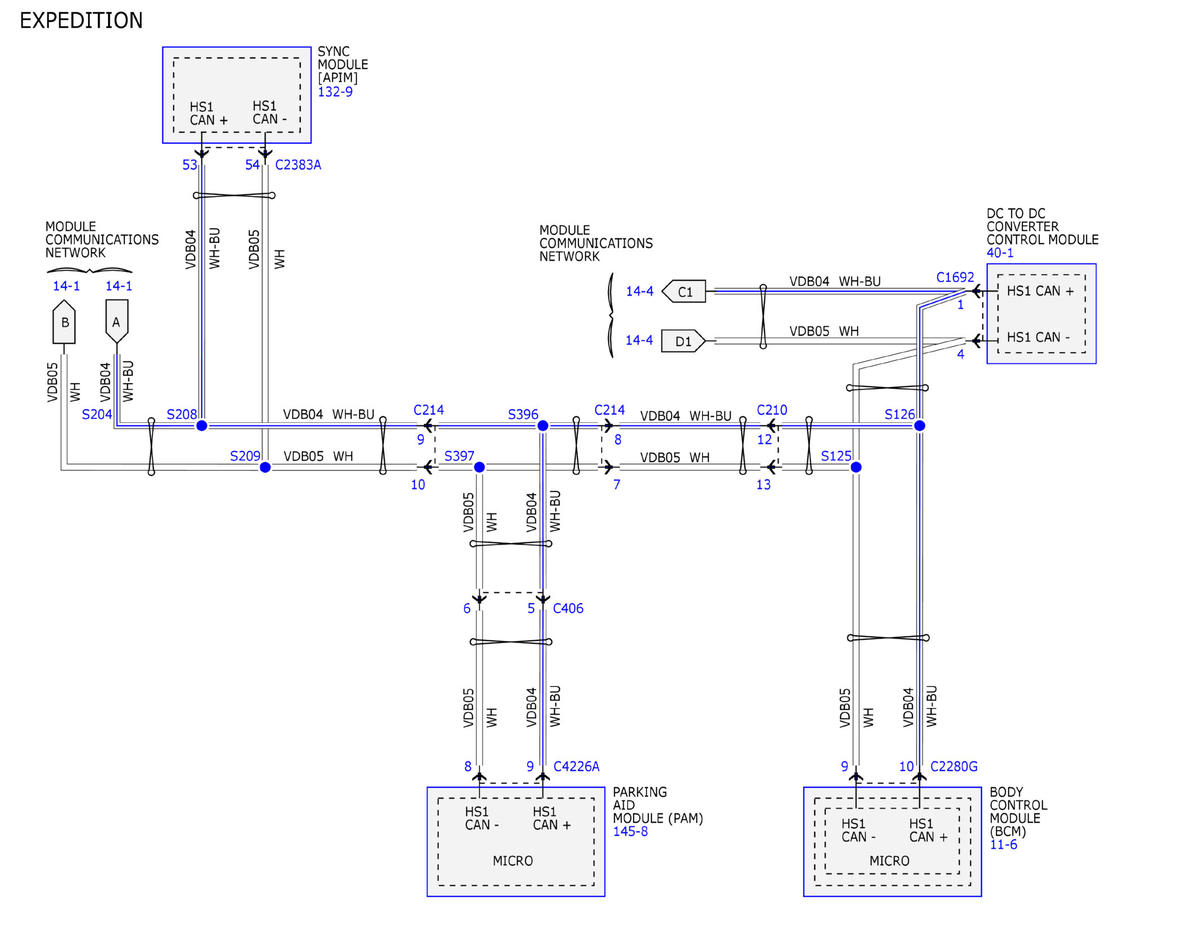

Fig 1: Module Communications Network Wiring Diagram (1 Of 20)

GFDWR115695

Courtesy of FORD MOTOR COMPANY

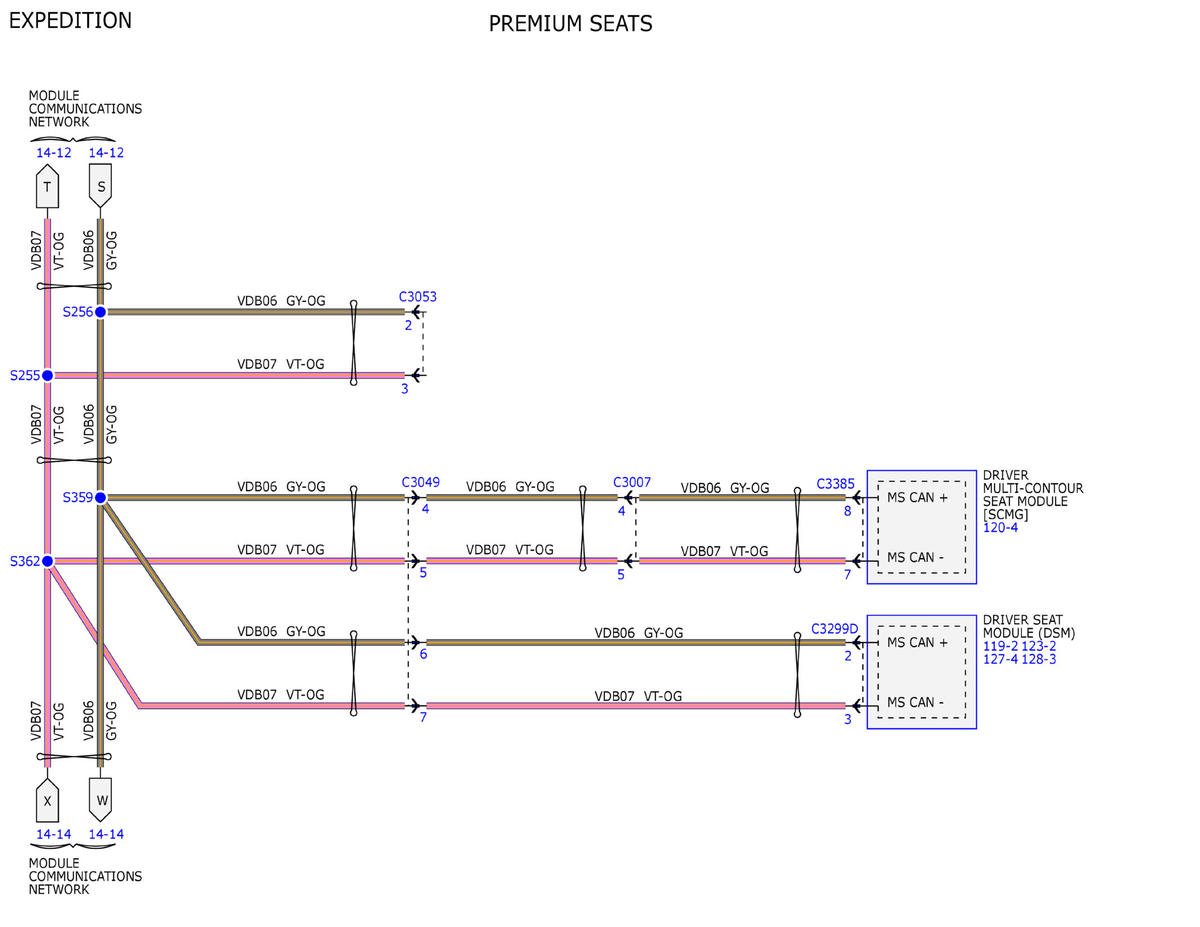

Fig 2: Module Communications Network Wiring Diagram (2 Of 20)

GFDWR115696

Courtesy of FORD MOTOR COMPANY

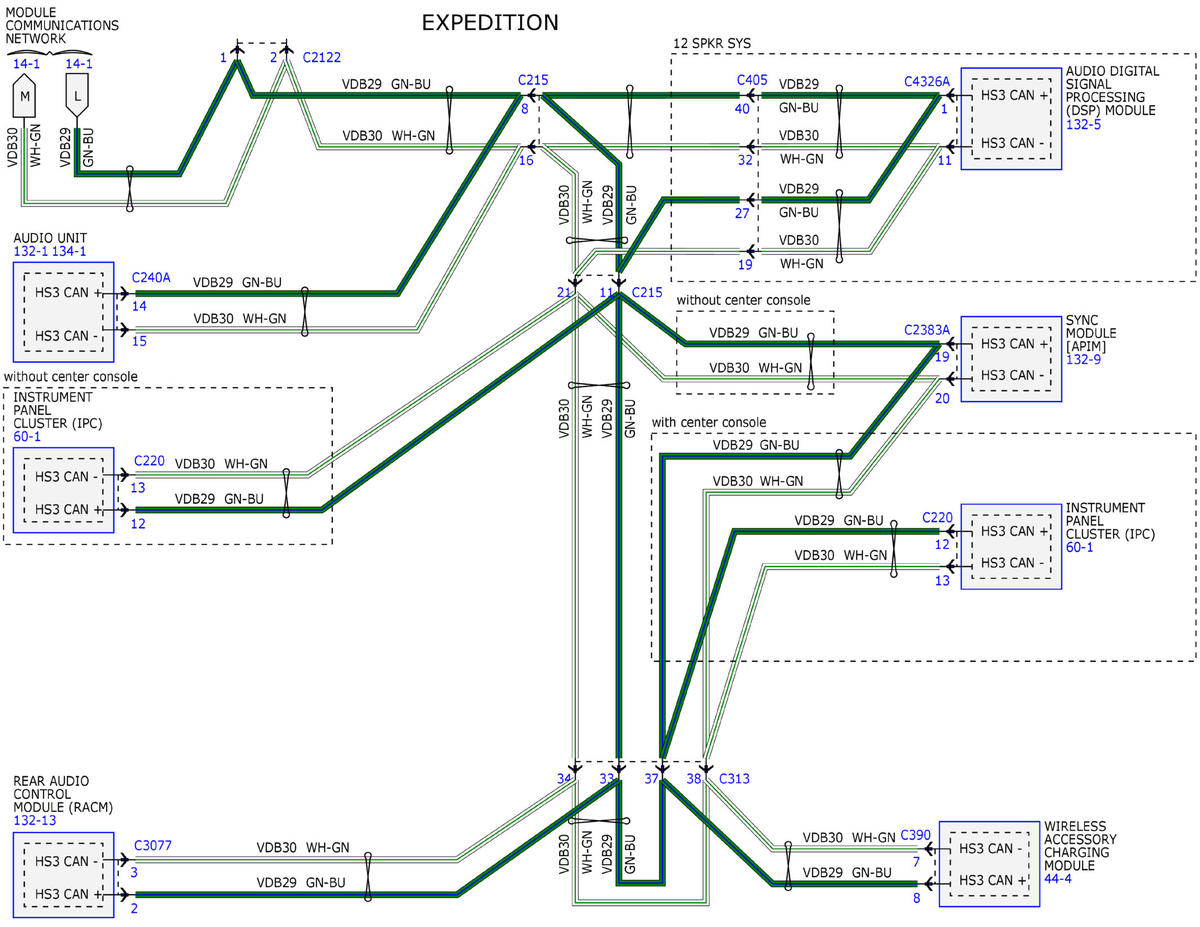

Fig 3: Module Communications Network Wiring Diagram (3 Of 20)

GFDWR115697

Courtesy of FORD MOTOR COMPANY

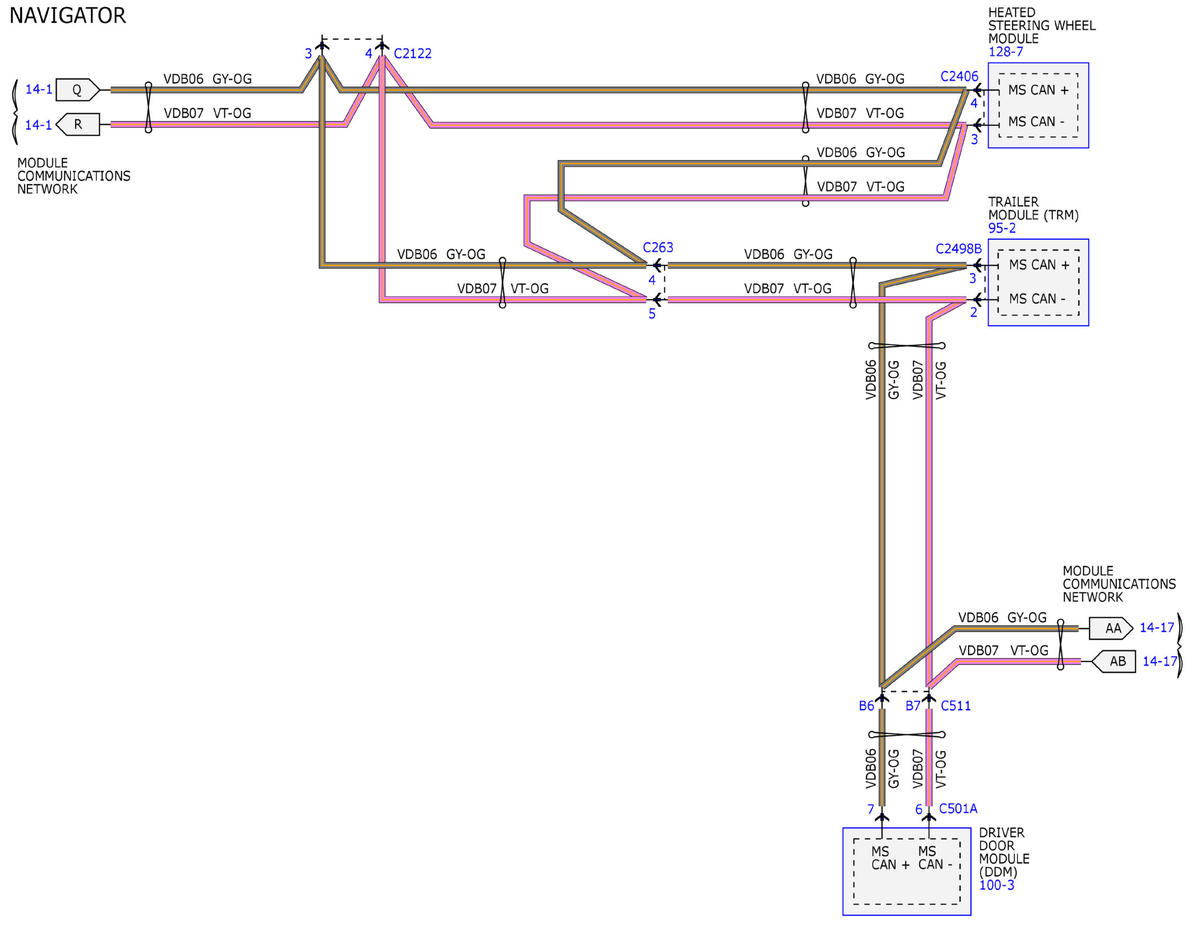

Fig 4: Module Communications Network Wiring Diagram (4 Of 20)

GFDWR115698

Courtesy of FORD MOTOR COMPANY

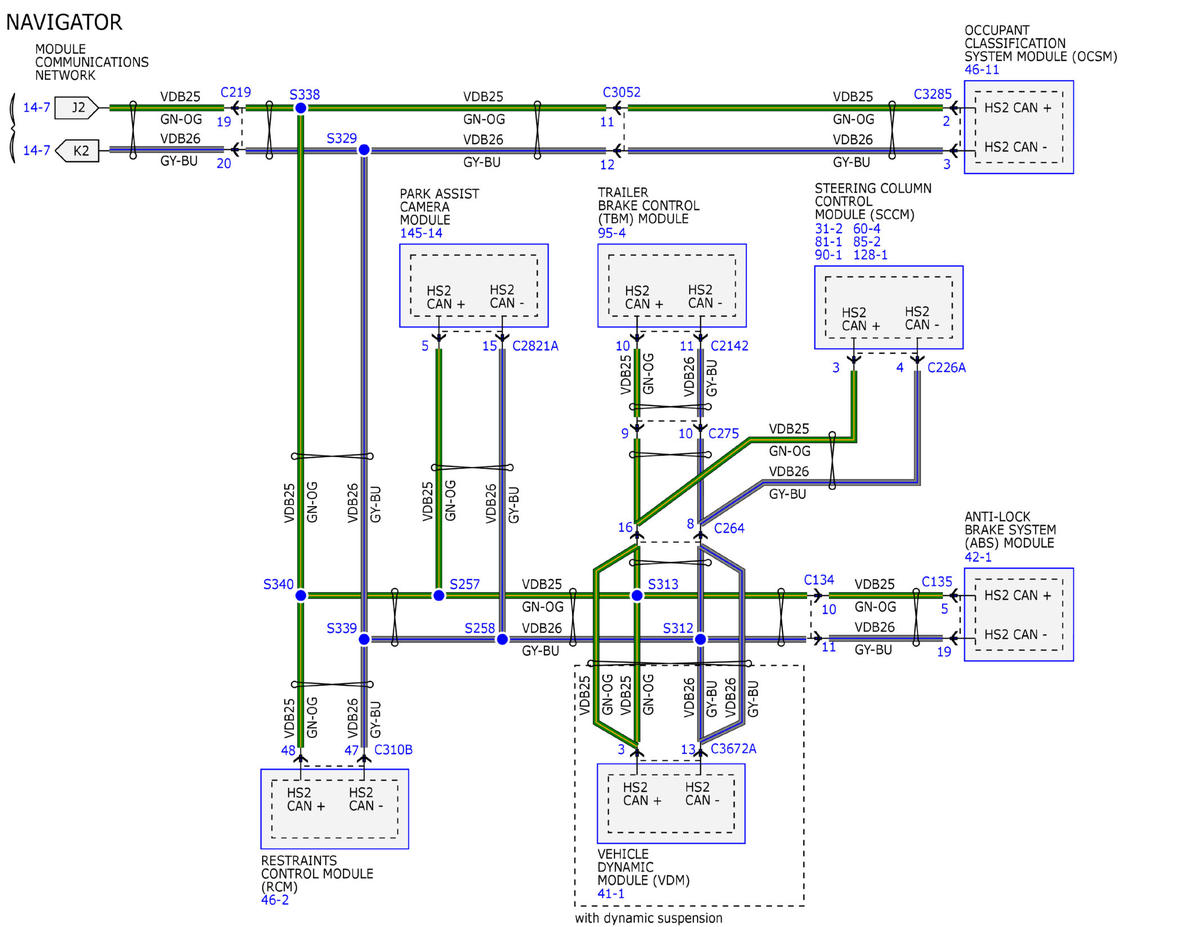

Fig 5: Module Communications Network Wiring Diagram (5 Of 20)

GFDWR115699

Courtesy of FORD MOTOR COMPANY

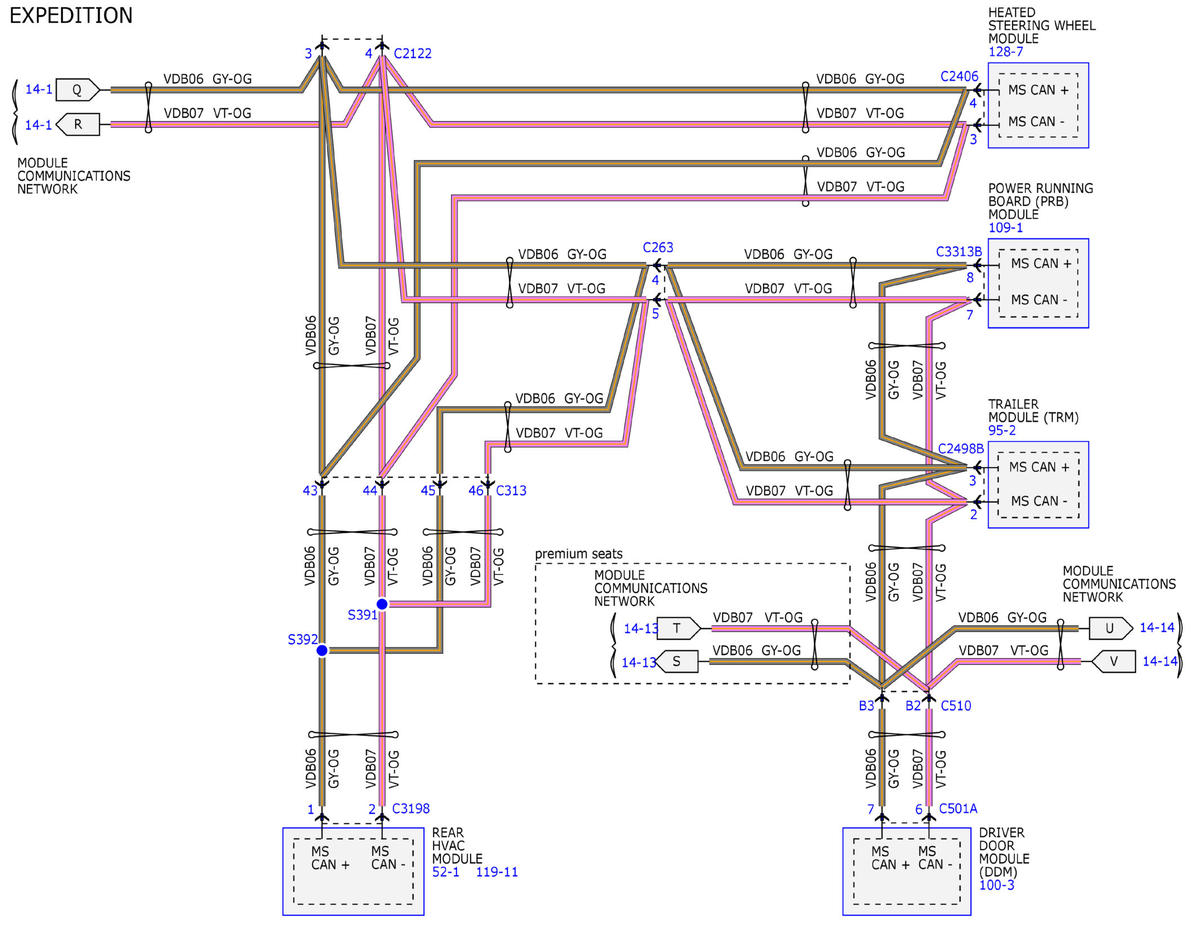

Fig 6: Module Communications Network Wiring Diagram (6 Of 20)

GFDWR115700

Courtesy of FORD MOTOR COMPANY

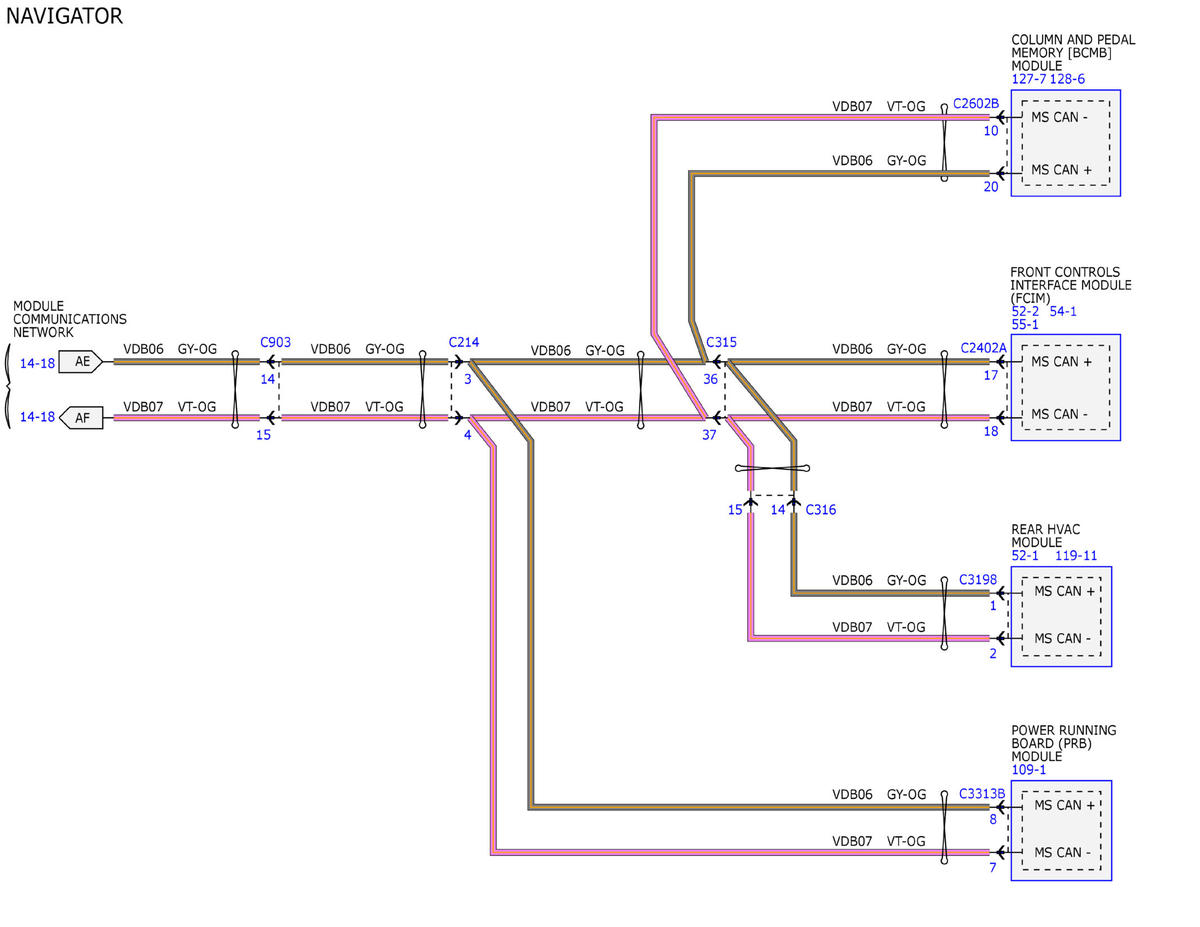

Fig 7: Module Communications Network Wiring Diagram (7 Of 20)

GFDWR115701

Courtesy of FORD MOTOR COMPANY

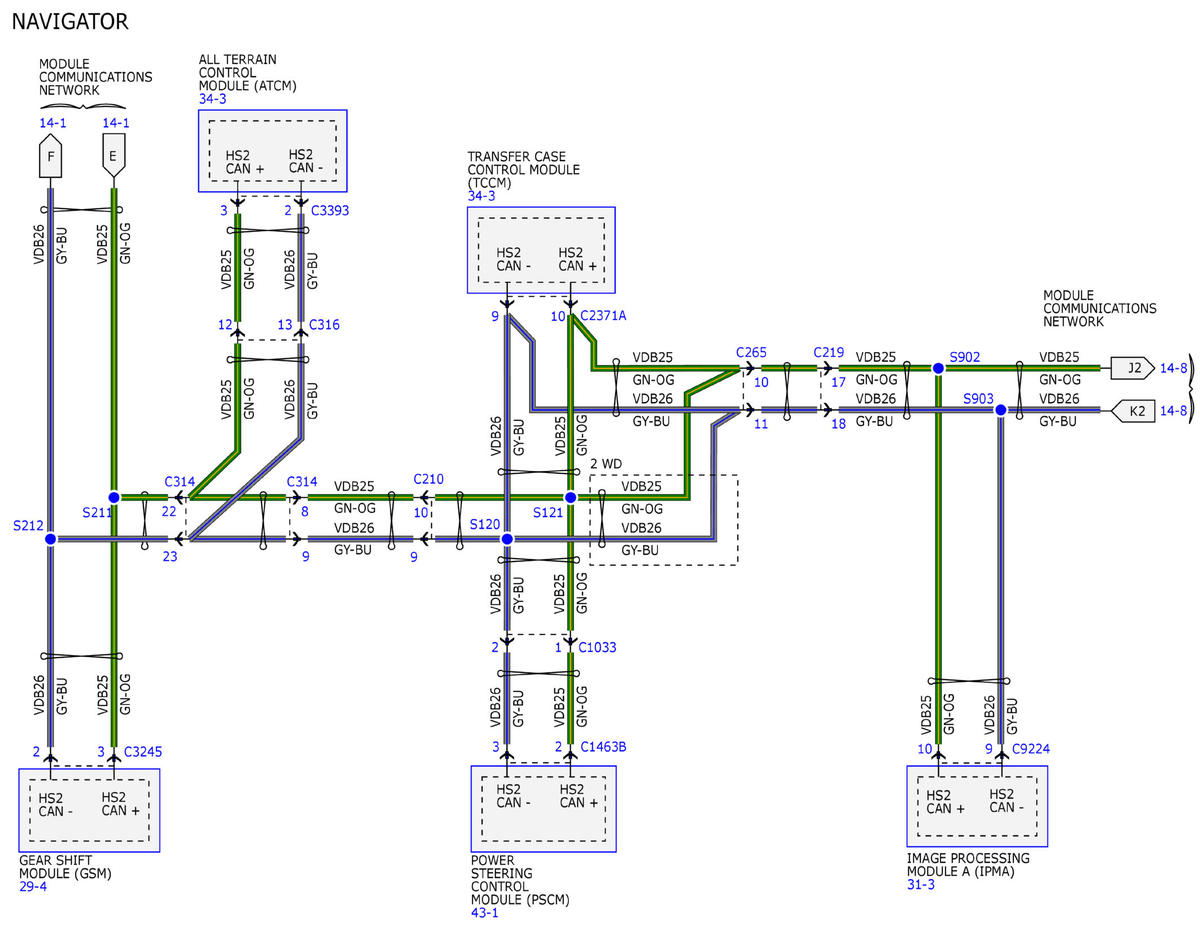

Fig 8: Module Communications Network Wiring Diagram (8 Of 20)

GFDWR115702

Courtesy of FORD MOTOR COMPANY

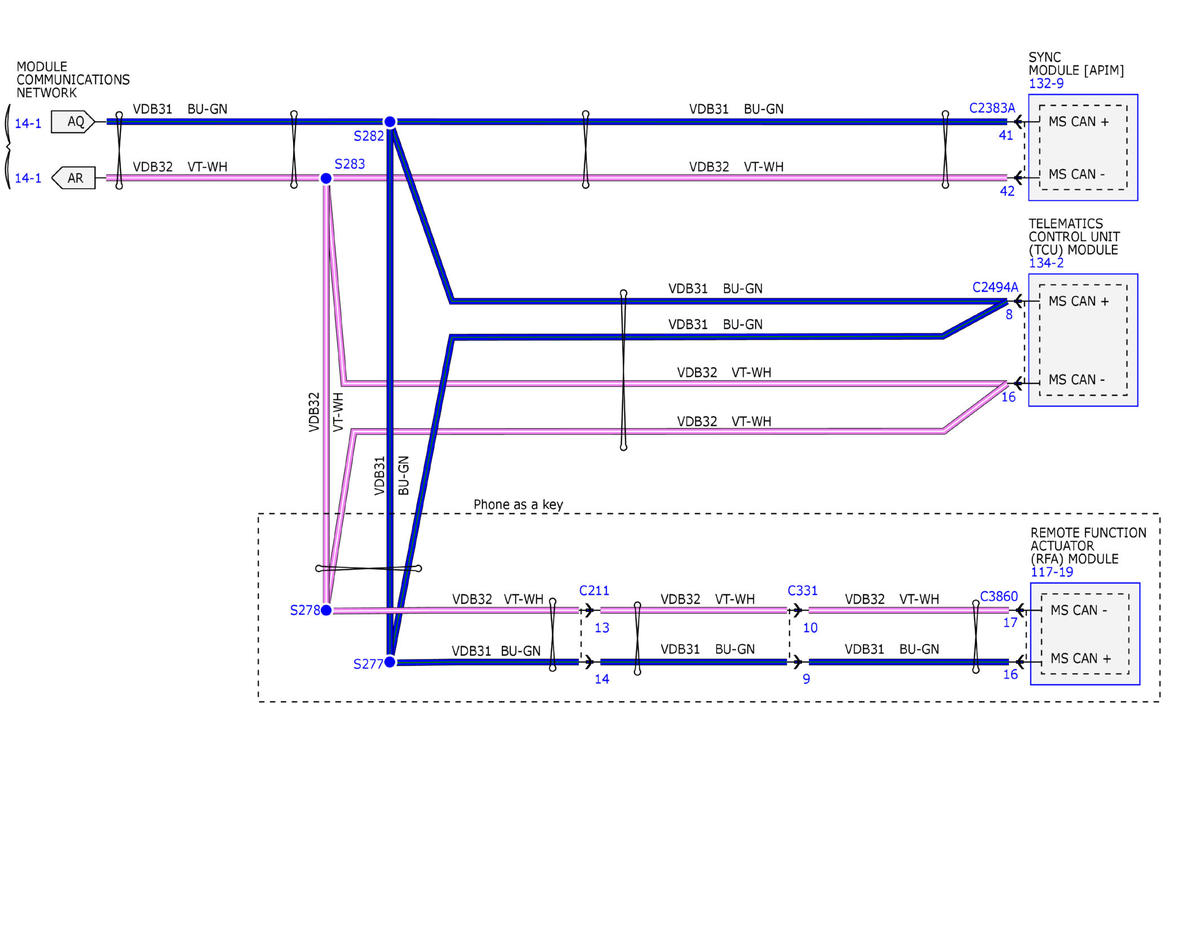

Fig 9: Module Communications Network Wiring Diagram (9 Of 20)

GFDWR115703

Courtesy of FORD MOTOR COMPANY

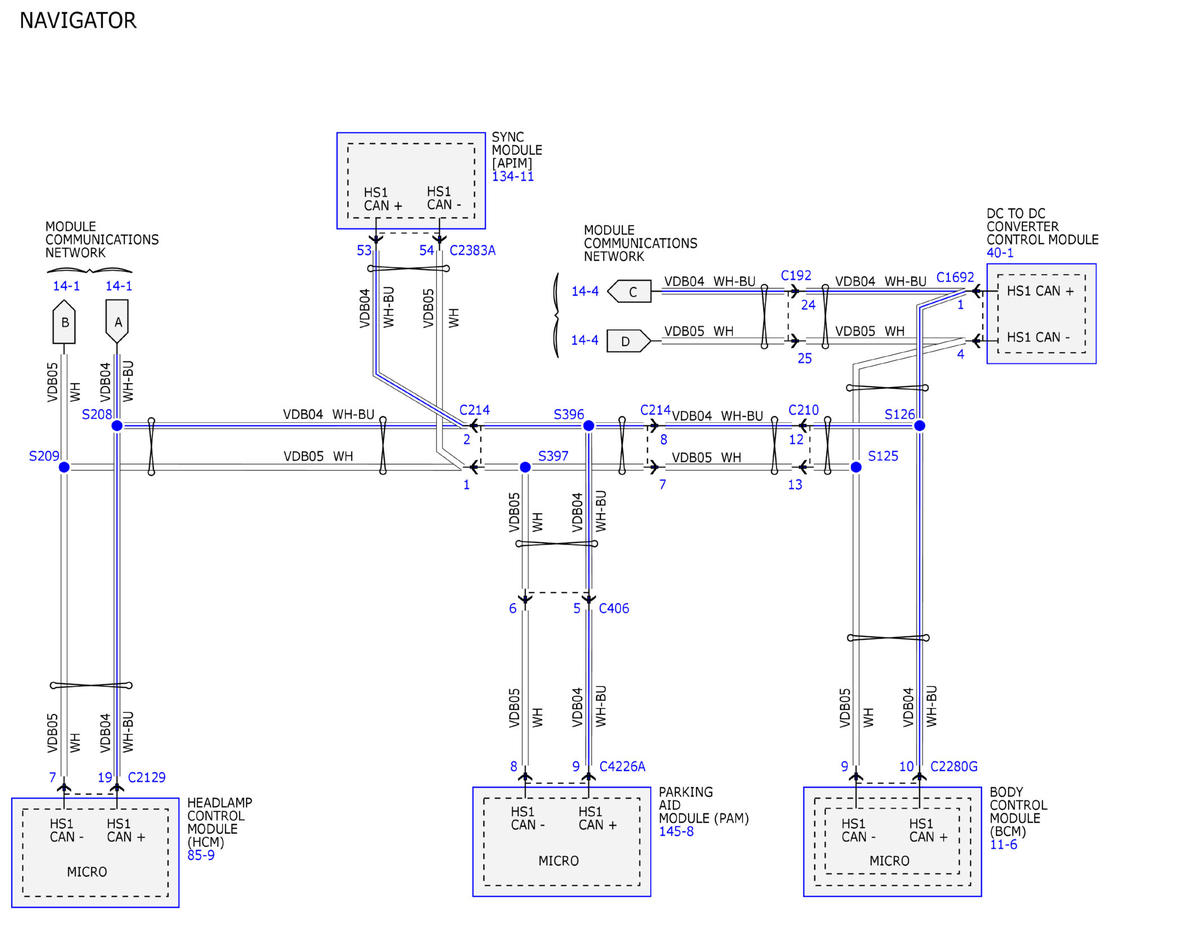

Fig 10: Module Communications Network Wiring Diagram (10 Of 20)

GFDWR115704

Courtesy of FORD MOTOR COMPANY

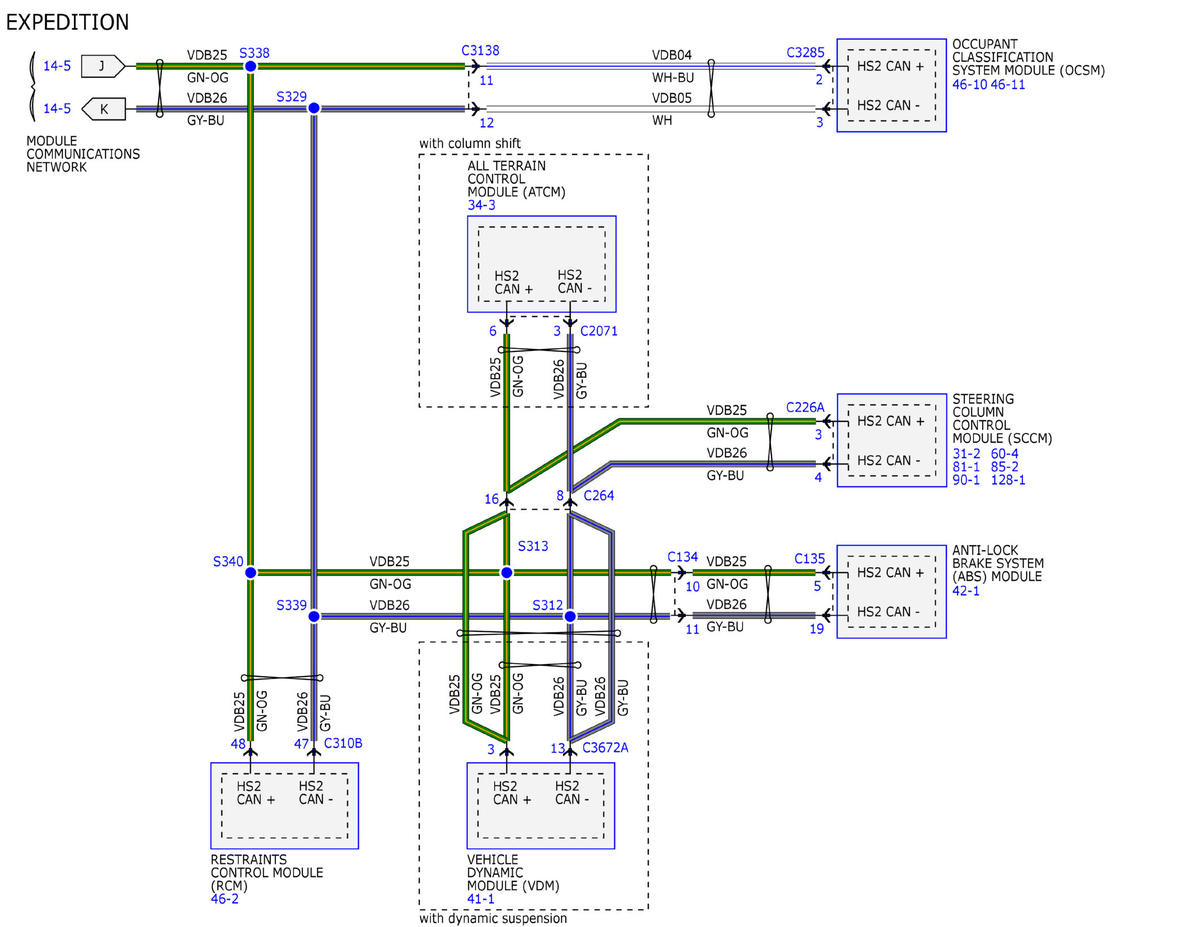

Fig 11: Module Communications Network Wiring Diagram (11 Of 20)

GFDWR115705

Courtesy of FORD MOTOR COMPANY

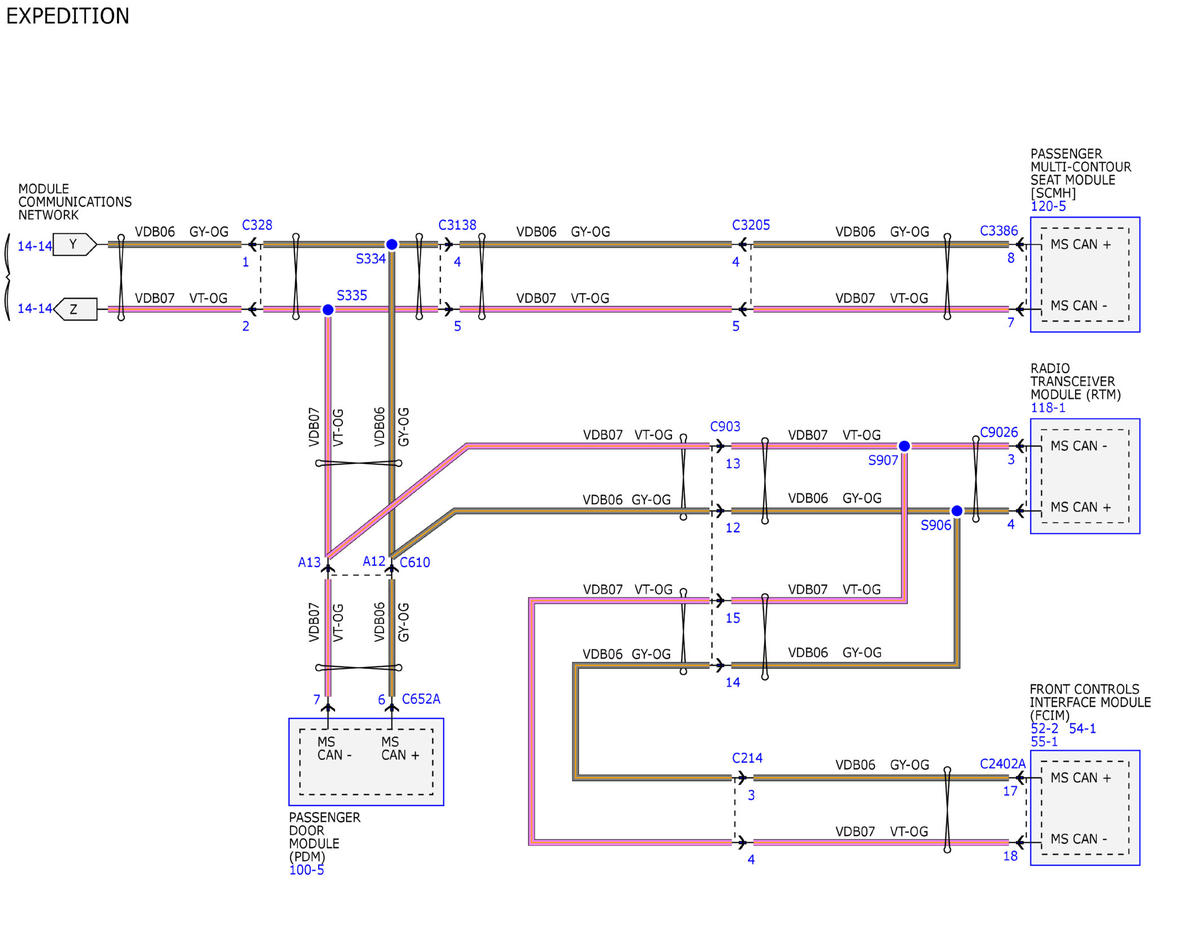

Fig 12: Module Communications Network Wiring Diagram (12 Of 20)

GFDWR115706

Courtesy of FORD MOTOR COMPANY

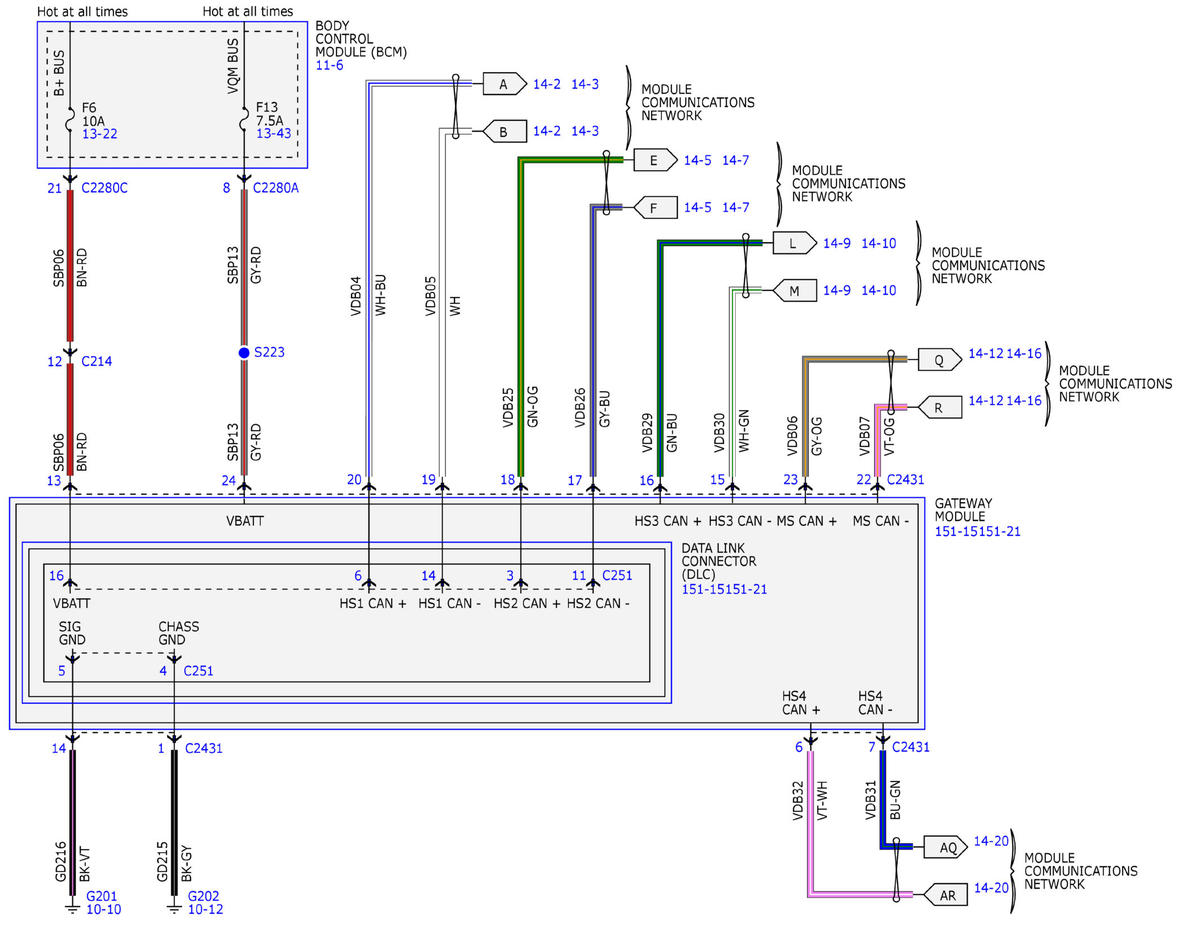

Fig 13: Module Communications Network Wiring Diagram (13 Of 20)

GFDWR115707

Courtesy of FORD MOTOR COMPANY

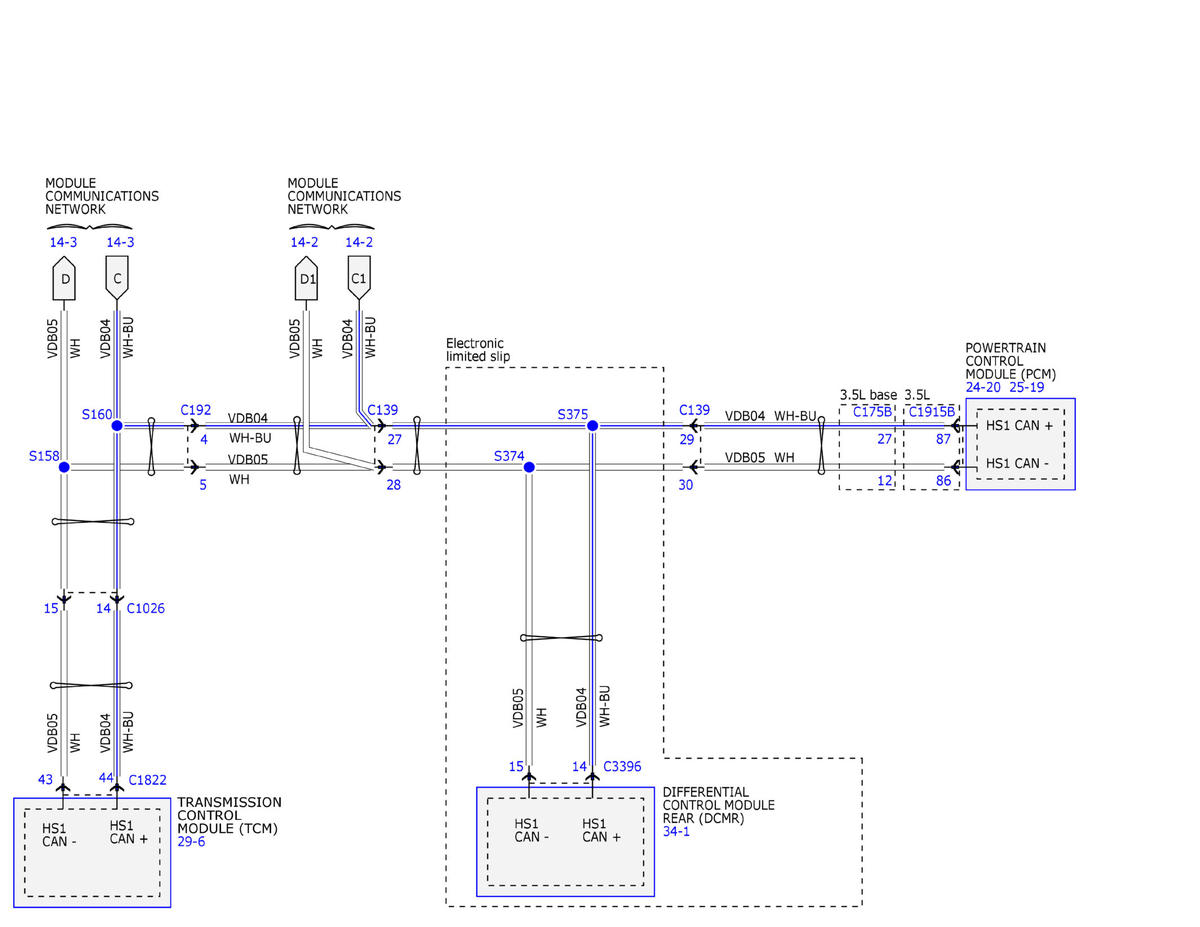

Fig 14: Module Communications Network Wiring Diagram (14 Of 20)

GFDWR115708

Courtesy of FORD MOTOR COMPANY

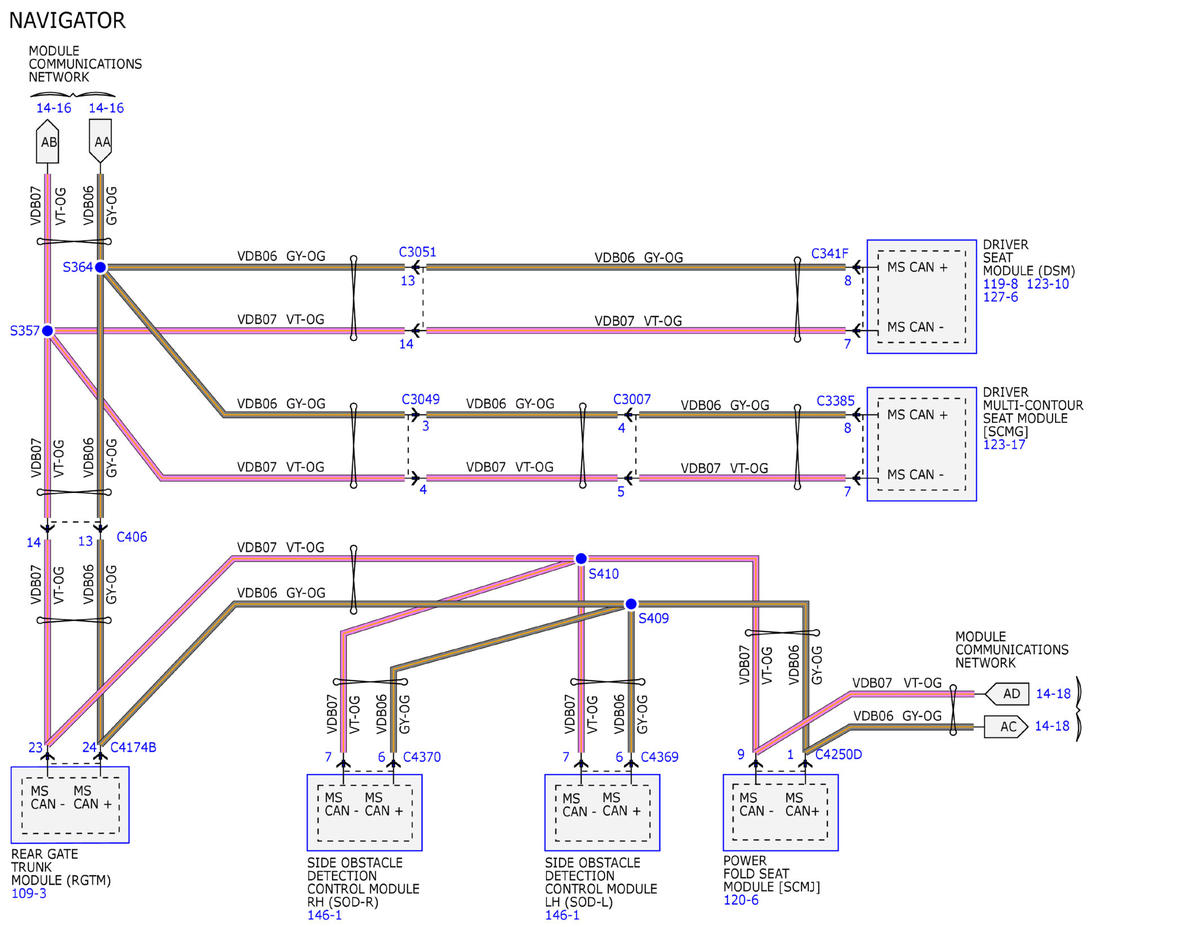

Fig 15: Module Communications Network Wiring Diagram (15 Of 20)

GFDWR115709

Courtesy of FORD MOTOR COMPANY

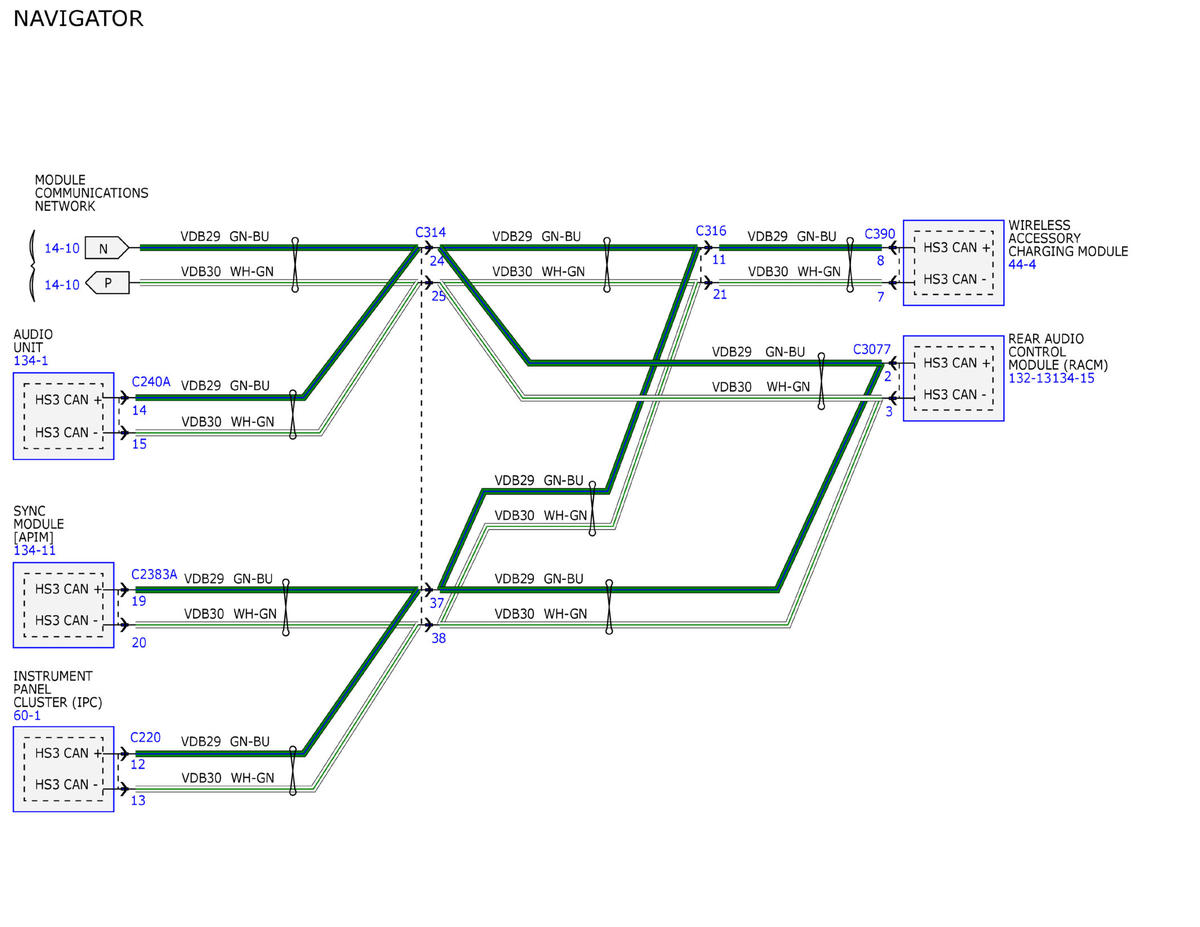

Fig 16: Module Communications Network Wiring Diagram (16 Of 20)

GFDWR115710

Courtesy of FORD MOTOR COMPANY

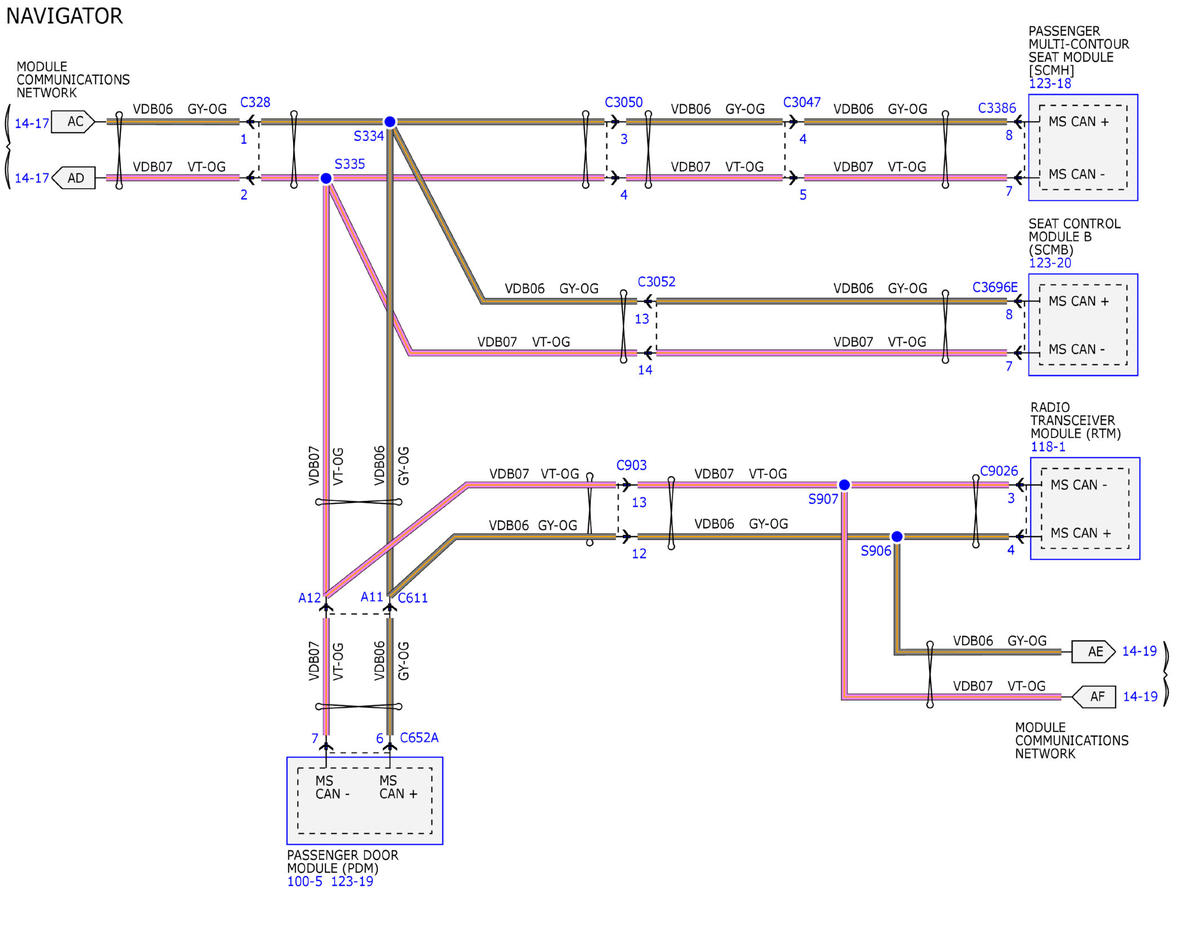

Fig 17: Module Communications Network Wiring Diagram (17 Of 20)

GFDWR115711

Courtesy of FORD MOTOR COMPANY

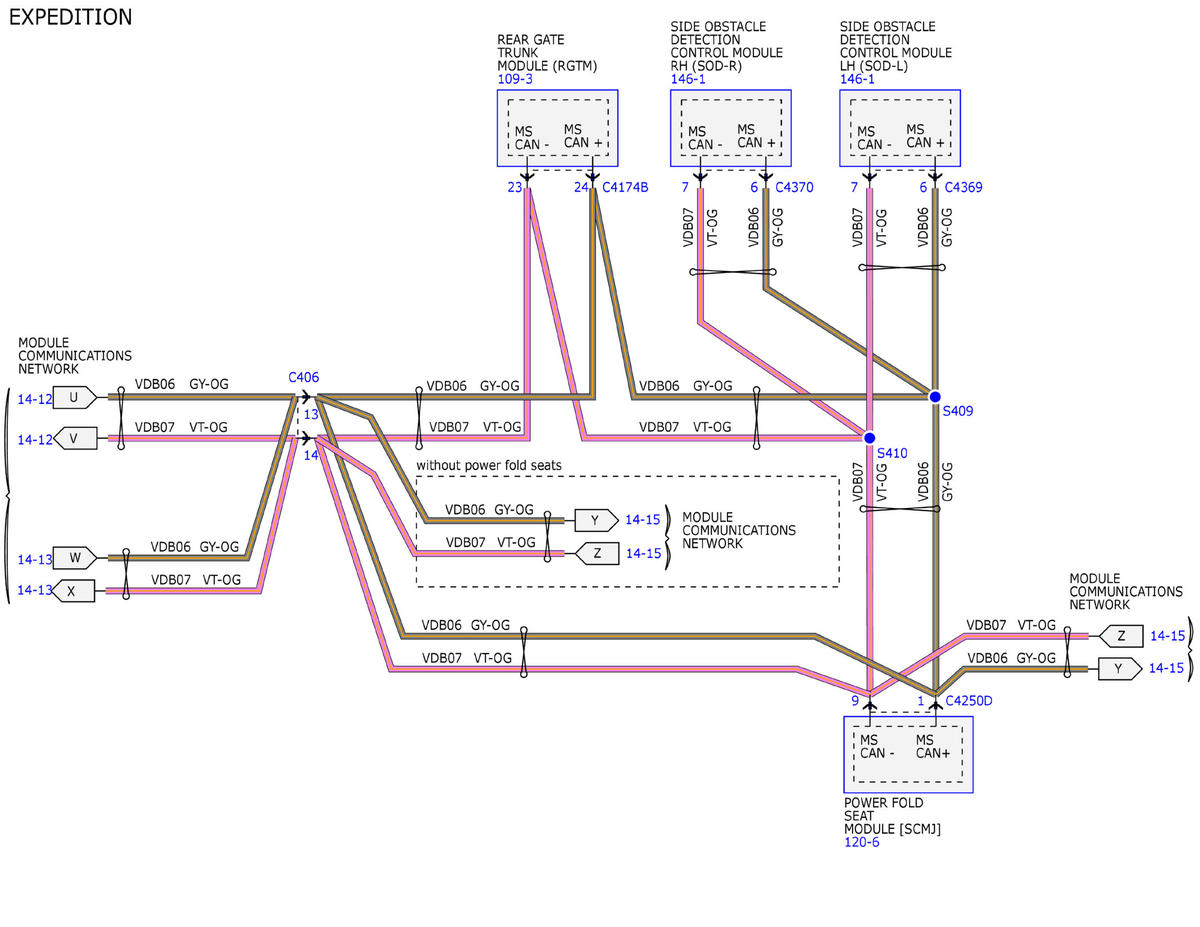

Fig 18: Module Communications Network Wiring Diagram (18 Of 20)

GFDWR115712

Courtesy of FORD MOTOR COMPANY

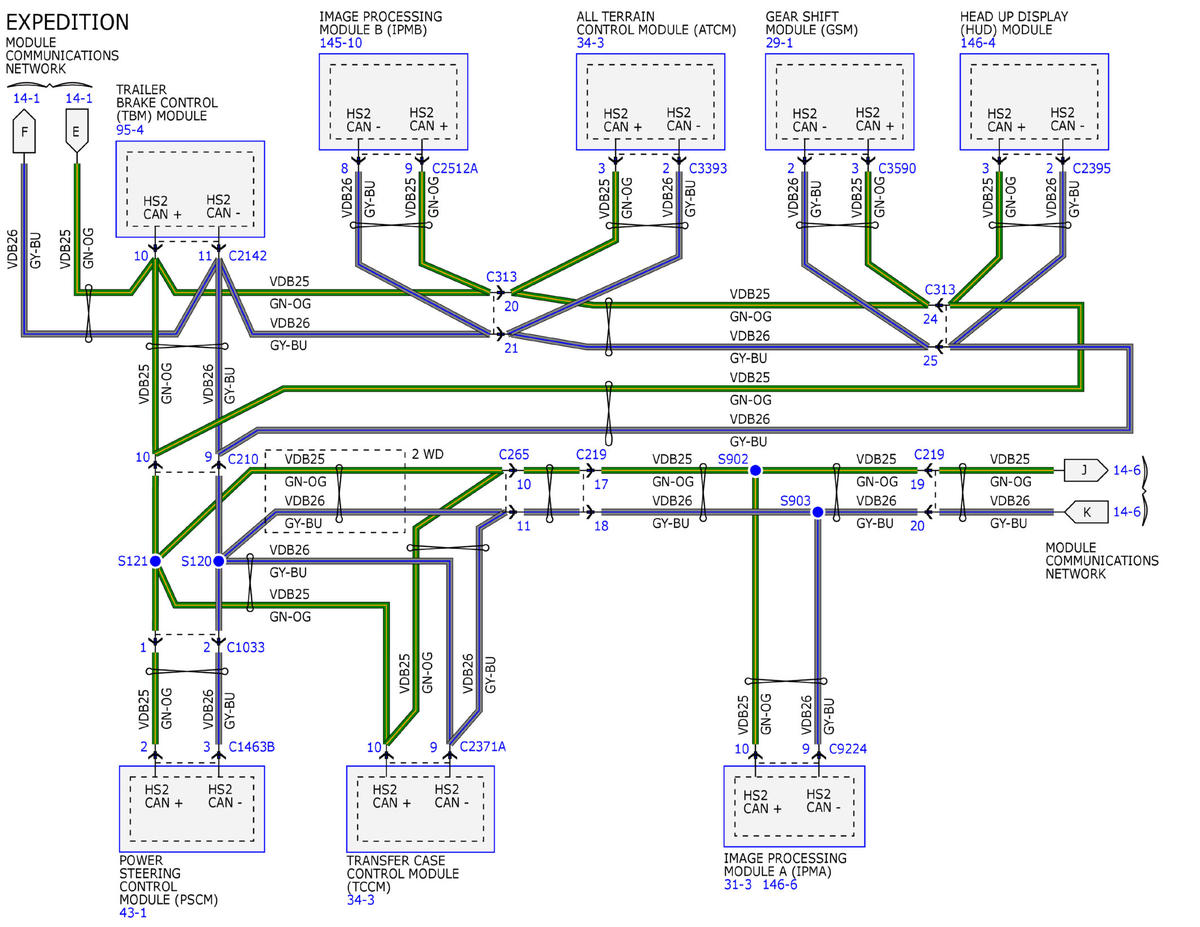

Fig 19: Module Communications Network Wiring Diagram (19 Of 20)

GFDWR115713

Courtesy of FORD MOTOR COMPANY

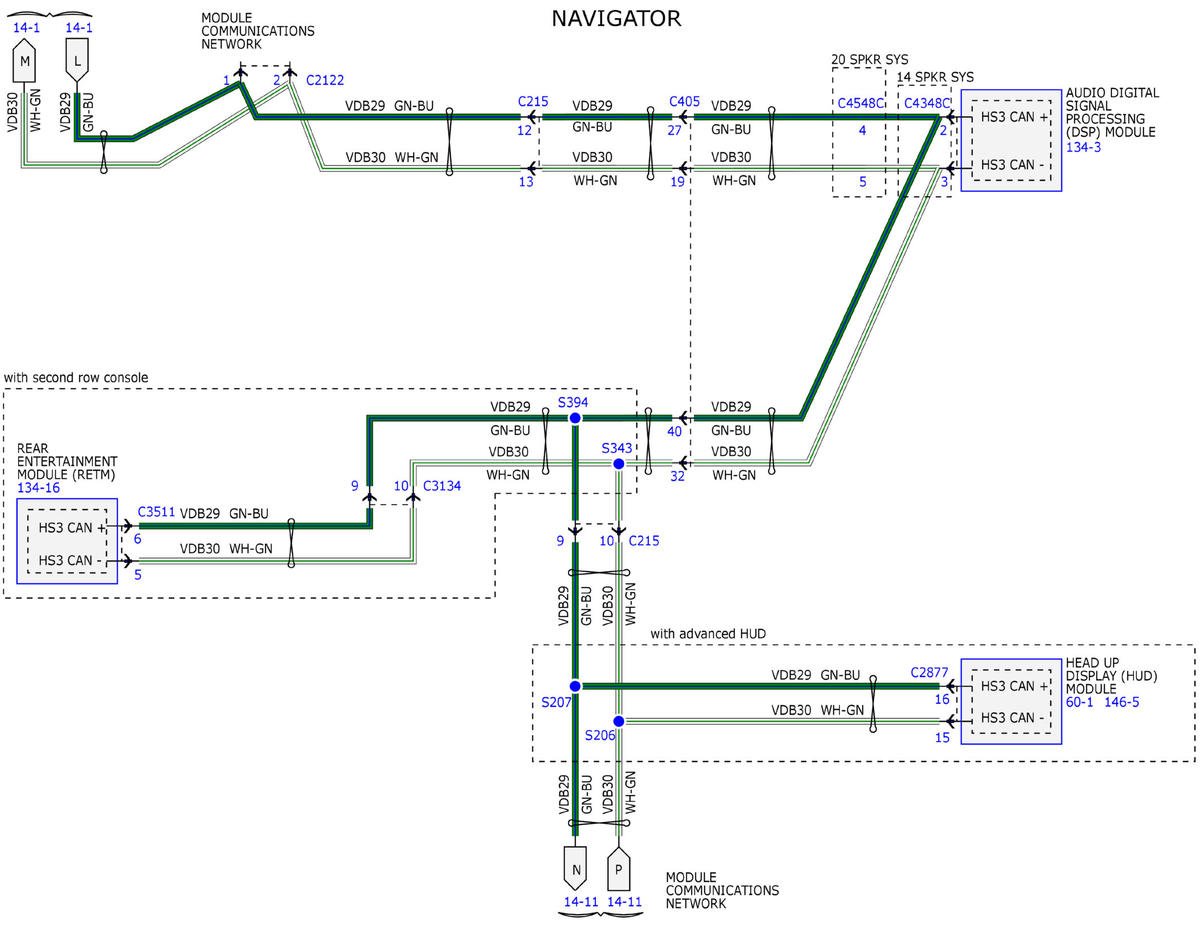

Fig 20: Module Communications Network Wiring Diagram (20 Of 20)

GFDWR115714

Courtesy of FORD MOTOR COMPANY
