Instrument Panel Upper Section: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the instrument panel. Refer to: Instrument Panel .

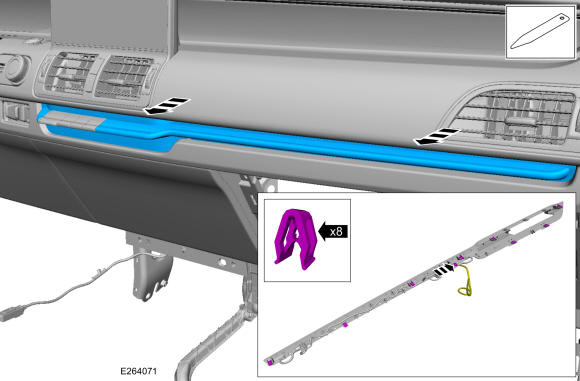

Release the clips and remove the center finish panel.
- Disconnect the electrical connector.
  Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

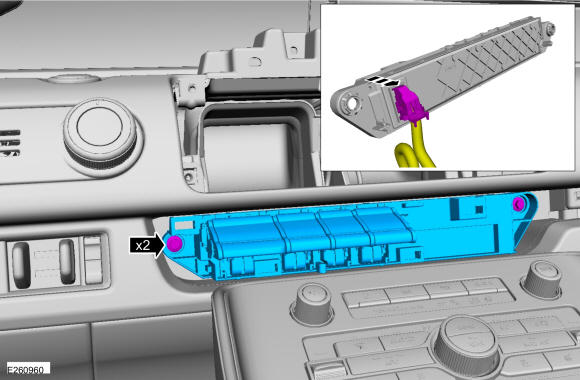

Release the clips and remove the shifter module.
- Disconnect the electrical connector.
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

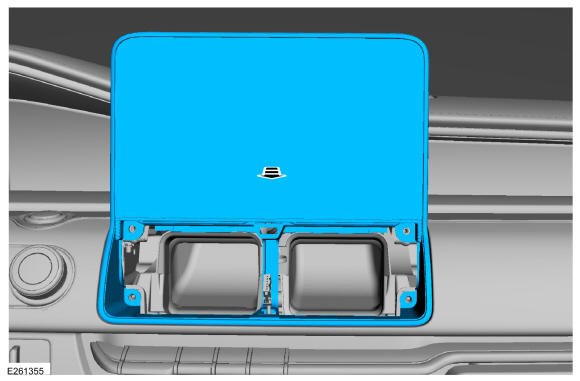

Release the clips and remove the FDIM rear cover.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the bolt and disconnect the LVDS connector.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

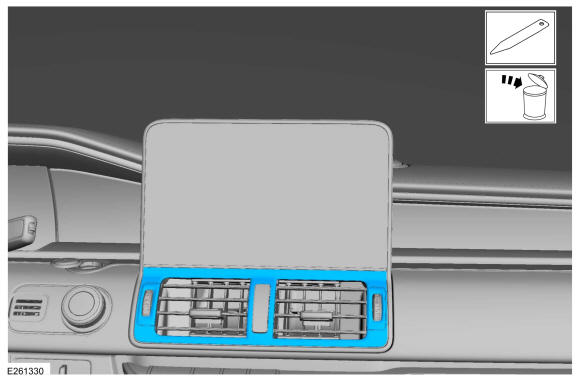

Remove the center register trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

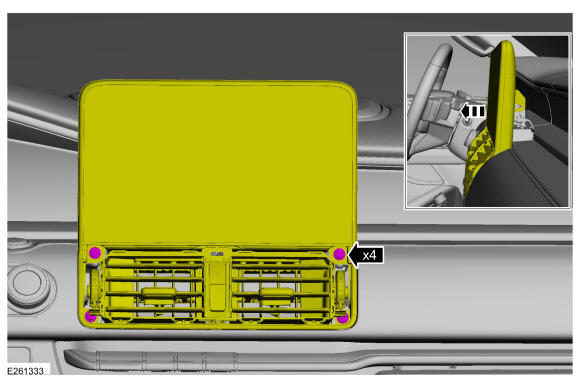

Remove the bolts and position the FDIM and center register forward as an assembly.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
On both top and bottom of the center register. Release the clips and position the FDIM off the center register.

Courtesy of FORD MOTOR COMPANY

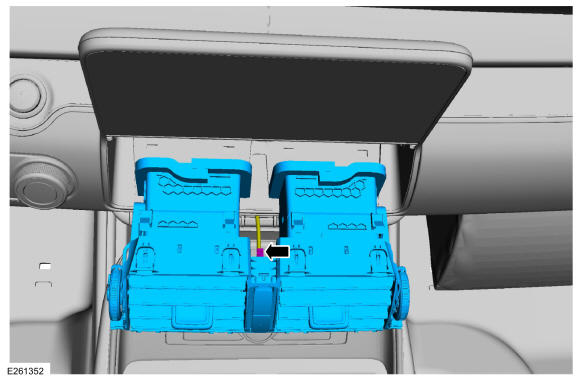

Disconnect the electrical connector and remove the center register.

Courtesy of FORD MOTOR COMPANY
Remove the FDIM.

Courtesy of FORD MOTOR COMPANY

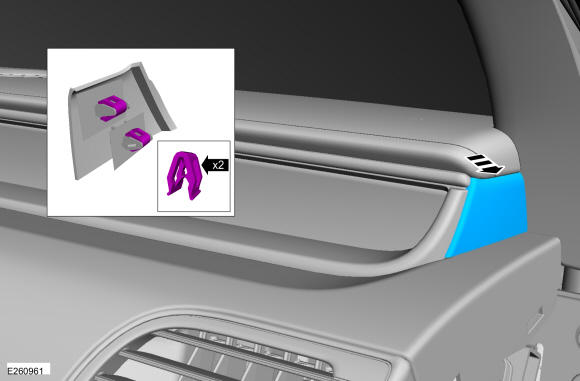

Release the clips and remove the upper RH instrument panel finish panel.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the instrument panel center finish panel.
- Disconnect the electrical connectors.
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

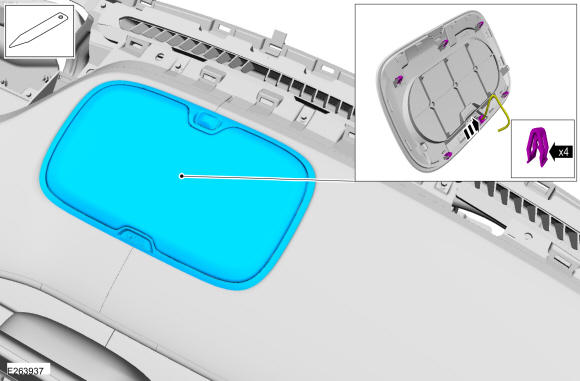

Working from the front to the rear, release the clips and remove the instrument panel speaker grille.
- Disconnect the electrical connector.
  Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

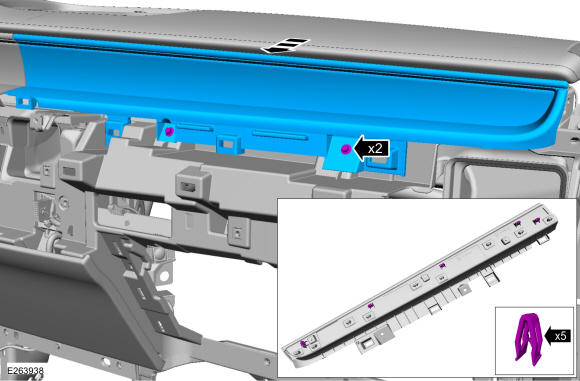

Remove the bolts release the clips and remove the upper RH finish panel.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

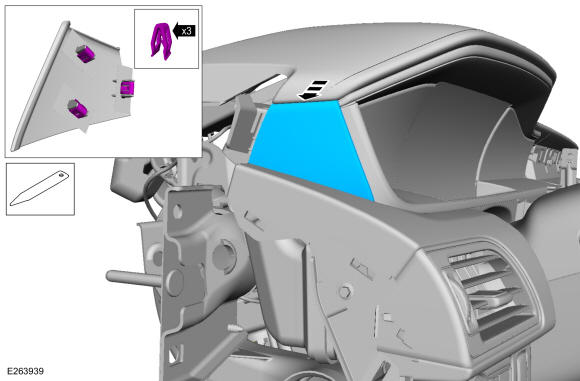

Release the clips and remove the upper LH instrument panel finish panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

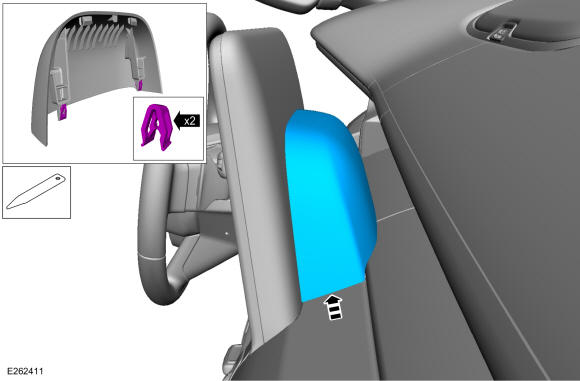

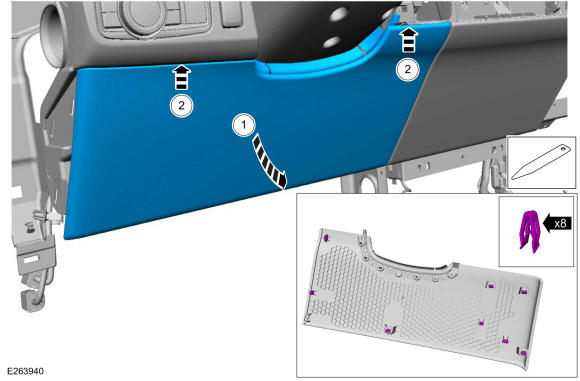

Release the clips and remove the lower LH trim panel.
1. Rotate from the bottom.
2. Lift upward.
  Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

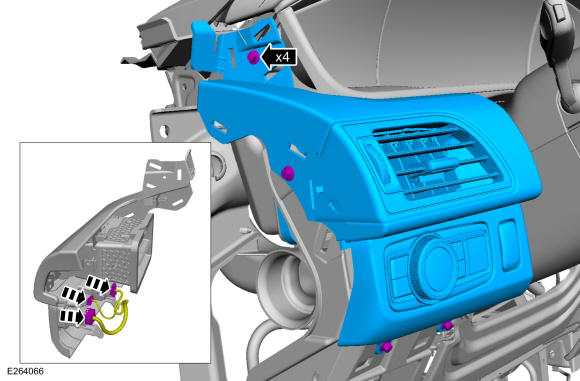

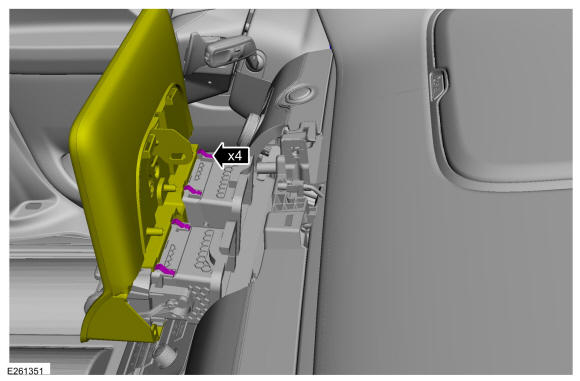

Remove the bolts and the LH trim panel.
- Disconnect the electrical connectors.
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

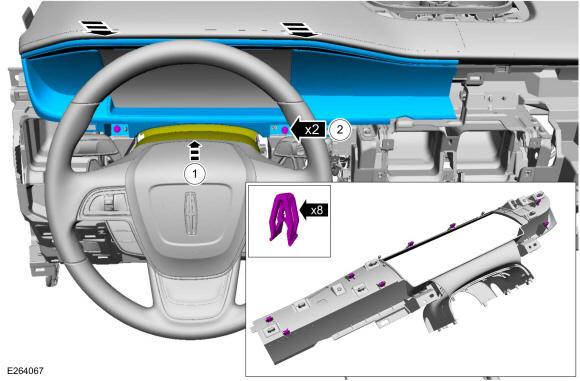

1. Position upwards the steering column upper steering column shroud.
2. Remove the bolts, release the clips and remove the instrument cluster trim panel.
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

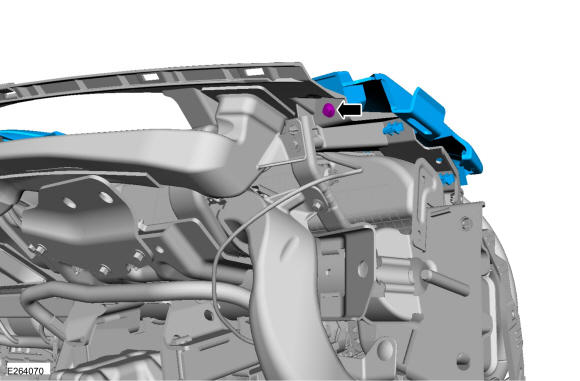

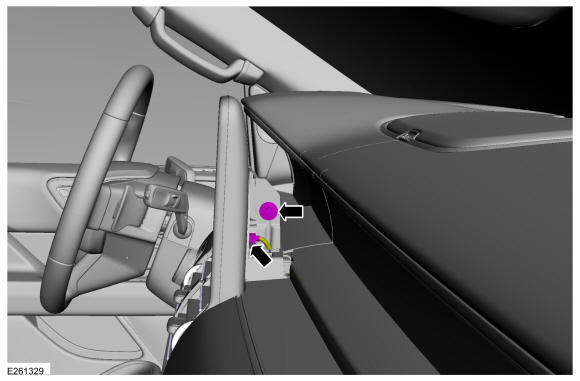

Remove the LH instrument panel bolt.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

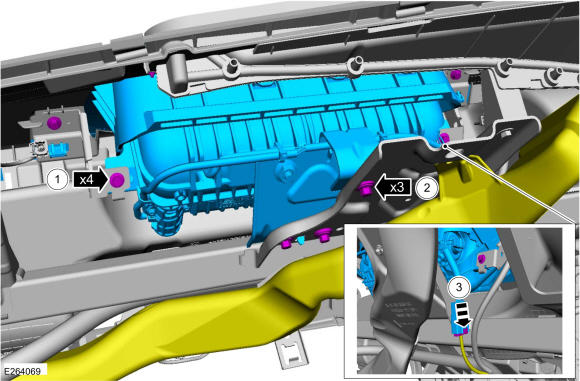

1. Remove the bracket bolts.
  Torque

  : 22 lb.in (2.5 Nm)
2. Remove the airbag to in-vehicle crossbeam bolts.
  Torque

  : 80 lb.in (9 Nm)
3. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

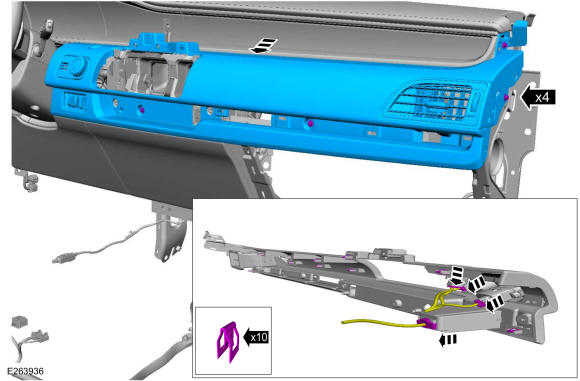

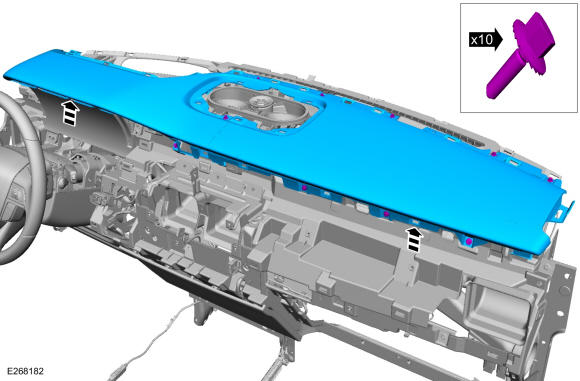

Remove the bolts, release the clips and remove the instrument panel upper section.
Torque

: 22 lb.in (2.5 Nm)

GFD545842

Courtesy of FORD MOTOR COMPANY
