Instrument Panel Upper Section: Installation

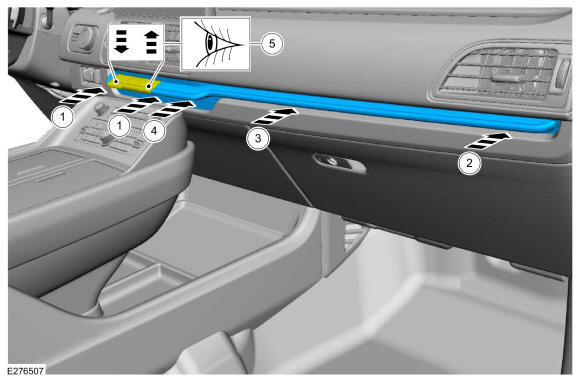

  1. To install, reverse the removal procedure.
    1. Seat both sides of the instrument panel center finish panel around the GSM.
    2. Seat the passenger side of the instrument panel center finish panel.
    3. Seat the center right of the instrument panel center finish panel.
    4. Seat the center left of the instrument panel center finish panel.
    5. Verify the GSM P (Park) and D (Drive) buttons move without interference.
GFD545830Courtesy of FORD MOTOR COMPANY
