Liftgate Window Latch: Removal

  1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .
  2. Open the liftgate window glass.
    GFD545756Courtesy of FORD MOTOR COMPANY

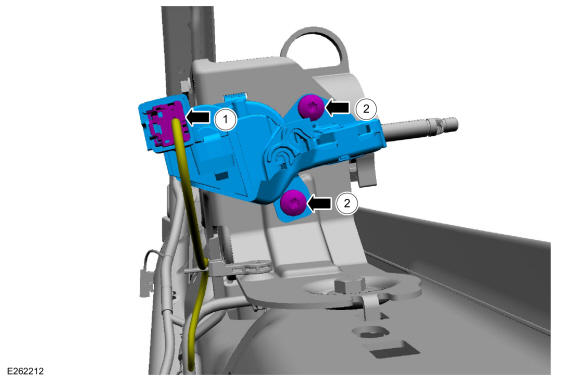

  3. Remove the liftgate window latch.

    1. Disconnect the liftgate window latch electrical connector.
    2. Remove the bolts and the liftgate window latch.

GFD545911Courtesy of FORD MOTOR COMPANY
