Liftgate Release Switch: Removal

  1. Remove the reversing lamp assembly. Refer to: Reversing Lamp .

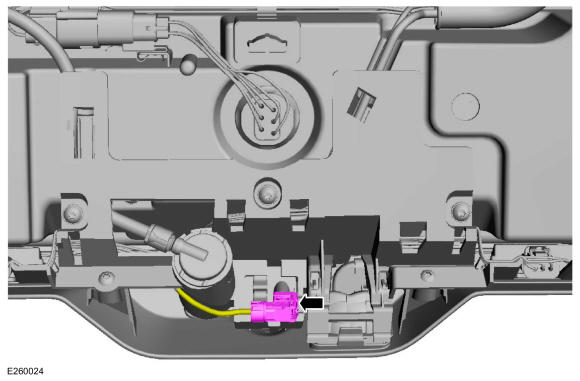

  2. Disconnect the coaxial cable connector.
    GFD544762Courtesy of FORD MOTOR COMPANY

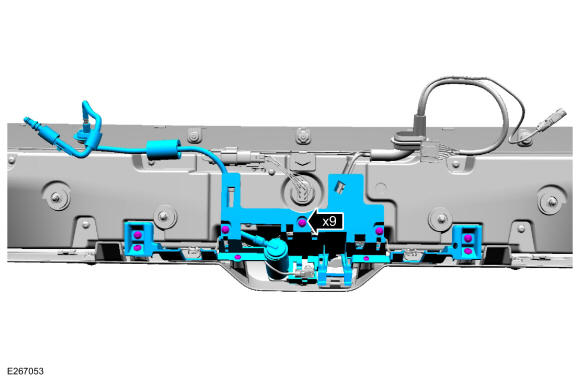

  3. Remove the screws and the bracket.
    GFD545907Courtesy of FORD MOTOR COMPANY

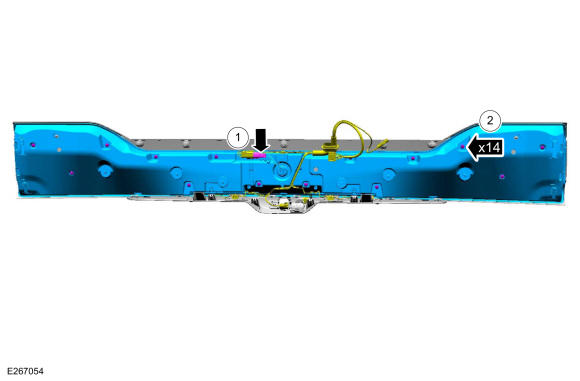

  4. Remove the rear housing.

    1. Disconnect the electrical connector and position the wiring harness aside.
    2. Remove the screws and the rear housing from the reversing lamp assembly.

    GFD545908Courtesy of FORD MOTOR COMPANY

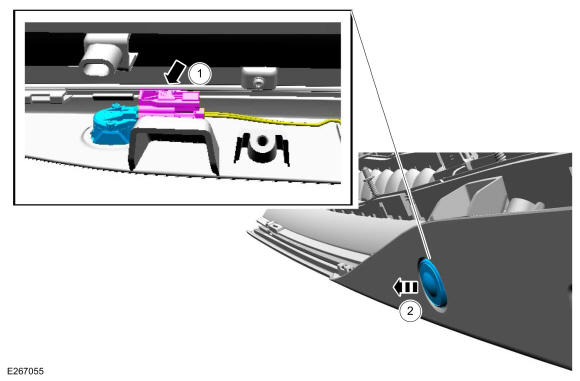

  5. Remove the liftgate release switch.

    1. Disconnect the liftgate release switch electrical connector.
    2. Remove the liftgate release switch.

GFD545909Courtesy of FORD MOTOR COMPANY
