Approach Detection Antenna: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .

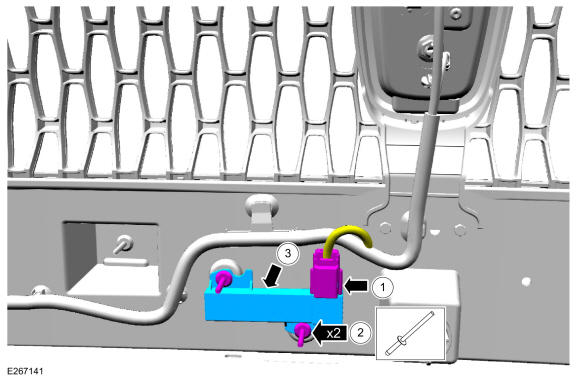

  2. Remove the approach detection antenna.

    1. Disconnect the approach detection antenna electrical connector.
    2. Remove the rivets from the approach detection antenna. Use the General Equipment: Rivet Gun
    3. Remove the approach detection antenna.

GFD545858Courtesy of FORD MOTOR COMPANY
