Wiper Linkage Assembly: Installation

  1. To install, reverse the removal procedure.
  2. Tighten the wiper linkage and motor assembly bolts in the order shown in illustration.

    Torque

    : 71 lb.in (8 Nm)

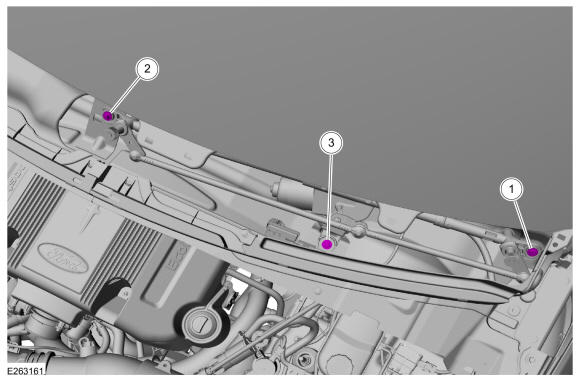

Fig 1: Wiper Linkage and Motor Assembly Bolts Tightening Sequence
GFD545965Courtesy of FORD MOTOR COMPANY
