Rear Temperature Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Lower the headliner. Refer to: Headliner - Lowering .
    1. Disconnect the rear temperature sensor electrical connector.
    2. Release the tabs.
    3. Remove the rear temperature sensor from the rear microphone bracket.

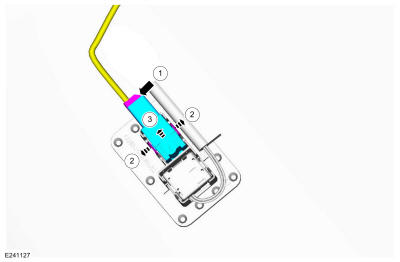

GFD544696Courtesy of FORD MOTOR COMPANY
