Removal And Installation: Fender: Installation

WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

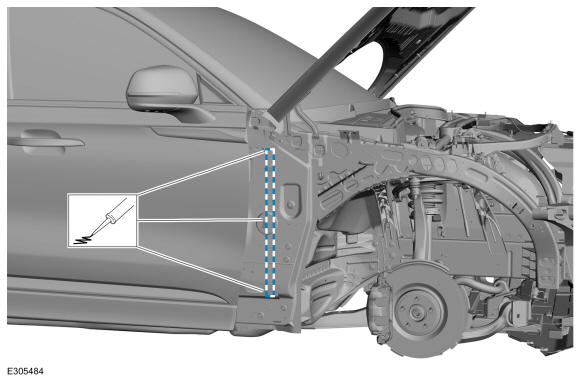

  2. Before installation of the fender, apply a continuous stream of Fusor® 121 material along the entire span of the baffle-body attachment area.

    Material: Flexible Foam Repair / 3M™ 08463, LORD Fusor® 121

GFD534311Courtesy of FORD MOTOR COMPANY
