Electronic Engine Controls - Component Location

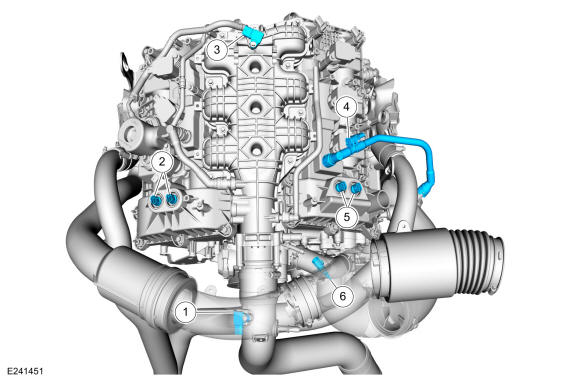

Electronic Engine Controls - Front
| Item | Description |
|---|---|
| 1 | Turbocharger Boost Pressure (TCBP) Charge Air Cooler (CAC) Temperature sensor |
| 2 | Right hand VCT oil control solenoids |
| 3 | MAPT sensor |
| 4 | Crankcase Pressure Sensor |
| 5 | Left hand VCT oil control solenoids |
| 6 | IAT sensor |

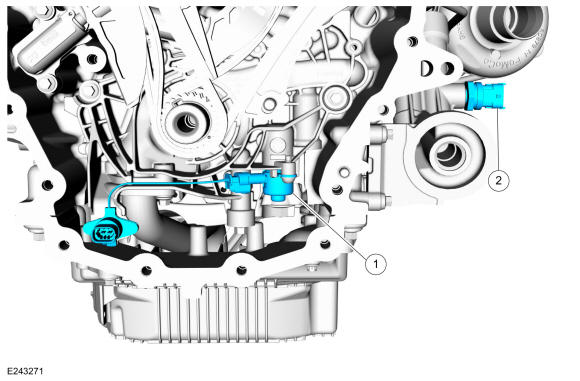

Electronic Engine Controls - Front
| Item | Description |
|---|---|
| 1 | Oil Pressure Control Solenoid |
| 2 | EOP sensor |

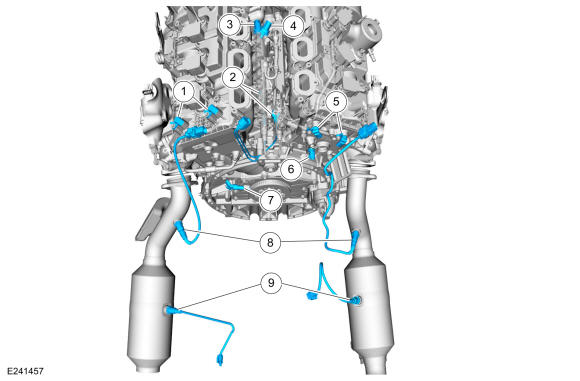

Electronic Engine Controls - Rear
| Item | Description |
|---|---|
| 1 | Left hand CMP sensors |
| 2 | KS |
| 3 | FRP sensor |
| 4 | FRP and temperature sensor |
| 5 | Right hand CMP sensors |
| 6 | CHT sensor |
| 7 | CKP sensor |
| 8 | HO2S |
| 9 | Catalyst monitor sensors |

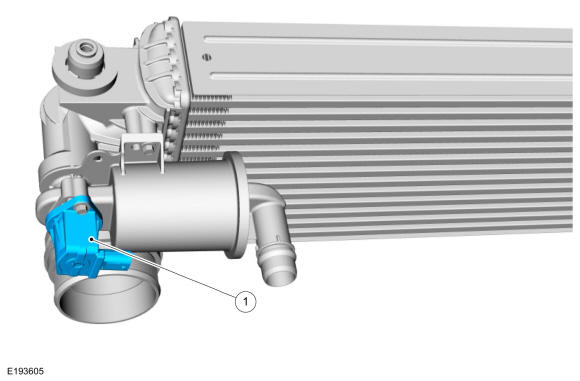

Turbocharger Bypass Valve
| Item | Description |
|---|---|
| 1 | TC bypass valve |

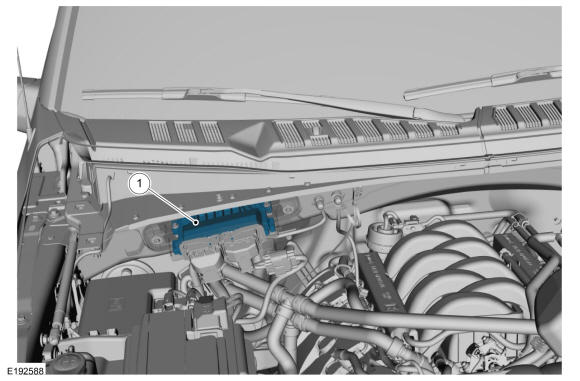

Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |
