Connector End View C310A - Restraints Control Module (RCM)

Connector: Description Color Harness Base Part # Service Pigtail
C310A RESTRAINTS CONTROL MODULE (RCM) 14401 part# N/A Not Available

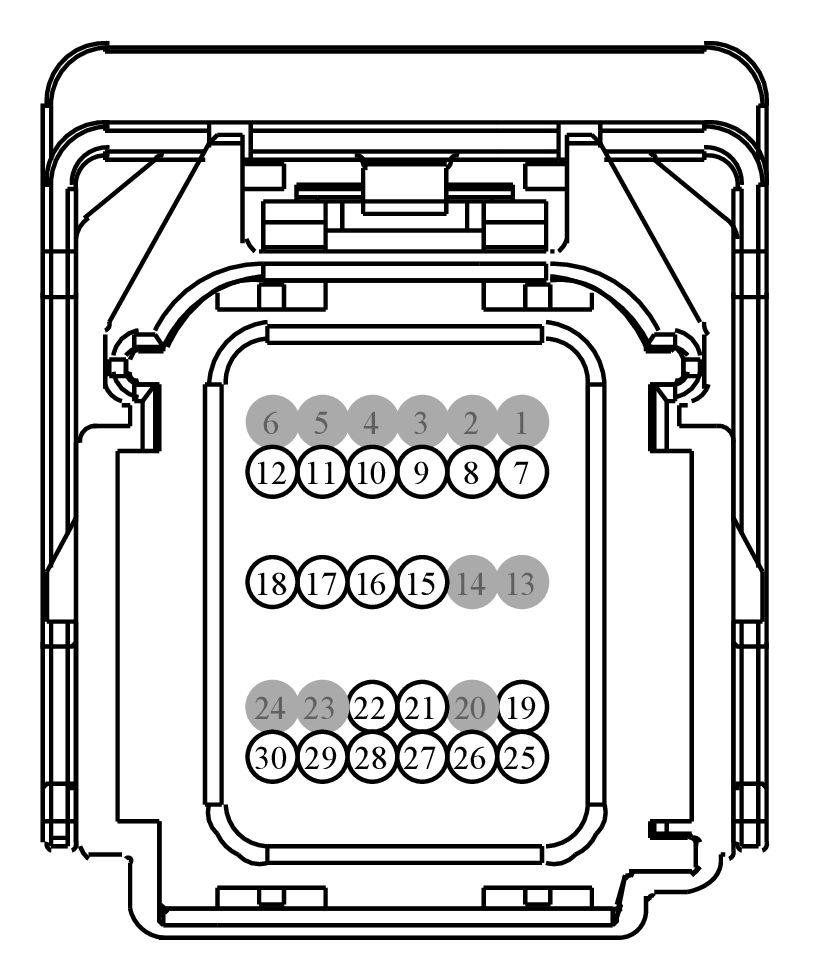

GFDWR115216Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
8U5T-14474-BB DU2Z-14474-CA 0.64
8U5T-14474-CB DU2Z-14474-CA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 * * Not Used N/A
3 * * Not Used N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 * * Not Used N/A
7 CR104 (YE-GY) 18 CTRL MOD. - AIR BAG FRONT PASSENGER 2 + 8U5T-14474-CB
8 RR104 (WH-BU) 18 CTRL MOD. - AIR BAG FRONT PASSENGER 2 - 8U5T-14474-CB
9 RR102 (WH) 18 CTRL MOD. - AIR BAG DRIVER 2 - 8U5T-14474-CB
10 CR102 (BU) 18 CTRL MOD. - AIR BAG DRIVER 2 + 8U5T-14474-CB
11 CR144 (GY-OG) 18 CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING + 8U5T-14474-CB
12 RR144 (VT-GN) 18 CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING - 8U5T-14474-CB
13 * * Not Used N/A
14 * * Not Used N/A
15 VR214 (WH-BU) 20 SENSOR - IMPACT FRONT 2ND 8U5T-14474-BB
16 RR130 (GN-BU) 20 CTRL MOD. - SENSOR IMPACT FRONT 2ND 8U5T-14474-BB
17 RR129 (YE-GY) 20 CTRL MOD. - SENSOR IMPACT FRONT 1ST - 8U5T-14474-BB
18 VR213 (VT-GN) 20 SENSOR - IMPACT FRONT 1ST 8U5T-14474-BB
19 CR195 (YE-BU) 20 CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER 8U5T-14474-BB
20 * * Not Used N/A
21 2 (BU-WH) 20 #N/A N/A
21 RR168 (BU-WH) 20 CTRL MOD. - PYROTECHNIC STEERING COLUMN - N/A
22 2 (WH-GN) 20 #N/A N/A
22 CR168 (WH-GN) 20 CTRL MOD. - PYROTECHNIC STEERING COLUMN + N/A
23 * * Not Used N/A
24 * * Not Used N/A
25 CR204 (VT) 20 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 DRIVER SIDE 8U5T-14474-BB
26 CR205 (WH-OG) 20 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 MIDDLE 8U5T-14474-BB
27 RR103 (VT-GN) 18 CTRL MOD. - AIR BAG FRONT PASSENGER 1 - 8U5T-14474-CB
28 CR103 (GY-BU) 18 CTRL MOD. - AIR BAG FRONT PASSENGER 1 + 8U5T-14474-CB
29 CR101 (VT-BN) 18 CTRL MOD. - AIR BAG DRIVER 1 + 8U5T-14474-CB
30 RR101 (YE-GN) 18 CTRL MOD. - AIR BAG DRIVER 1 - 8U5T-14474-CB
