Connector End View C226B - Steering Column Control Module (SCCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C226B	STEERING COLUMN CONTROL MODULE (SCCM)	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
AU5T-14474-DA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CHS72 (YE-BU)	22	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT +	AU5T-14474-DA
2	RHS72 (YE-GY)	22	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT -	AU5T-14474-DA

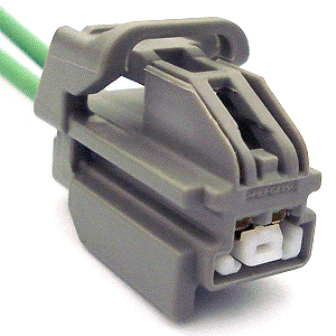

Available Pigtail Kits

Pigtail Kit Part Number WPT-965

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-AEB

Gauge:

14

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Actuator - Door Lock - Decklid/Liftgate
• Element - Heated Seat
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Module - Heated Seat
• Motor - Adjustable Pedal
• Motor - Decklid / Liftgate
• Sensor - Air Charge Temperature
• Sensor - EATC In Car Temperature
• Speaker - Subwoofer
• Switch - Adjustable Pedal
• Switch - Brake Deactivation
• Switch - Brake Pressure
• Switch - Clutch Pedal Position
• Switch - Stop Lamp
• Switch - Third Row Power Folding Seat
