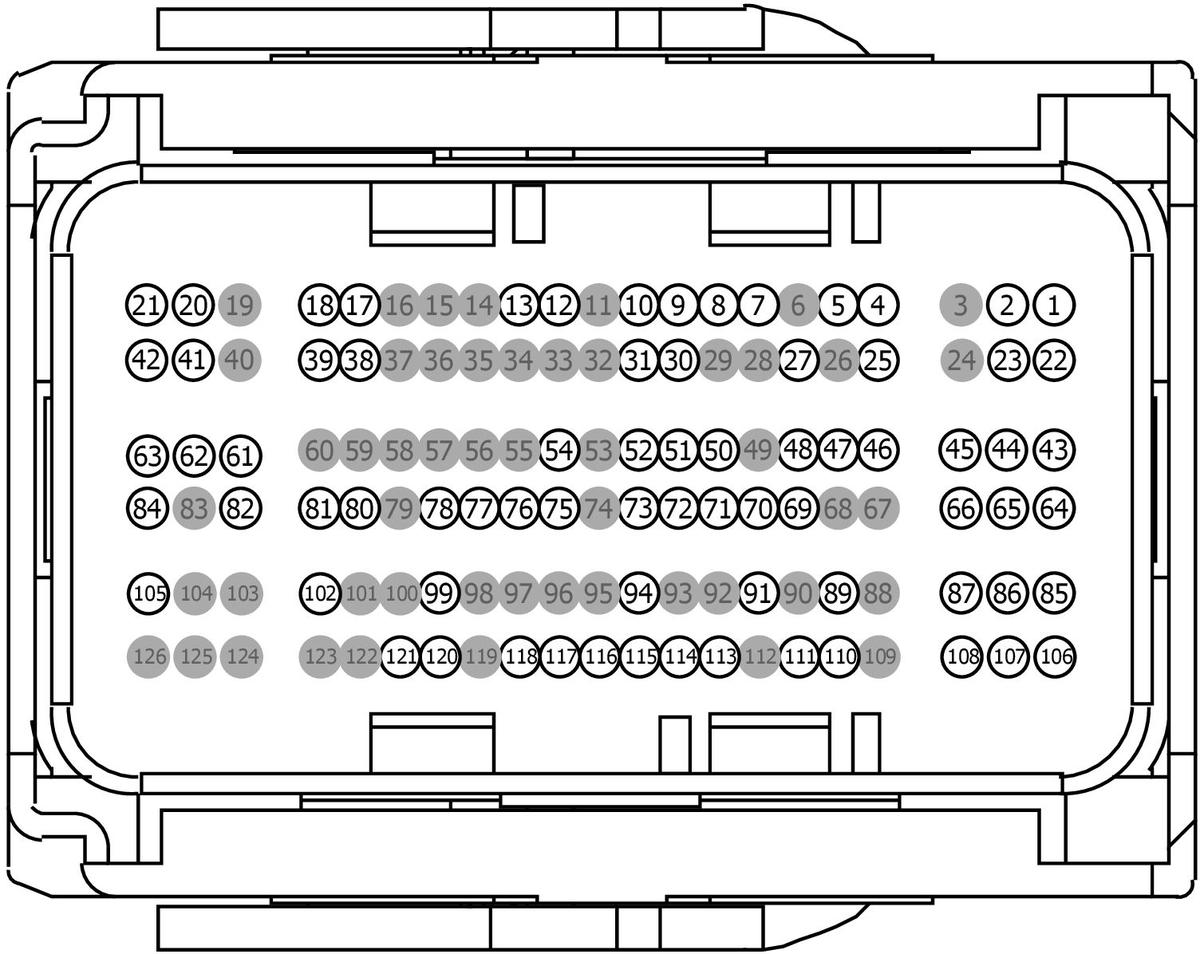

Connector End View C175E - Powertrain Control Module (PCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C175E	POWERTRAIN CONTROL MODULE (PCM)	12C508			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
GU5T-14474-DA	Not Available
BU5T-14474-BB	Not Available
GU5T-14474-CA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE208 (YE-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) +	GU5T-14474-DA
2	CE205 (GN-BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +	GU5T-14474-DA
3	*	*	Not Used	N/A
4	CE421 (VT)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1)	BU5T-14474-BB
5	RE401 (GN-BU)	18	CTRL MOD. - POWERTRAIN # SCREEN GROUNDS -	BU5T-14474-BB
6	*	*	Not Used	N/A
7	VE850 (WH-VT)	18	SENSOR - WASTE GATE CONTROL PRESSURE (WGCP)	BU5T-14474-BB
8	VE712 (BU-GY)	18	SENSOR - CYLINDER HEAD TEMPERATURE (CHT)	BU5T-14474-BB
9	RE323 (WH-BN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] -	BU5T-14474-BB
10	VE805 (GY-OG)	18	SENSOR - MANIFOLD TEMPERATURE +	BU5T-14474-BB
11	*	*	Not Used	N/A
12	VE818 (BN)	18	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS)	BU5T-14474-BB
13	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	BU5T-14474-BB
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	CE267 (BU-GY)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 6	BU5T-14474-BB
18	CE264 (YE-VT)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 3	BU5T-14474-BB
19	*	*	Not Used	N/A
20	RE210 (BN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) -	GU5T-14474-DA
21	CE303 (WH-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A)	GU5T-14474-CA
22	RE208 (BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) -	GU5T-14474-DA
23	RE205 (YE-BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) -	GU5T-14474-DA
24	*	*	Not Used	N/A
25	CE442 (YE-GY)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 3	BU5T-14474-BB
26	*	*	Not Used	N/A
27	VE836 (VT-GN)	18	SENSOR - WASTEGATE POSITION (WGT_PS)	BU5T-14474-BB
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	VE801 (VT-OG)	18	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+]	BU5T-14474-BB
31	VE728 (GN)	18	SENSOR - FUEL RAIL TEMPERATURE (FRT)	BU5T-14474-BB
32	*	*	Not Used	N/A
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	CE265 (WH)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 4	BU5T-14474-BB
39	CE262 (GN)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 1	BU5T-14474-BB
40	*	*	Not Used	N/A
41	CE210 (GN-WH)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) +	GU5T-14474-DA
42	CE305 (BU-OG)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C)	GU5T-14474-CA
43	CE209 (BN)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) +	GU5T-14474-DA
44	CE207 (VT-GY)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) +	GU5T-14474-DA
45	RE206 (BU-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) -	GU5T-14474-DA
46	CE113 (WH-BN)	18	CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP)	BU5T-14474-BB
47	RE403 (OG-BU)	18	CTRL MOD. - SENSOR CLUTCH PEDAL -	BU5T-14474-BB
48	CBK01 (BU)	18	FUEL PUMP RELAY OUTPUT (VPWR F)	BU5T-14474-BB
49	*	*	Not Used	N/A
50	VE740 (VT-GY)	18	SENSOR - INTAKE AIR TEMPERATURE (IAT)	BU5T-14474-BB
51	VE802 (BN-BU)	18	SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+]	BU5T-14474-BB
52	VE804 (GN-BN)	18	SENSOR - INTAKE AIR TEMPERATURE (IAT2)	BU5T-14474-BB
53	*	*	Not Used	N/A
54	LE143 (GN-BN)	18	CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 +	BU5T-14474-BB
55	*	*	Not Used	N/A
56	*	*	Not Used	N/A
57	*	*	Not Used	N/A
58	*	*	Not Used	N/A
59	*	*	Not Used	N/A
60	*	*	Not Used	N/A
61	CE466 (BU-BN)	18	CTRL MOD. - POWERTRAIN # SUPERCHARGER BYPASS ACTUATOR MOTOR +	GU5T-14474-CA
62	CE306 (GN-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D)	GU5T-14474-CA
63	CE308 (VT-BN)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP-F)	GU5T-14474-CA
64	RE209 (WH-GN)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) -	GU5T-14474-DA
65	RE207 (GN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) -	GU5T-14474-DA
66	CE206 (GY-YE)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) +	GU5T-14474-DA
67	*	*	Not Used	N/A
68	*	*	Not Used	N/A
69	CMC24 (GY)	18	SWITCH - OIL PRESSURE	BU5T-14474-BB
70	VE761 (BN-BU)	18	SENSOR - FUEL LOW PRESSURE (FLPS)	BU5T-14474-BB
71	VE727 (BU-BN)	18	SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)	BU5T-14474-BB
72	RE324 (BN-GN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-]	BU5T-14474-BB
73	VE763 (YE)	18	SENSOR - CRANKCASE VENTILATION MONITOR (CVM)	BU5T-14474-BB
74	*	*	Not Used	N/A
75	VE707 (GN-VT)	18	SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) +	BU5T-14474-BB
76	VE706 (BN-BU)	18	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) +	BU5T-14474-BB
77	LE144 (YE-VT)	18	CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 2 +	BU5T-14474-BB
78	VE711 (YE-VT)	18	SENSOR - CRANKSHAFT POSITION (CKPP) +	BU5T-14474-BB
79	*	*	Not Used	N/A
80	CE435 (YE-BU)	18	CTRL MOD. - POWERTRAIN # TURBO CONTROL VALVE	BU5T-14474-BB
81	CE263 (BU-GN)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 2	BU5T-14474-BB
82	RE466 (GN-BN)	18	CTRL MOD. - POWERTRAIN # SUPERCHARGER BYPASS ACTUATOR MOTOR -	GU5T-14474-CA
83	*	*	Not Used	N/A
84	CE304 (YE-BU)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B)	GU5T-14474-CA
85	CE426 (BU-GN)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)	GU5T-14474-CA
86	CE226 (YE-VT)	16	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	GU5T-14474-DA
87	VE354 (GN-BU)	18	CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) +	GU5T-14474-CA
88	*	*	Not Used	N/A
89	VE821 (WH-VT)	18	SENSOR - VACUUM RESERVOIR PRESSURE (VRP)	BU5T-14474-BB
90	*	*	Not Used	N/A
91	RE405 (GN-WH)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	BU5T-14474-BB
92	*	*	Not Used	N/A
93	*	*	Not Used	N/A
94	VE803 (BU-BN)	18	SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) +	BU5T-14474-BB
95	*	*	Not Used	N/A
96	*	*	Not Used	N/A
97	*	*	Not Used	N/A
98	*	*	Not Used	N/A
99	RE402 (OG-WH)	18	CTRL MOD. - POWERTRAIN # SCREEN GROUNDS -	BU5T-14474-BB
100	*	*	Not Used	N/A
101	*	*	Not Used	N/A
102	CE422 (WH-OG)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2)	BU5T-14474-BB
103	*	*	Not Used	N/A
104	*	*	Not Used	N/A
105	CE307 (WH-BN)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 5 (COP-E)	GU5T-14474-CA
106	CE412 (YE-VT)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)	GU5T-14474-CA
107	RE226 (GN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTION PUMP (FVRRTN)	GU5T-14474-DA
108	RE354 (WH-BU)	18	CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) -	GU5T-14474-CA
109	*	*	Not Used	N/A
110	CE266 (VT-GN)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 5	BU5T-14474-BB
111	CE443 (BN-VT)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 4	BU5T-14474-BB
112	*	*	Not Used	N/A
113	RE135 (GN-BN)	18	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) -	BU5T-14474-BB
114	RE134 (BU-OG)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)	BU5T-14474-BB
115	LE458 (BU-WH)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)	BU5T-14474-BB
116	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	BU5T-14474-BB
117	LE134 (YE)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)	BU5T-14474-BB
118	LE111 (VT-GN)	18	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)	BU5T-14474-BB
119	*	*	Not Used	N/A
120	LE411 (OG-BN)	18	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) +	BU5T-14474-BB
121	RE408 (GN-WH)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	BU5T-14474-BB
122	*	*	Not Used	N/A
123	*	*	Not Used	N/A
124	*	*	Not Used	N/A
125	*	*	Not Used	N/A
126	*	*	Not Used	N/A
