Connector End View C175B - Powertrain Control Module (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C175B POWERTRAIN CONTROL MODULE (PCM) 14290 part# N/A Not Available

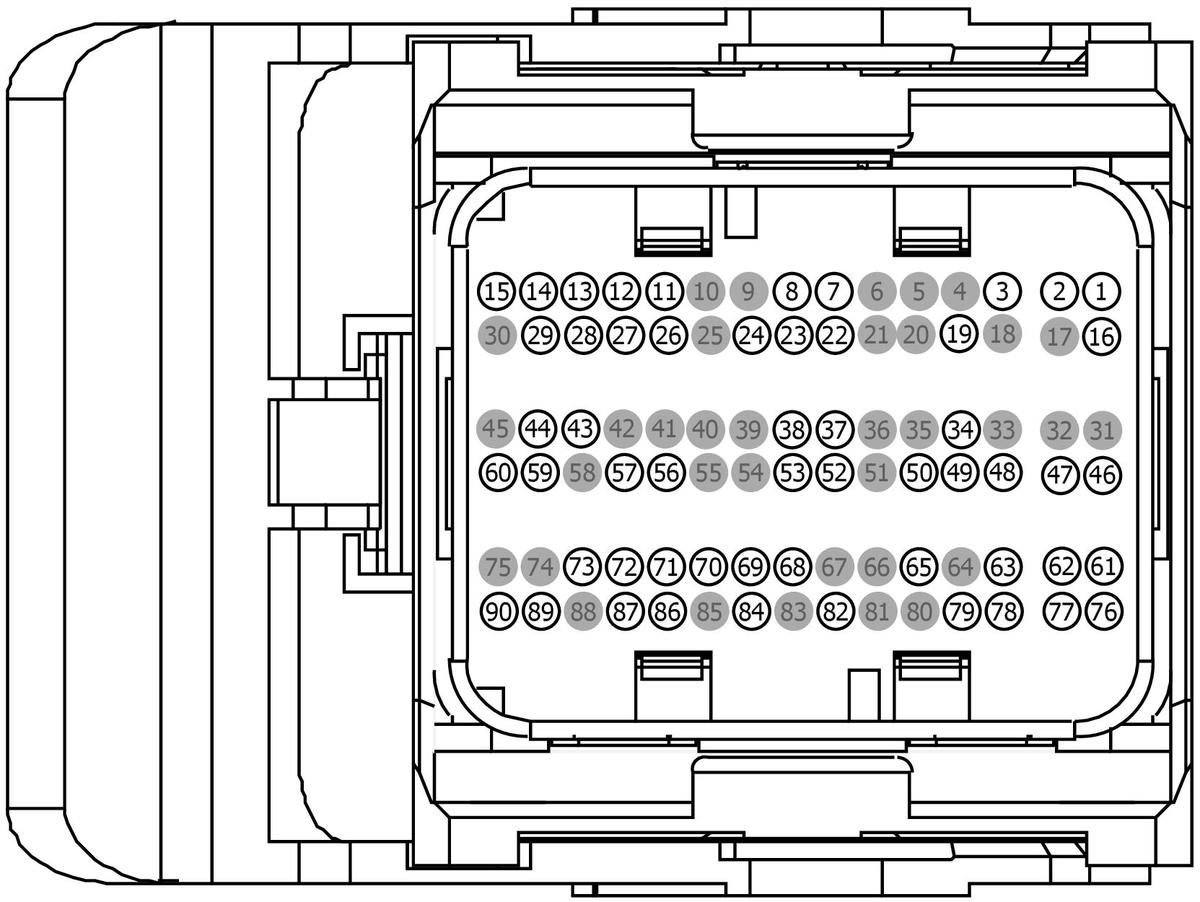

GFDWR115139Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
GU5T-14474-CA DU2Z-14474-BA 0.64
BU5T-14474-AB DU2Z-14474-CA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CBB38 (GY-BU) 20 FUSE - 38 OR CIRCUIT BREAKER GU5T-14474-CA
2 CBB38 (GY-BU) 20 FUSE - 38 OR CIRCUIT BREAKER GU5T-14474-CA
3 VE225 (YE-OG) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) BU5T-14474-AB
4 * * Not Used N/A
5 * * Not Used N/A
6 * * Not Used N/A
7 CE436 (VT-OG) 22 CTRL MOD. -WAKE UP PCM BU5T-14474-AB
8 CCB08 (VT-WH) 22 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN BU5T-14474-AB
9 * * Not Used N/A
10 * * Not Used N/A
11 VDN06 (WH-GN) 22 CTRL MOD. - LIN BUS # BCM 6 BU5T-14474-AB
12 VDB05 (WH-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW BU5T-14474-AB
13 CBB16 (BU-GN) 22 FUSE - 16 OR CIRCUIT BREAKER BU5T-14474-AB
14 RE226 (GN-VT) 22 CTRL MOD. - POWERTRAIN # FUEL INJECTION PUMP (FVRRTN) BU5T-14474-AB
15 CDC10 (BU-OG) 22 CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC) BU5T-14474-AB
16 CBB38 (GY-BU) 20 FUSE - 38 OR CIRCUIT BREAKER GU5T-14474-CA
17 * * Not Used N/A
18 * * Not Used N/A
19 CH302 (WH-BN) 22 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) BU5T-14474-AB
20 * * Not Used N/A
21 * * Not Used N/A
22 CDC35 (BU-WH) 22 SWITCH - IGNITION # START BU5T-14474-AB
23 CES09 (VT-OG) 22 SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + BU5T-14474-AB
24 VE740 (VT-GY) 20 SENSOR - INTAKE AIR TEMPERATURE (IAT) BU5T-14474-AB
25 * * Not Used N/A
26 RE407 (YE-VT) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) BU5T-14474-AB
27 VDB04 (WH-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH BU5T-14474-AB
28 RE407 (YE-VT) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) BU5T-14474-AB
29 CE226 (YE-VT) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + BU5T-14474-AB
30 * * Not Used N/A
31 * * Not Used N/A
32 * * Not Used N/A
33 * * Not Used N/A
34 CE114 (GN-BU) 22 CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT) BU5T-14474-AB
35 * * Not Used N/A
36 * * Not Used N/A
37 CR167 (YE-VT) 22 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) BU5T-14474-AB
38 CET34 (BN-GN) 20 SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS) BU5T-14474-AB
39 * * Not Used N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 RE230 (WH-VT) 22 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER BU5T-14474-AB
44 CDC54 (WH-GN) 20 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) BU5T-14474-AB
45 * * Not Used N/A
46 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT GU5T-14474-CA
47 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT GU5T-14474-CA
48 CE420 (GY-VT) 22 CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC) BU5T-14474-AB
49 CDC70 (BU-BN) 22 CTRL MOD. - VOLTAGE QUALITY # ENGINE START (ENG START SIG) BU5T-14474-AB
50 CDC15 (VT) 22 GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) BU5T-14474-AB
51 * * Not Used N/A
52 VE518 (BN-WH) 22 MONITOR - FUEL PUMP (FPM) BU5T-14474-AB
53 CET43 (GY) 20 SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) BU5T-14474-AB
54 * * Not Used N/A
55 * * Not Used N/A
56 VE701 (YE-OG) 22 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) BU5T-14474-AB
57 VE922 (VT-GN) 22 TRANSDUCER - FUEL TANK PRESSURE (FTPT) BU5T-14474-AB
58 * * Not Used N/A
59 CEC02 (GN-BU) 22 CTRL MOD. - COOLING FAN CONTROL (FC1) BU5T-14474-AB
60 CE302 (YE-BU) 22 CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) BU5T-14474-AB
61 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT GU5T-14474-CA
62 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT GU5T-14474-CA
63 CET51 (BN-WH) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION CLUTCH PRESSURE CONTROL (CPC) BU5T-14474-AB
64 * * Not Used N/A
65 CET42 (GN-VT) 20 SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) BU5T-14474-AB
66 * * Not Used N/A
67 * * Not Used N/A
68 VE702 (BU-WH) 22 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) BU5T-14474-AB
69 VH433 (VT-OG) 22 TRANSDUCER - A/C PRESSURE (ACPT) + BU5T-14474-AB
70 LE230 (BN-BU) 22 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) BU5T-14474-AB
71 LE137 (BU-GY) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) BU5T-14474-AB
72 RE137 (YE-GN) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) BU5T-14474-AB
73 RE407 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) BU5T-14474-AB
74 * * Not Used N/A
75 * * Not Used N/A
76 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT GU5T-14474-CA
77 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT GU5T-14474-CA
78 CDC12 (YE) 22 CONTROL UNIT - BATTERY # POWER OFF (BPO) BU5T-14474-AB
79 VE462 (WH-BN) 22 CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE BU5T-14474-AB
80 * * Not Used N/A
81 * * Not Used N/A
82 LE424 (YE-GN) 22 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) BU5T-14474-AB
83 * * Not Used N/A
84 VE750 (GN-BU) 22 SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) BU5T-14474-AB
85 * * Not Used N/A
86 LE136 (GN-OG) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) BU5T-14474-AB
87 RE136 (VT-GN) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) BU5T-14474-AB
88 * * Not Used N/A
89 CEC01 (WH-BU) 22 CTRL MOD. - COOLING FAN CONTROL (FC2) BU5T-14474-AB
90 CE465 (YE-GY) 20 CTRL MOD. - POWERTRAIN # VACUUM SOLENOID VALVE (VSV) + BU5T-14474-AB
