Head Up Display (HUD) Module: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the instrument panel. Refer to: Instrument Panel .

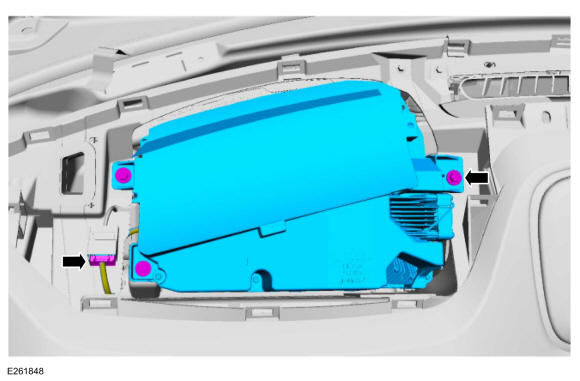

- Disconnect the electrical connector, remove the bolts and the HUD module.
Torque: 80 lb.in (9 Nm)
