Steering Column Tilt Motor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

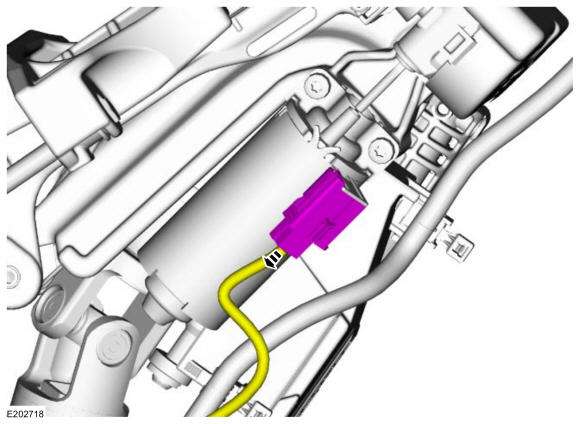

  2. Detach the tilt motor electrical connector.
    GFD617853Courtesy of FORD MOTOR COMPANY

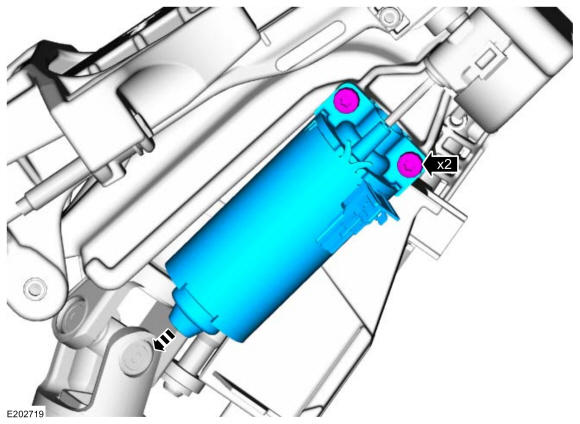

  3. Remove the screws and the tilt motor.

    Torque: 62 lb.in (7 Nm)

GFD617854Courtesy of FORD MOTOR COMPANY
