Auto-Start-Stop System

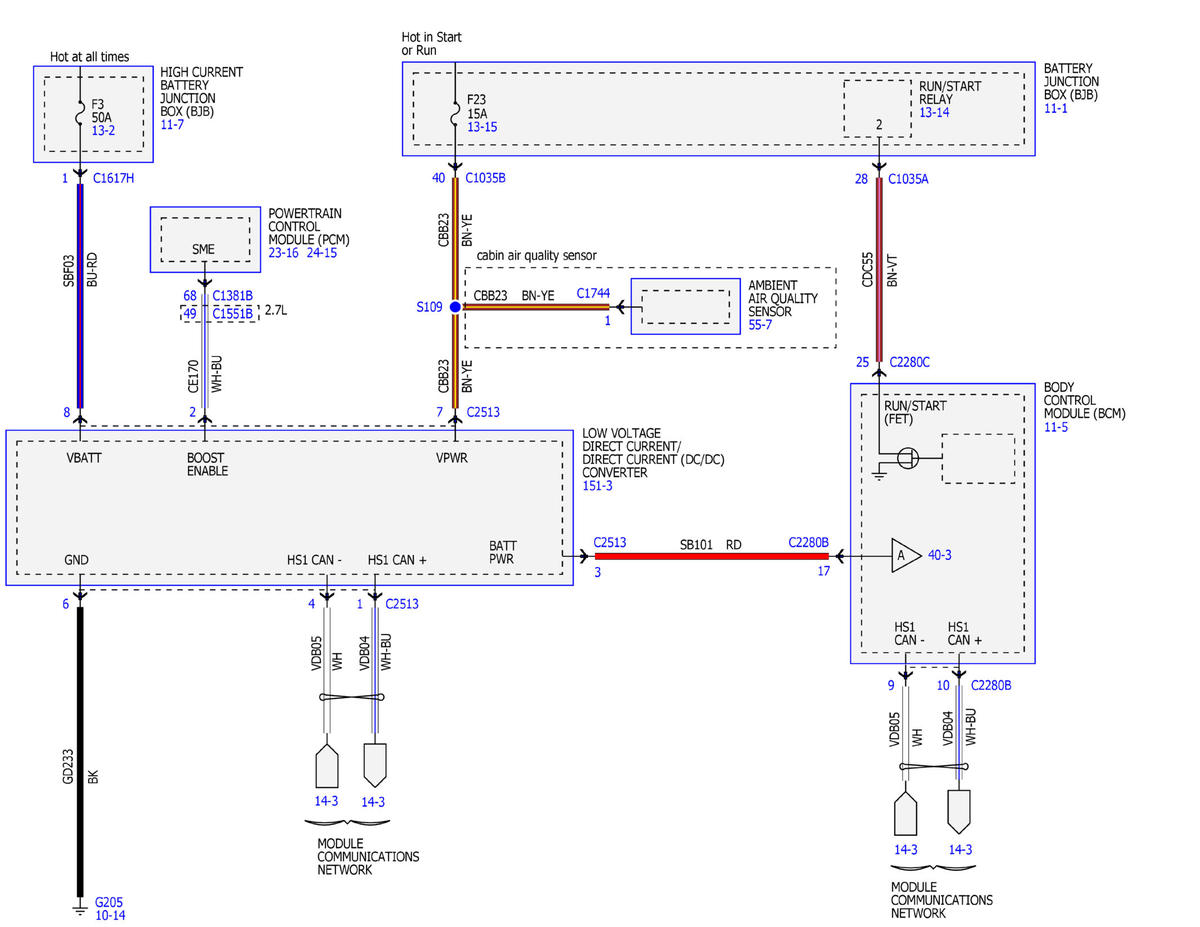

Fig 1: Auto-Start-Stop System Wiring Diagrams (1 Of 3)
GFDWR149633Courtesy of FORD MOTOR COMPANY
Fig 2: Auto-Start-Stop System Wiring Diagrams (2 Of 3)
GFDWR149634Courtesy of FORD MOTOR COMPANY
Fig 3: Auto-Start-Stop System Wiring Diagrams (3 Of 3)
GFDWR149635Courtesy of FORD MOTOR COMPANY
