Interior Rear View Mirror: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the IPMA cover.
1. Release the tabs and clips from the IPMA cover.
2. Disconnect the wiring harness electrical connector and remove the IPMA cover.
Courtesy of FORD MOTOR COMPANY

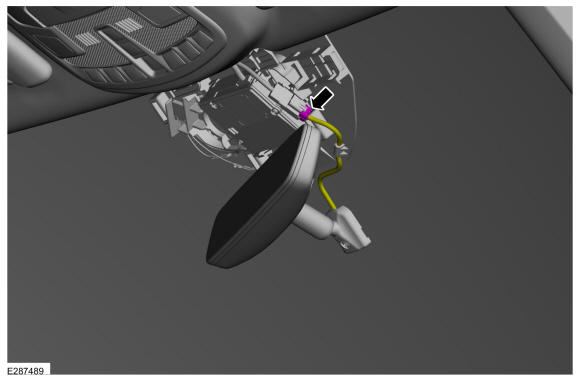

Disconnect the electrical connector and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

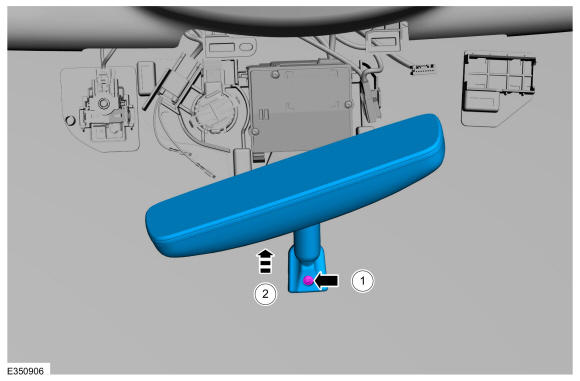

Remove the interior mirror.
1. Loosen the set screw.
  Torque:

  17 lb.in (1.9 Nm)
2. Slide the interior mirror upward.

Courtesy of FORD MOTOR COMPANY
