Exterior Mirror: Installation

Puddle Lamp

1. To install, reverse the removal procedure.

   Mirror mounted turn signal

2. To install, reverse the removal procedure.

   Mirror Cover

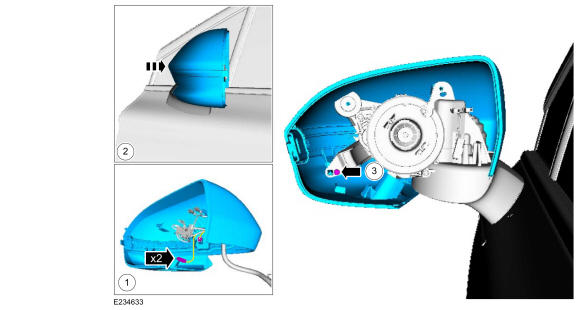

3. 1. Connect the 2 electrical connectors.
   2. Position the mirror cover onto the mirror assembly.
   3. Loosely install the screw.

   Courtesy of FORD MOTOR COMPANY

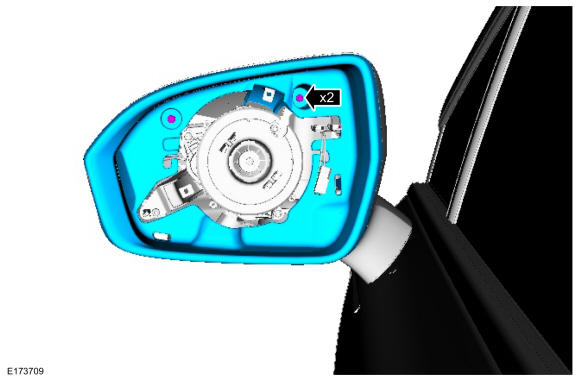

4. Position the mirror glass bezel and loosely install the screws.

   Courtesy of FORD MOTOR COMPANY

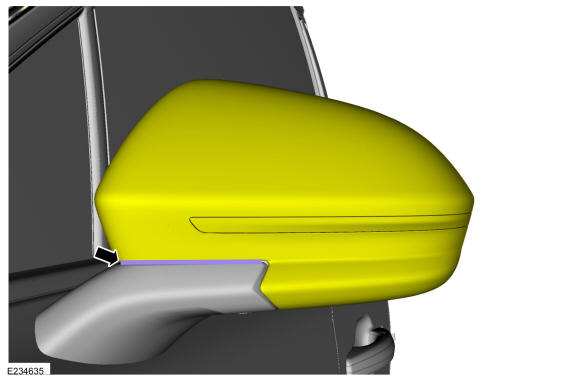

5. Install a 2 mm (0.0787 in) feeler gauge blade between the exterior mirror base and the mirror cover.

   Courtesy of FORD MOTOR COMPANY

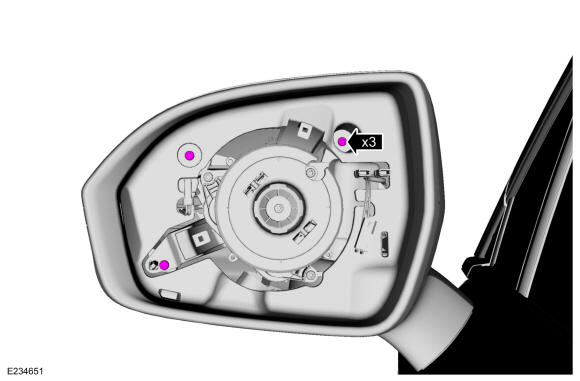

6. Tighten the screws and remove the feeler gauge.

   Courtesy of FORD MOTOR COMPANY

   Mirror Motor

7. To install, reverse the removal procedure.

   Mirror Glass

8. To install, reverse the removal procedure.

   Mirror Assembly

9. To install, reverse the removal procedure.
10. On vehicles equipped with 360 deg. camera only. Align the 360 deg. camera. Refer to: 360 Degree View Camera Alignment .
