Floor Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front seats. Refer to: Front Seat .
Remove the bolt cover and bolt.
- Release the clips and remove the LH floor console side panel extension.
Courtesy of FORD MOTOR COMPANY

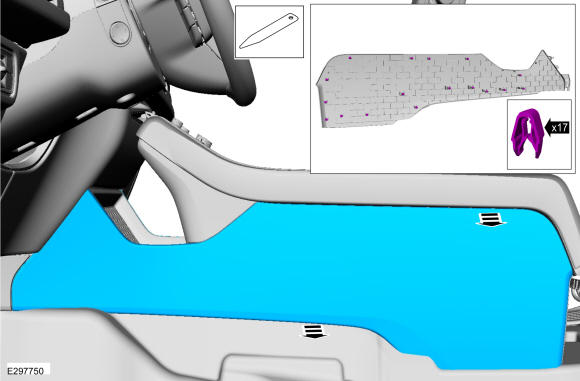

Release the retainers and remove the LH floor console side trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

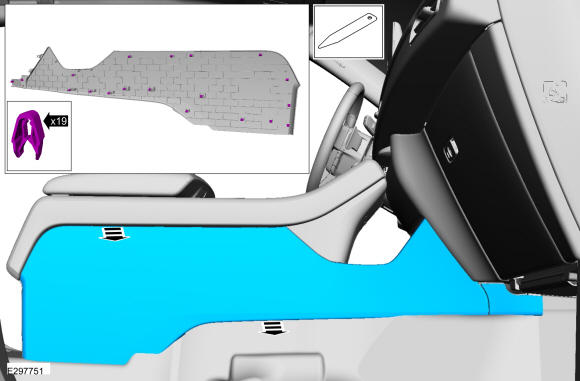

Release the retainers and remove the RH floor console side trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Position the carpet aside.

Courtesy of FORD MOTOR COMPANY

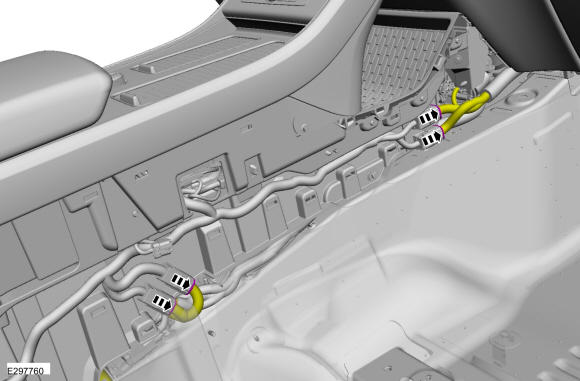

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

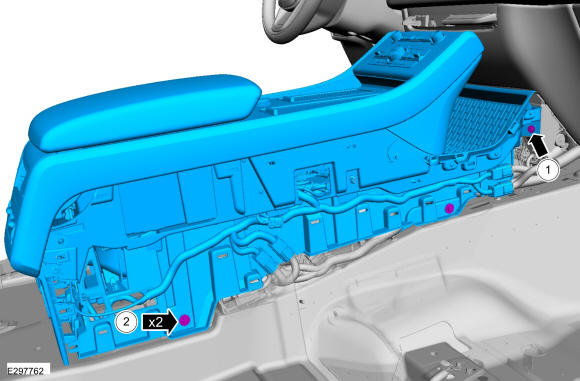

Remove the RH floor console bolts.
- Remove the bolt.
  Torque: 28 lb.in (3.2 Nm)
- Remove the bolts.
  Torque: 48 lb.in (5.4 Nm)
Courtesy of FORD MOTOR COMPANY
Position the carpet aside.

Courtesy of FORD MOTOR COMPANY

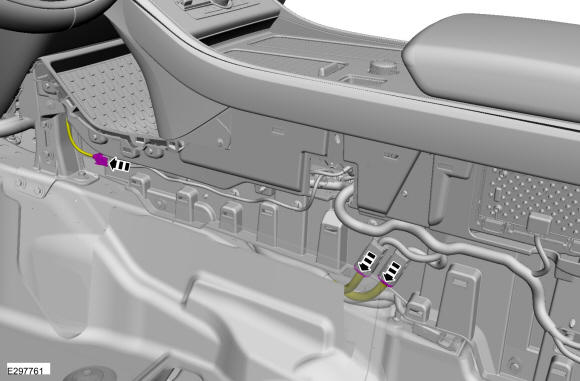

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

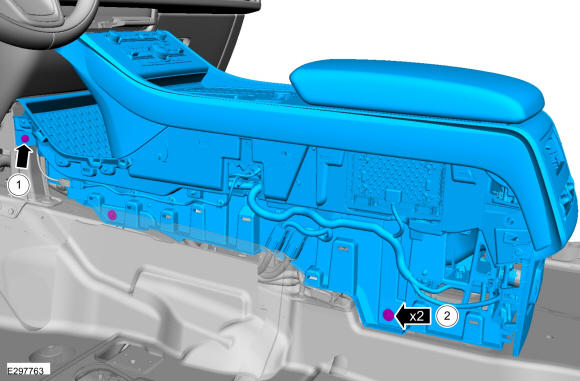

Remove the LH floor console bolts.
1. Remove the bolt.
  Torque: 28 lb.in (3.2 Nm)
2. Remove the bolts.
  Torque: 48 lb.in (5.4 Nm)
Courtesy of FORD MOTOR COMPANY

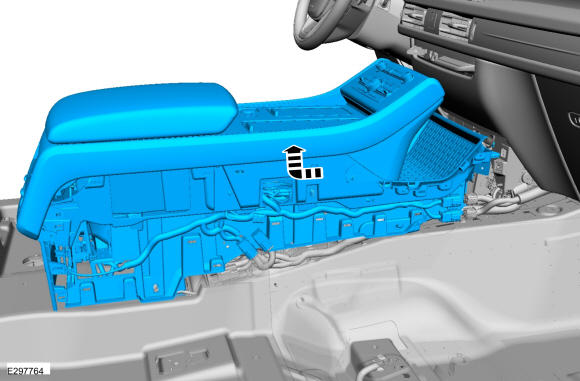

Remove the floor console.
