Automatic Climate Control System

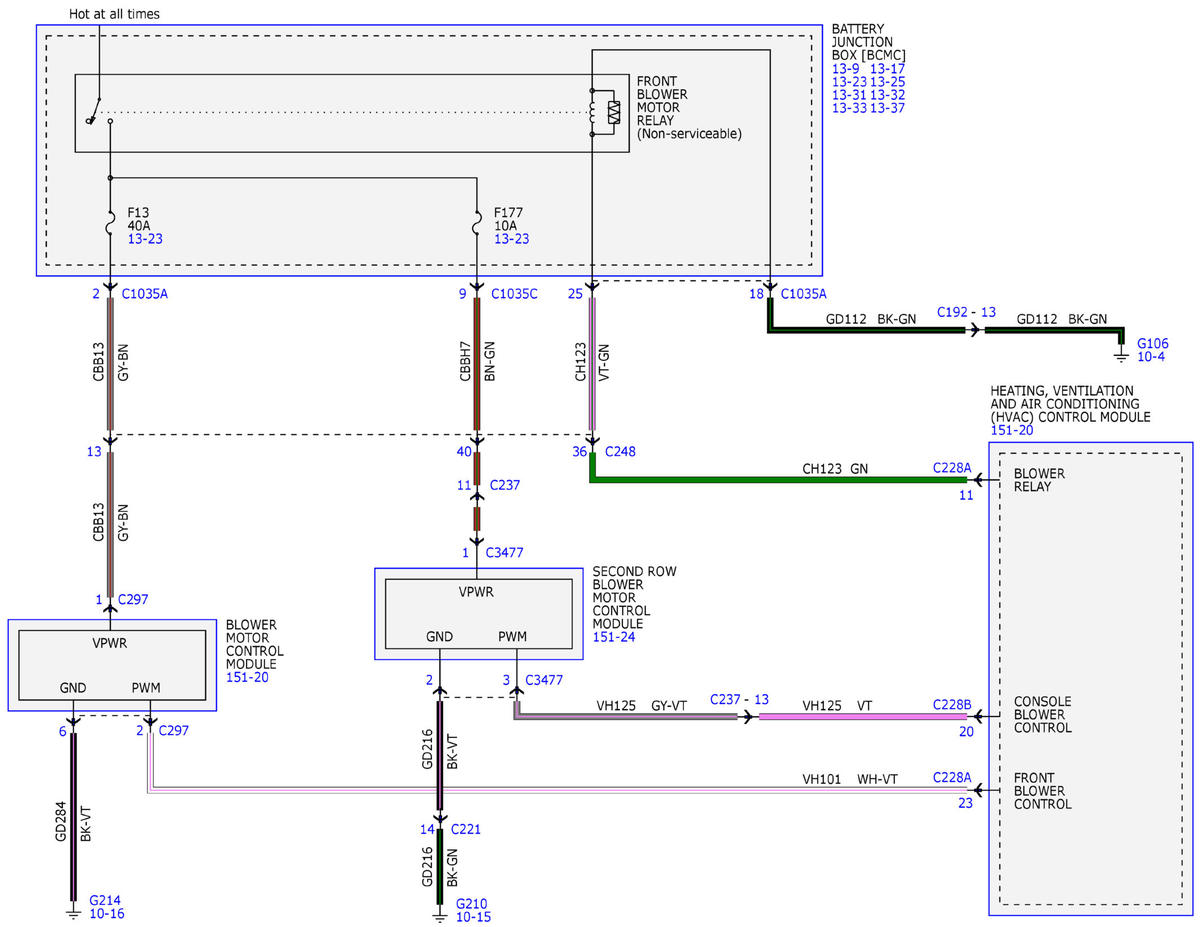

Fig 1: Automatic Climate Control System Wiring Diagram (1 Of 22)

GFDWR110827

Courtesy of FORD MOTOR COMPANY

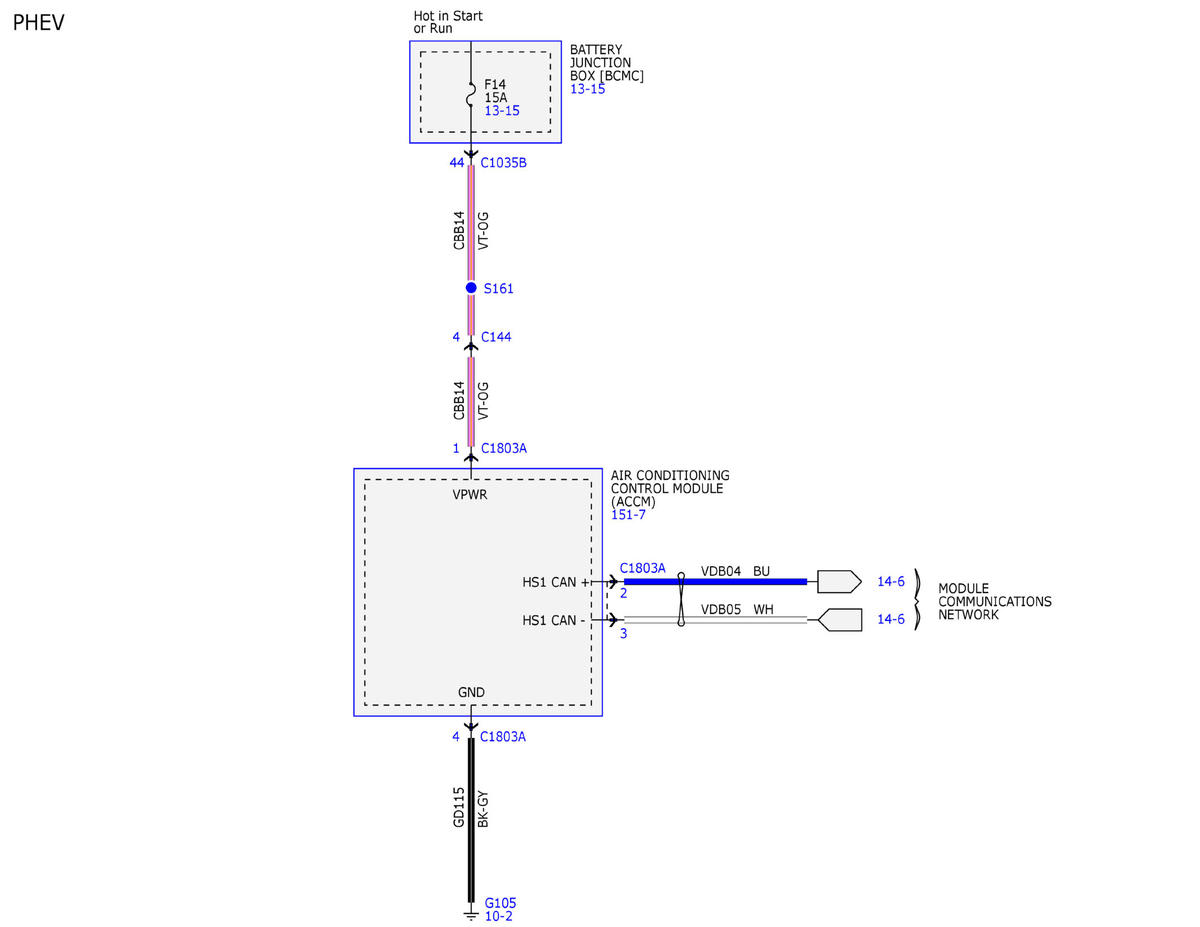

Fig 2: Automatic Climate Control System Wiring Diagram (2 Of 22)

GFDWR110828

Courtesy of FORD MOTOR COMPANY

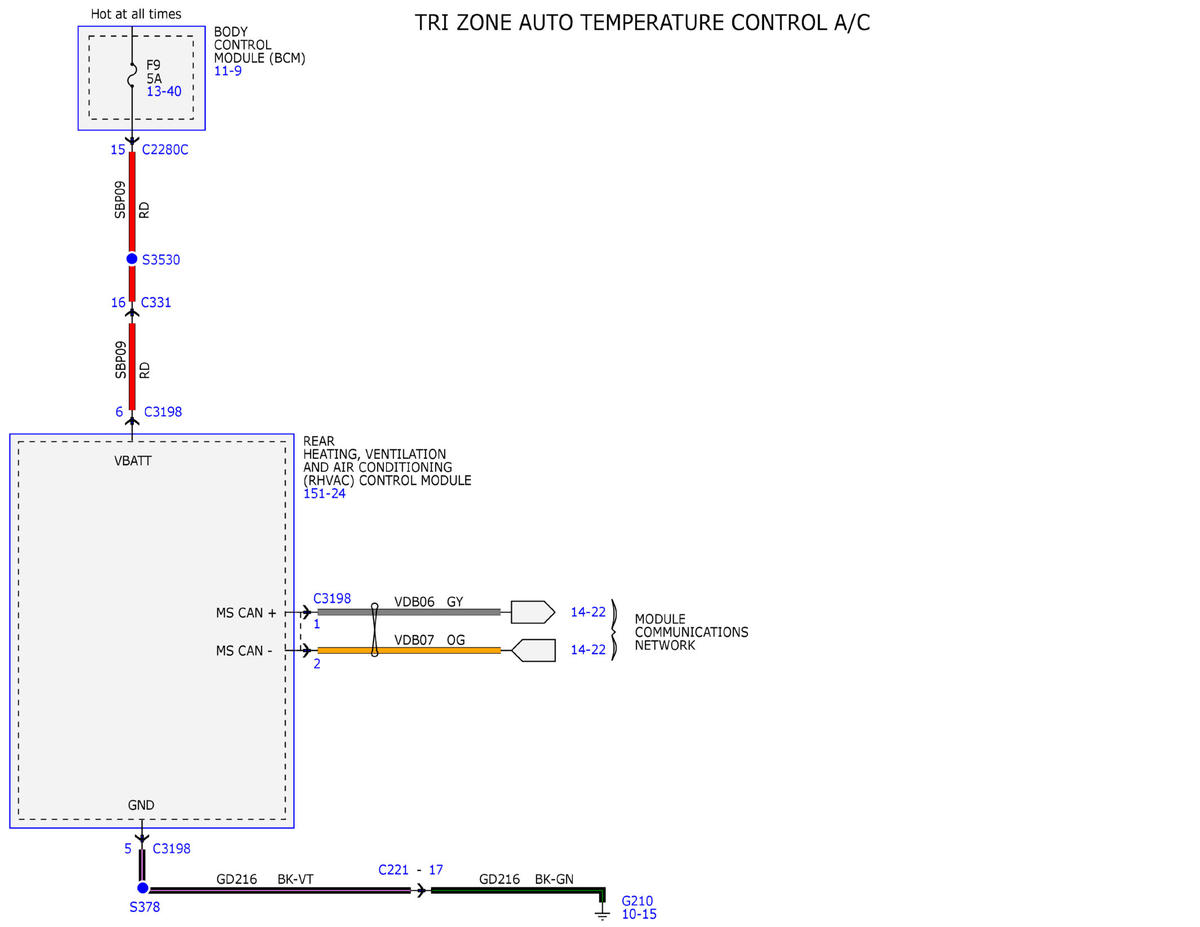

Fig 3: Automatic Climate Control System Wiring Diagram (3 Of 22)

GFDWR110829

Courtesy of FORD MOTOR COMPANY

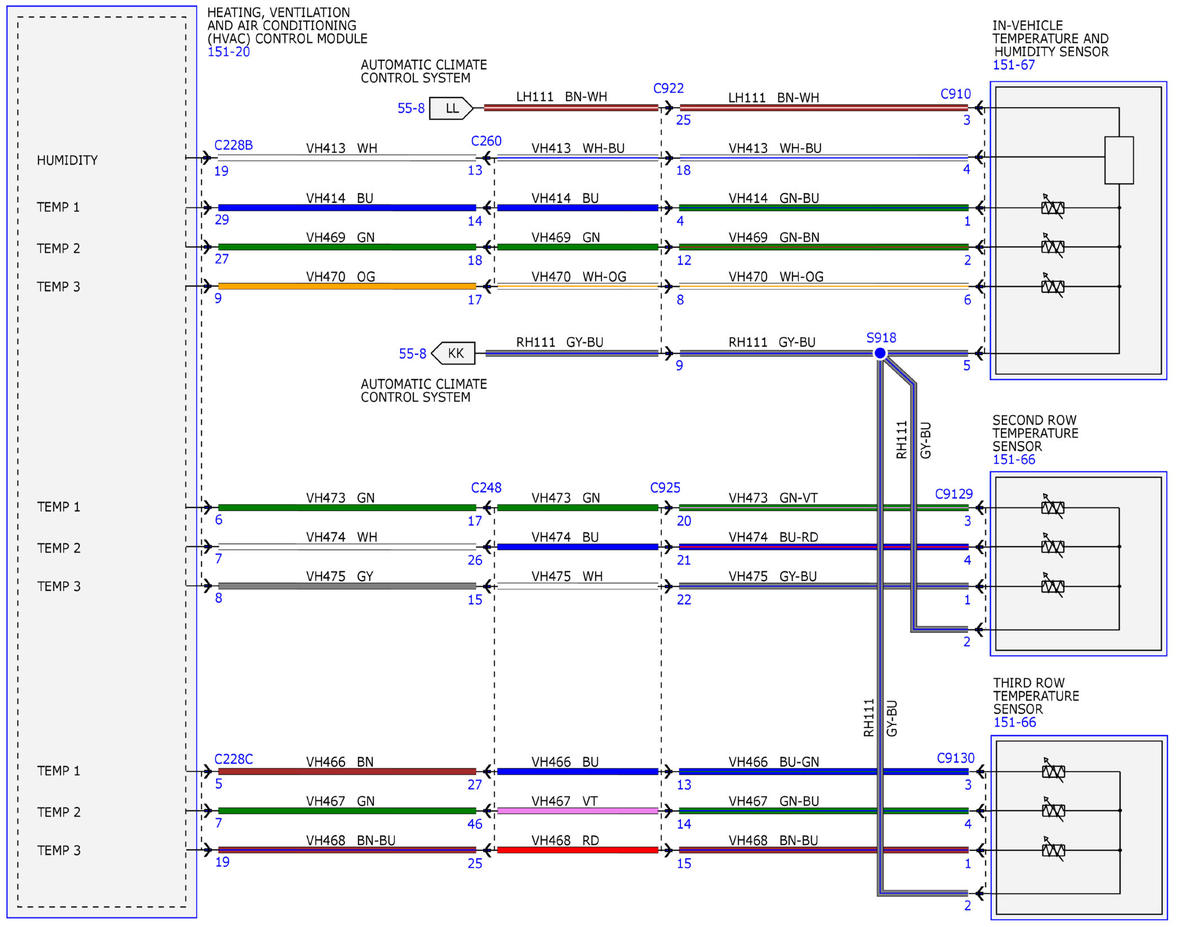

Fig 4: Automatic Climate Control System Wiring Diagram (4 Of 22)

GFDWR110830

Courtesy of FORD MOTOR COMPANY

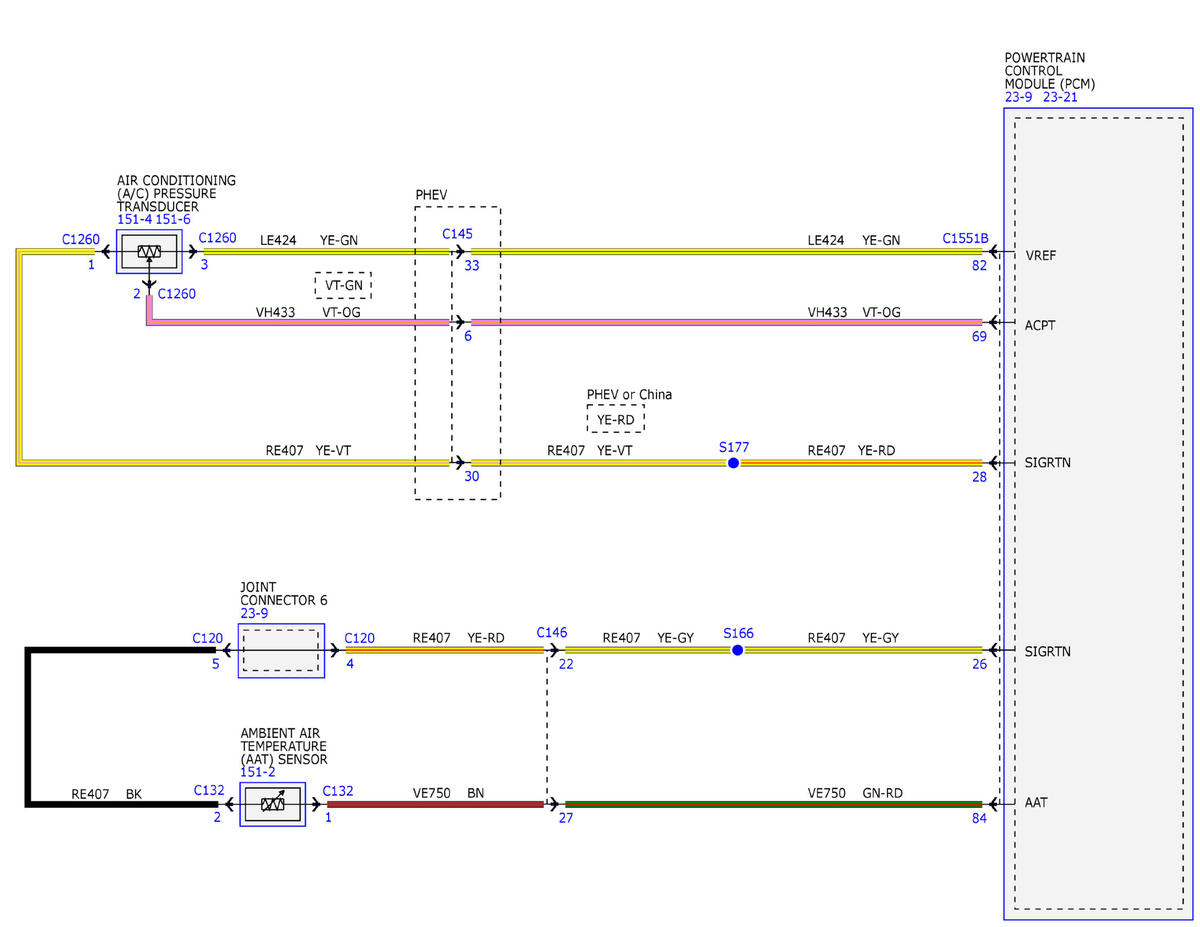

Fig 5: Automatic Climate Control System Wiring Diagram (5 Of 22)

GFDWR110831

Courtesy of FORD MOTOR COMPANY

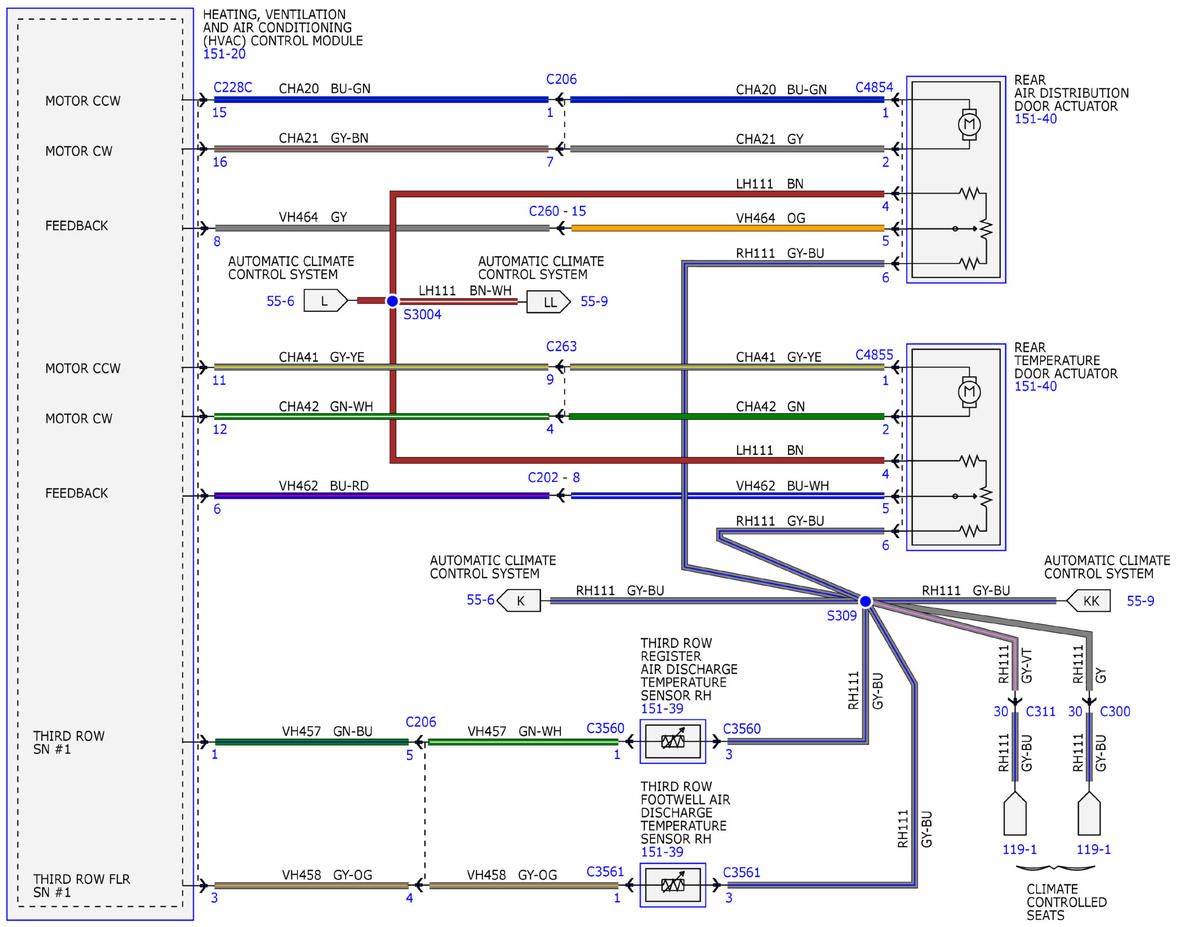

Fig 6: Automatic Climate Control System Wiring Diagram (6 Of 22)

GFDWR110832

Courtesy of FORD MOTOR COMPANY

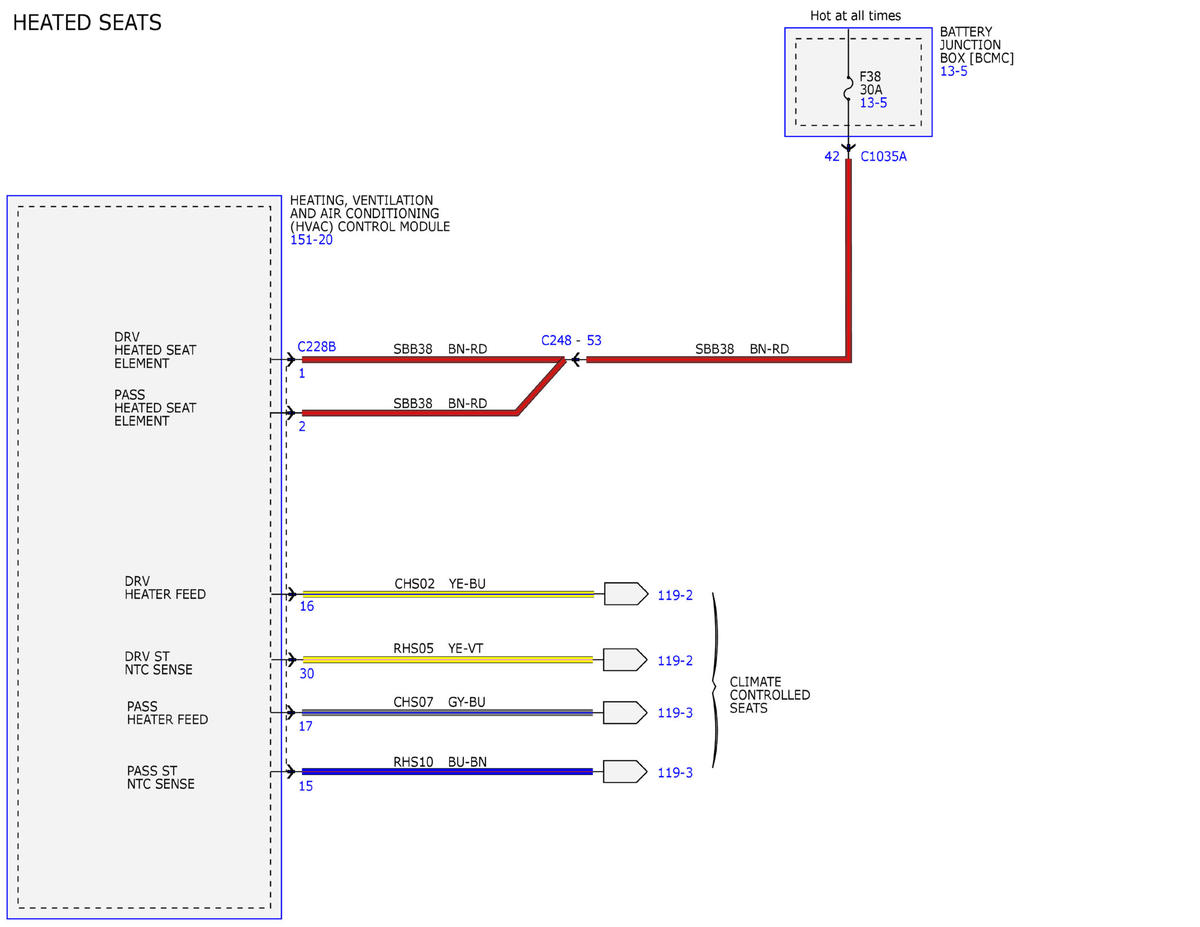

Fig 7: Automatic Climate Control System Wiring Diagram (7 Of 22)

GFDWR110833

Courtesy of FORD MOTOR COMPANY

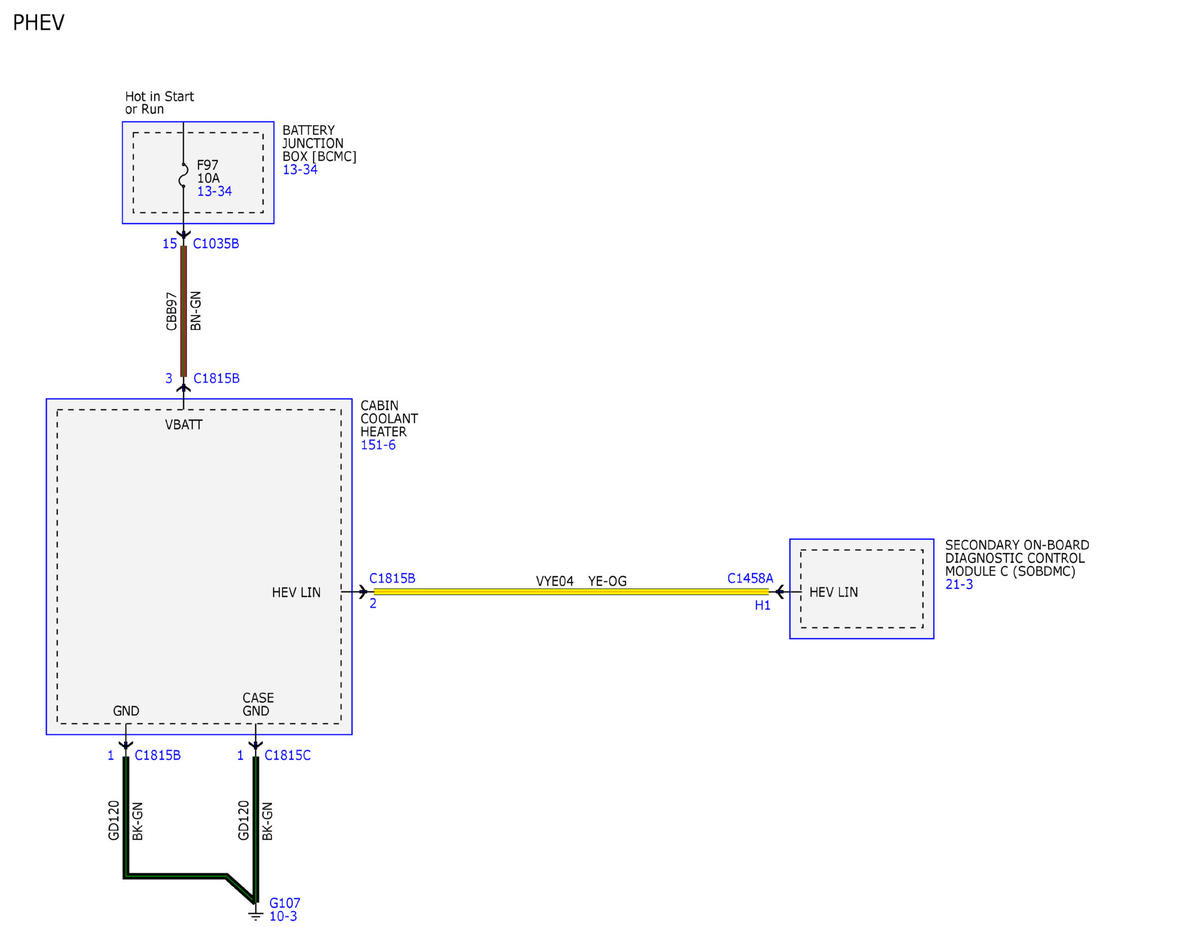

Fig 8: Automatic Climate Control System Wiring Diagram (8 Of 22)

GFDWR110834

Courtesy of FORD MOTOR COMPANY

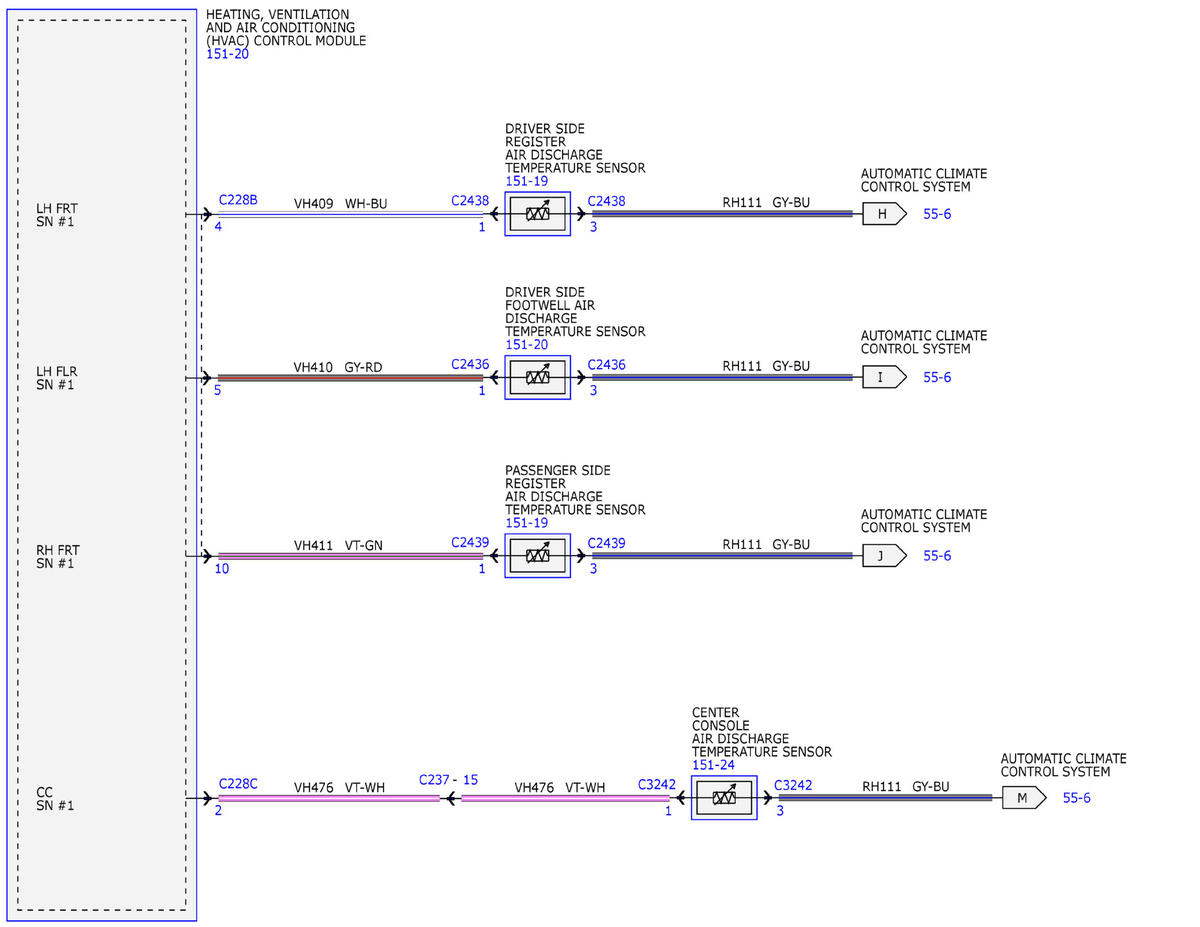

Fig 9: Automatic Climate Control System Wiring Diagram (9 Of 22)

GFDWR110835

Courtesy of FORD MOTOR COMPANY

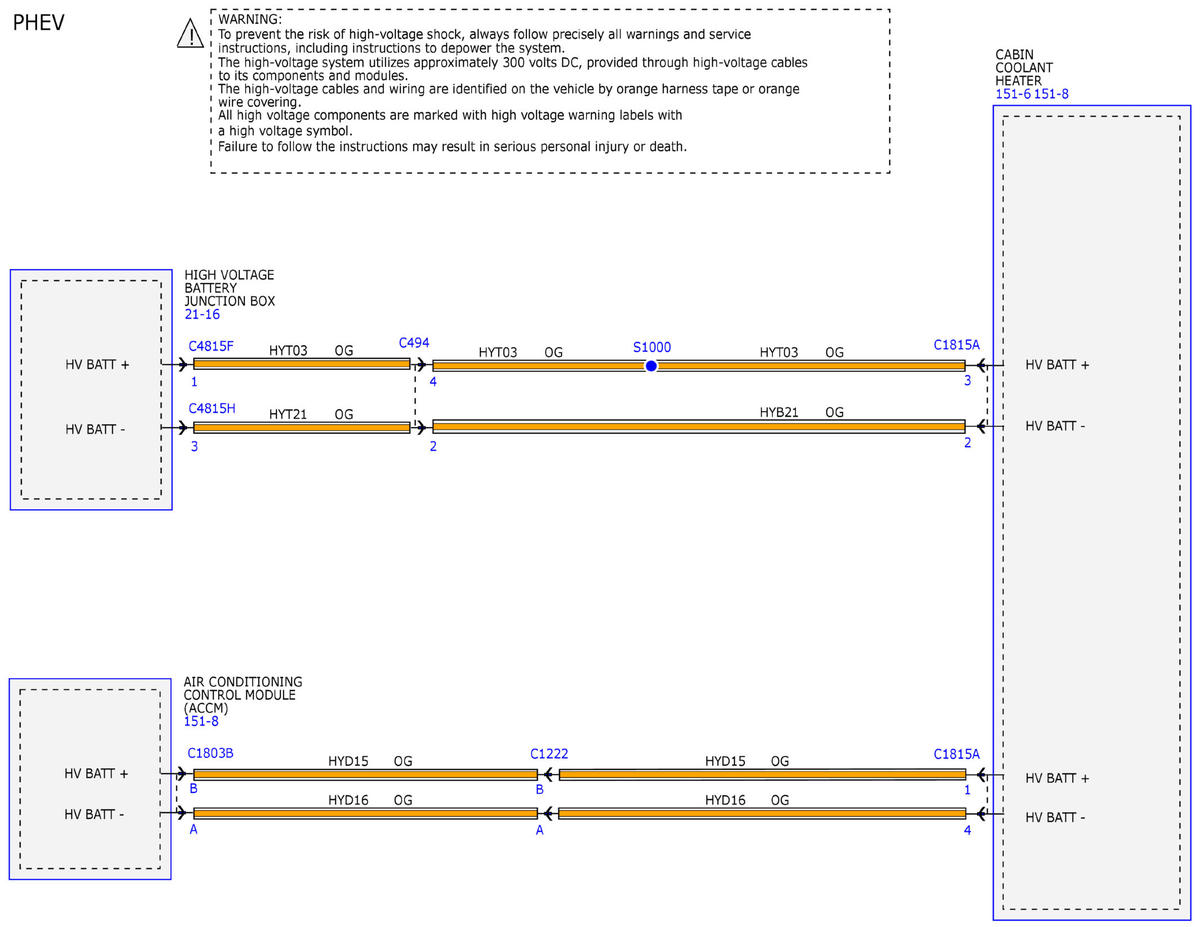

Fig 10: Automatic Climate Control System Wiring Diagram (10 Of 22)

GFDWR110836

Courtesy of FORD MOTOR COMPANY

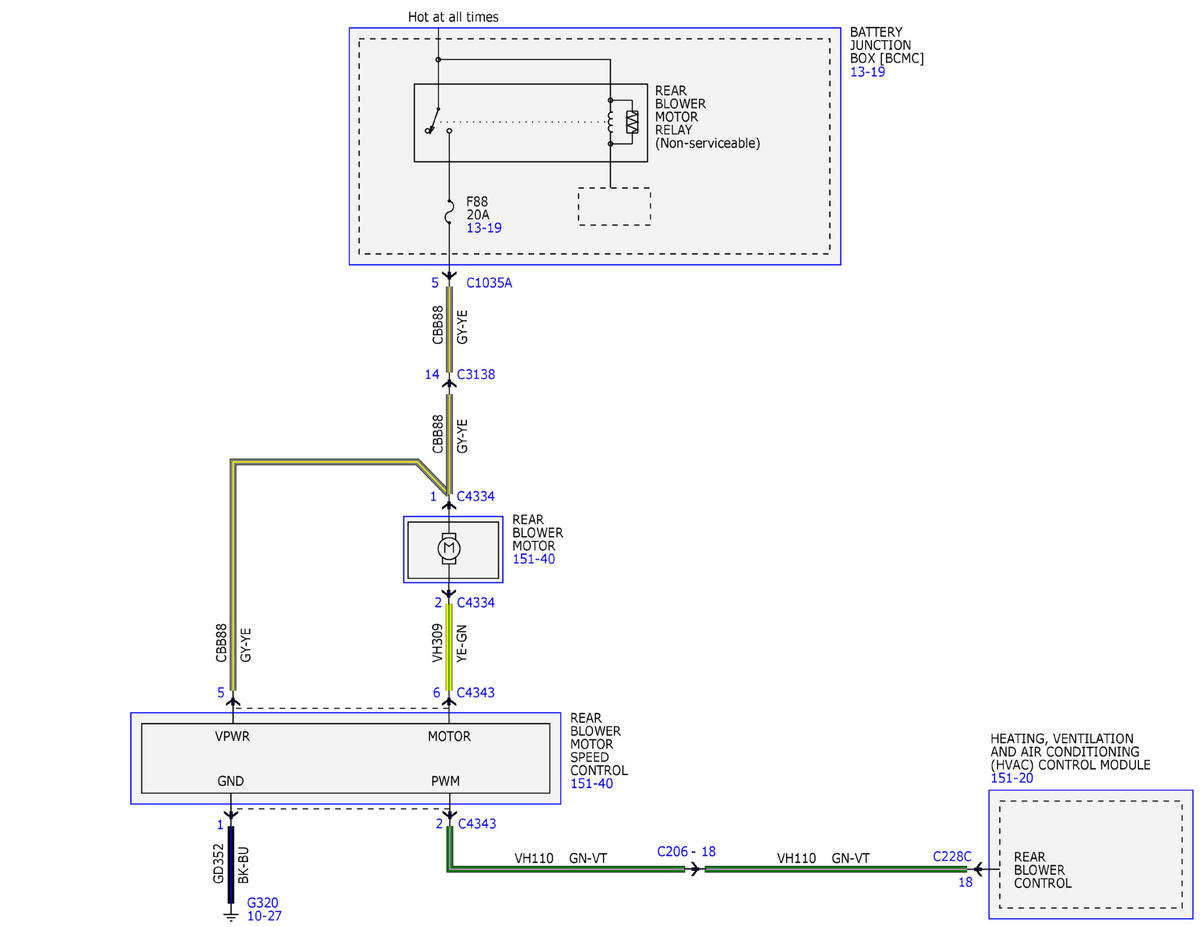

Fig 11: Automatic Climate Control System Wiring Diagram (11 Of 22)

GFDWR110837

Courtesy of FORD MOTOR COMPANY

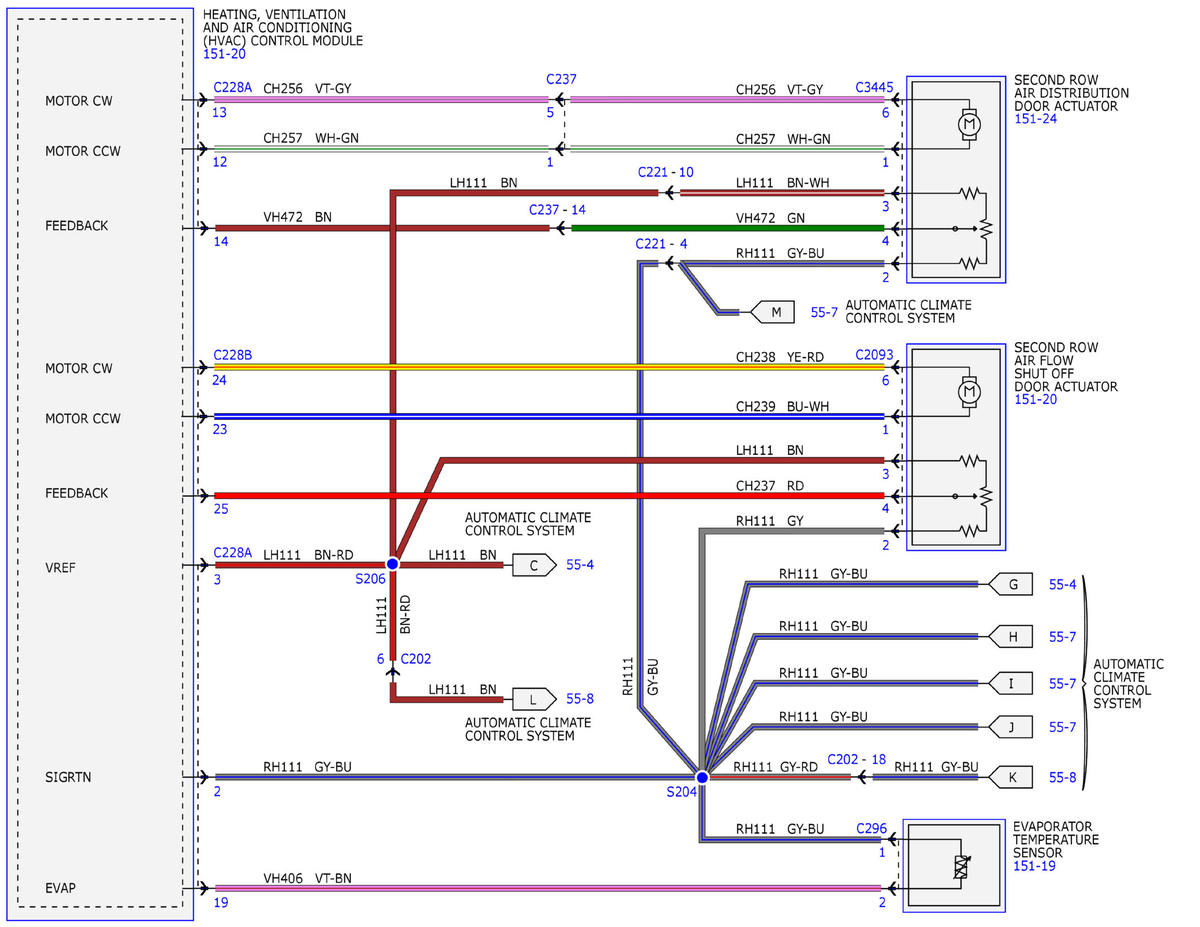

Fig 12: Automatic Climate Control System Wiring Diagram (12 Of 22)

GFDWR110838

Courtesy of FORD MOTOR COMPANY

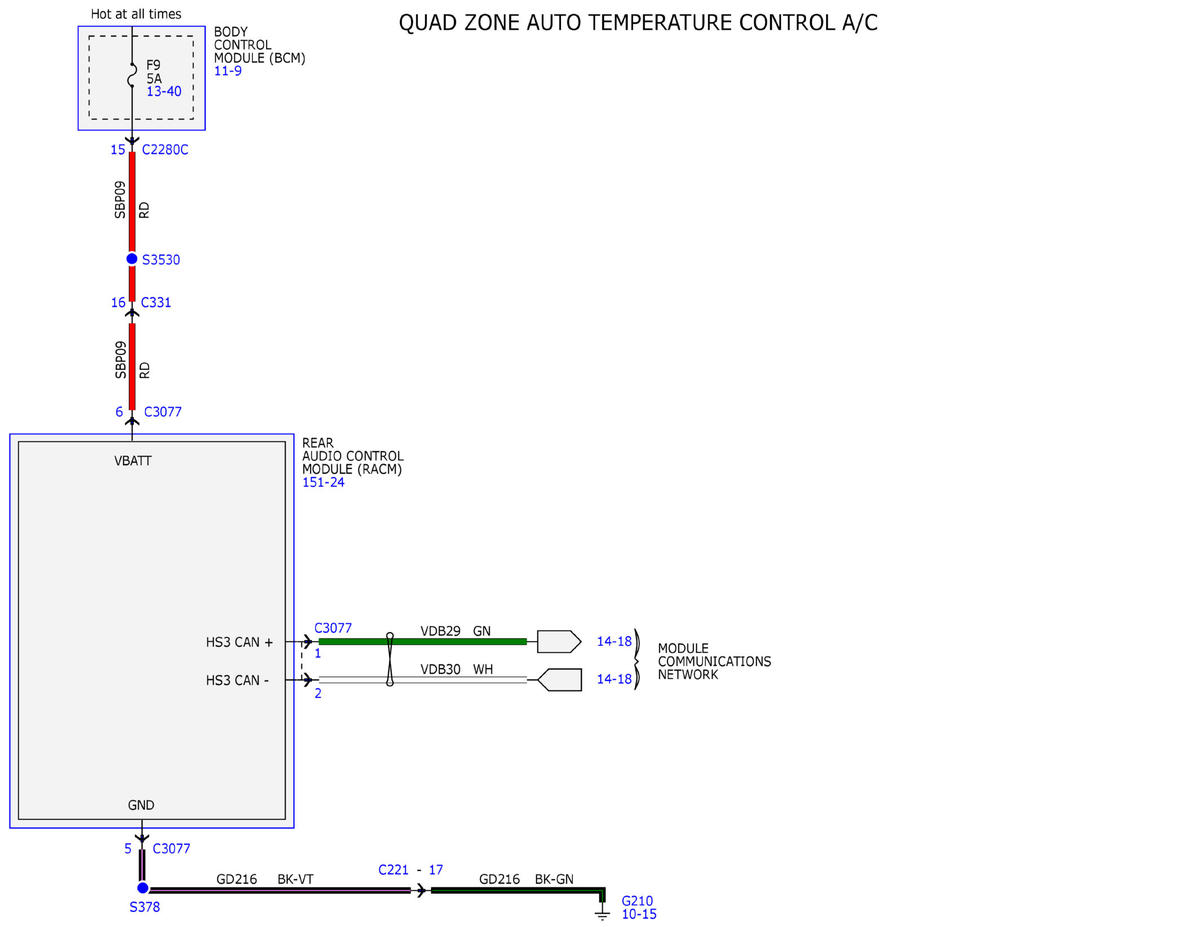

Fig 13: Automatic Climate Control System Wiring Diagram (13 Of 22)

GFDWR110839

Courtesy of FORD MOTOR COMPANY

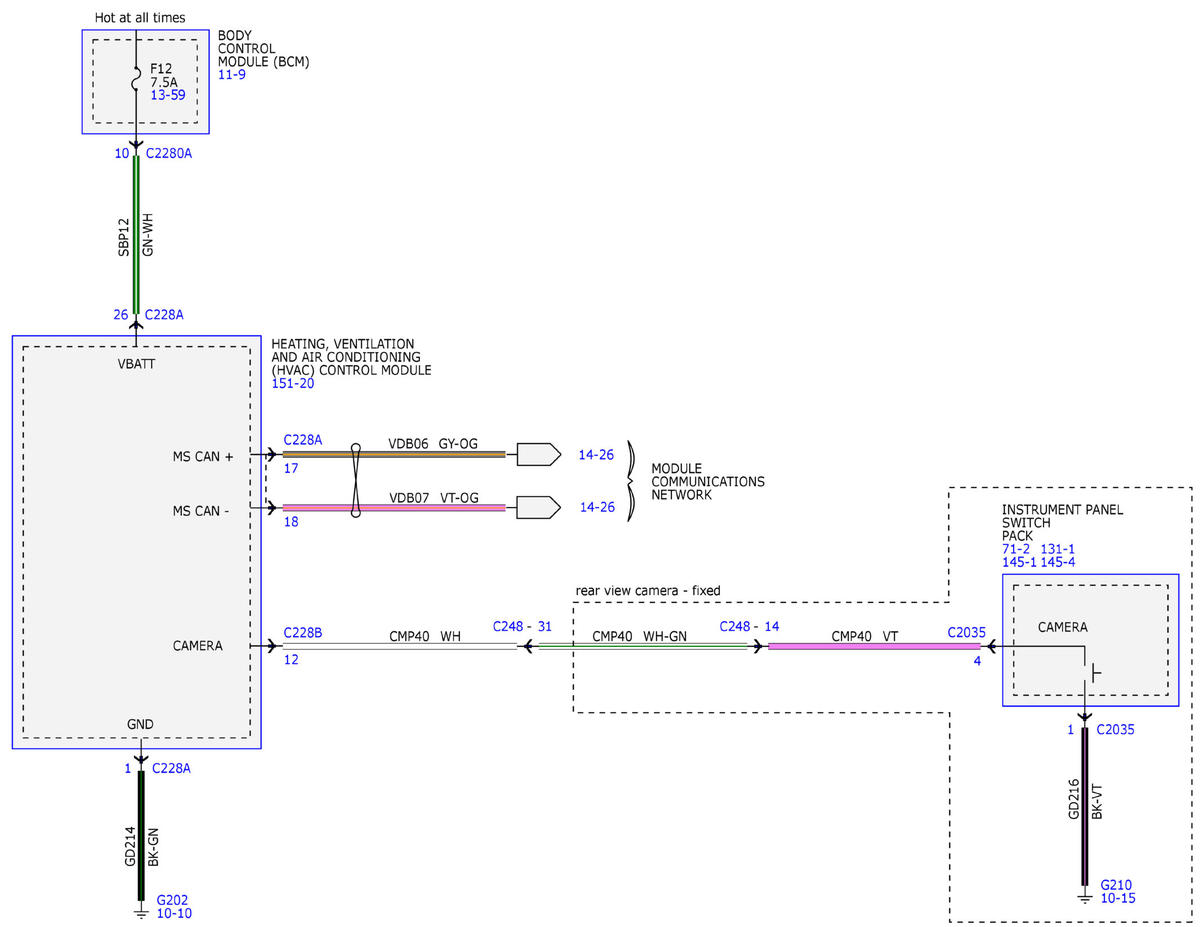

Fig 14: Automatic Climate Control System Wiring Diagram (14 Of 22)

GFDWR110840

Courtesy of FORD MOTOR COMPANY

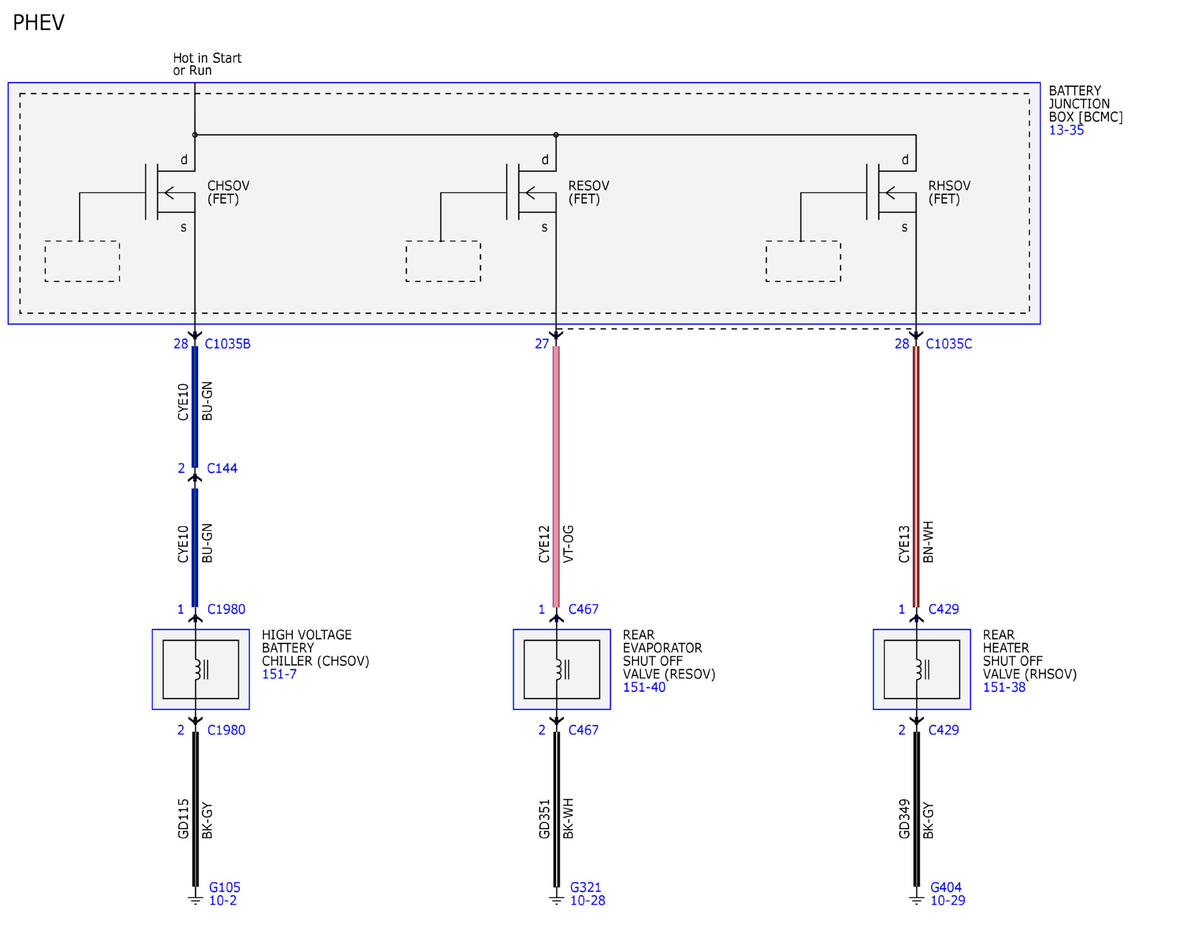

Fig 15: Automatic Climate Control System Wiring Diagram (15 Of 22)

GFDWR110841

Courtesy of FORD MOTOR COMPANY

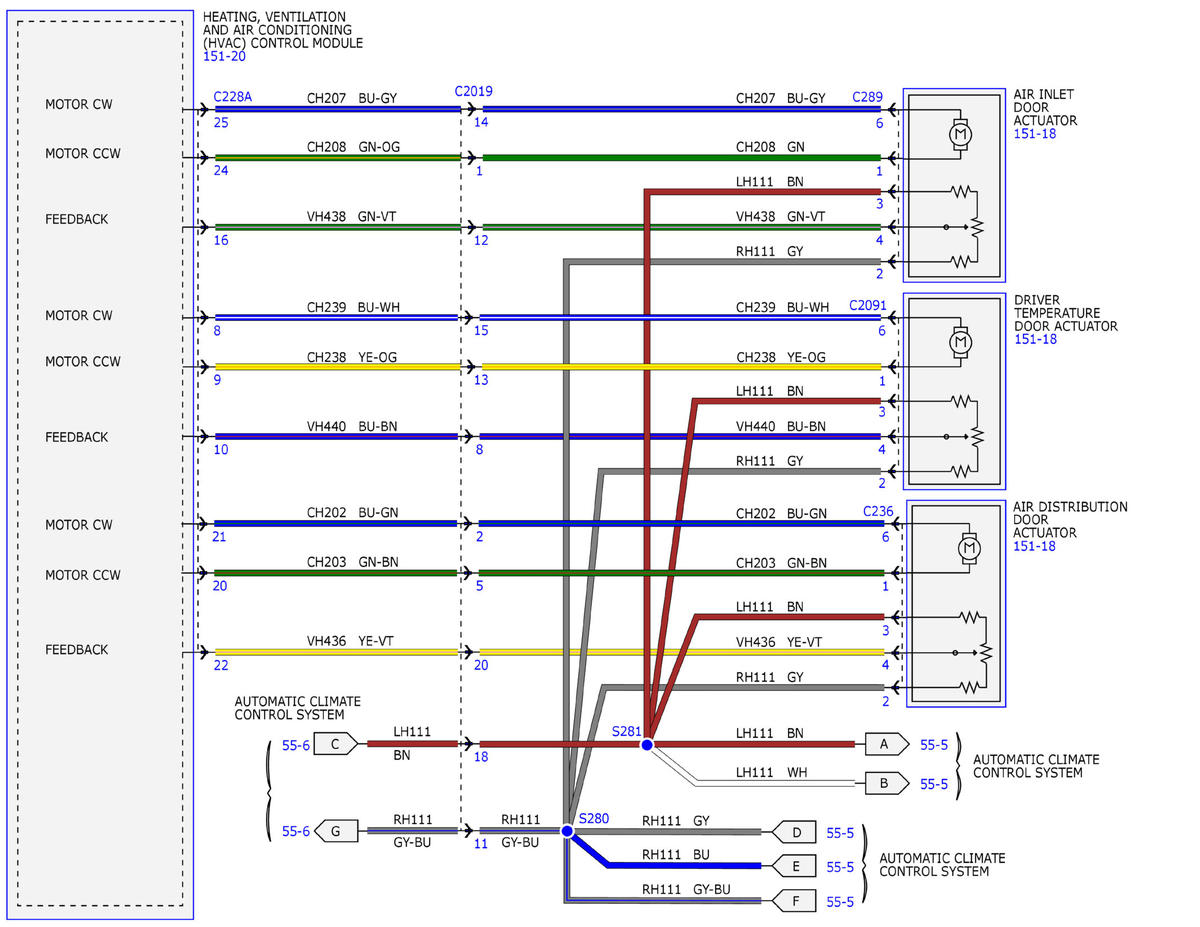

Fig 16: Automatic Climate Control System Wiring Diagram (16 Of 22)

GFDWR110842

Courtesy of FORD MOTOR COMPANY

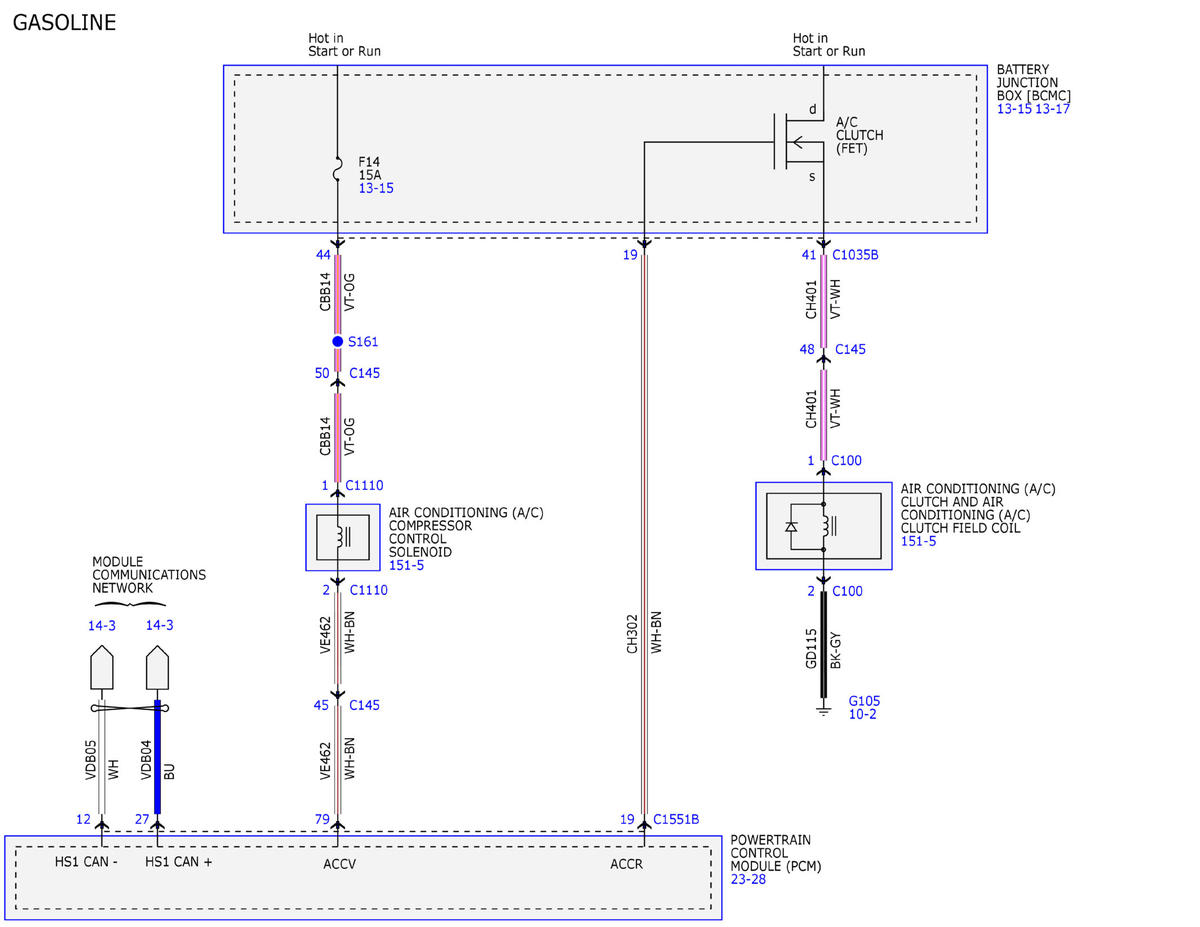

Fig 17: Automatic Climate Control System Wiring Diagram (17 Of 22)

GFDWR110843

Courtesy of FORD MOTOR COMPANY

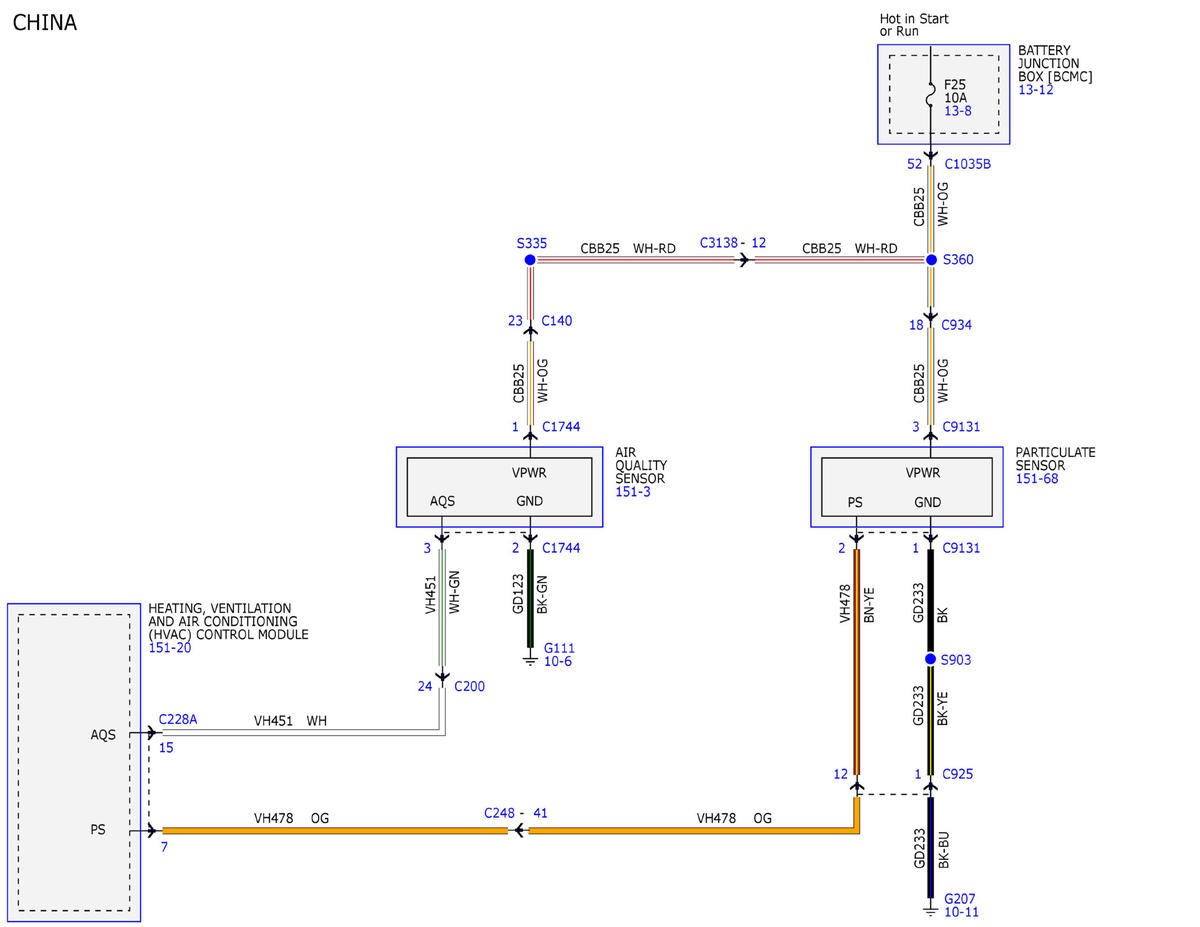

Fig 18: Automatic Climate Control System Wiring Diagram (18 Of 22)

GFDWR110844

Courtesy of FORD MOTOR COMPANY

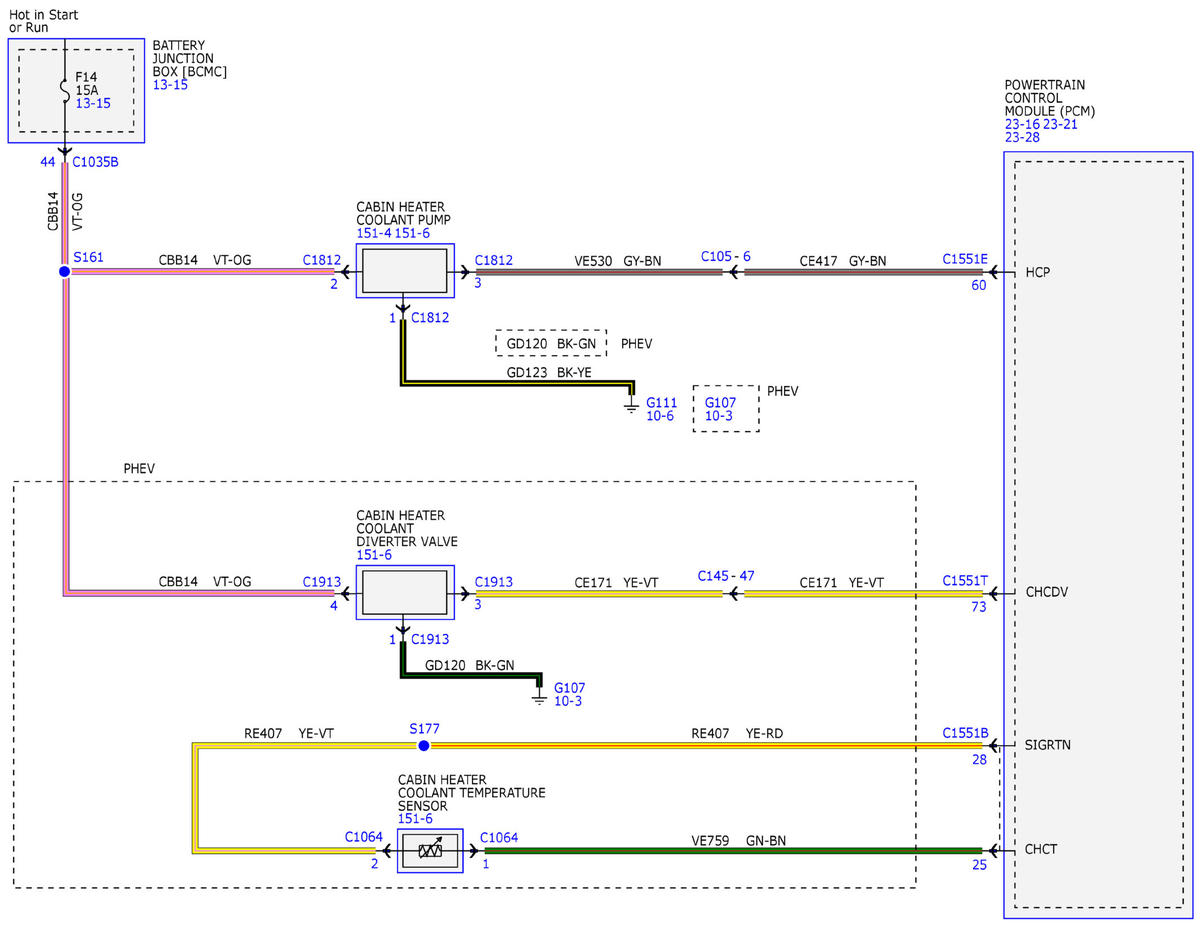

Fig 19: Automatic Climate Control System Wiring Diagram (19 Of 22)

GFDWR110845

Courtesy of FORD MOTOR COMPANY

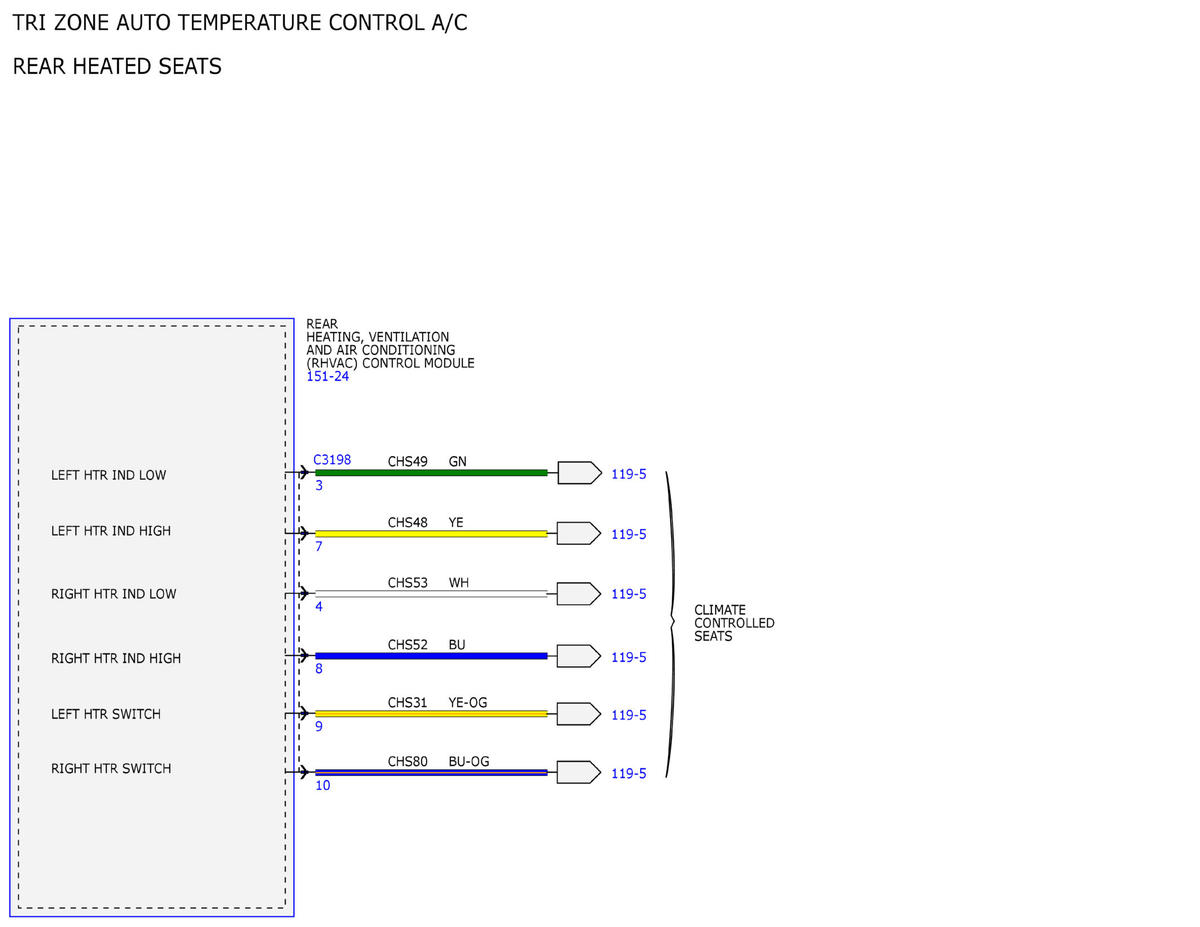

Fig 20: Automatic Climate Control System Wiring Diagram (20 Of 22)

GFDWR110846

Courtesy of FORD MOTOR COMPANY

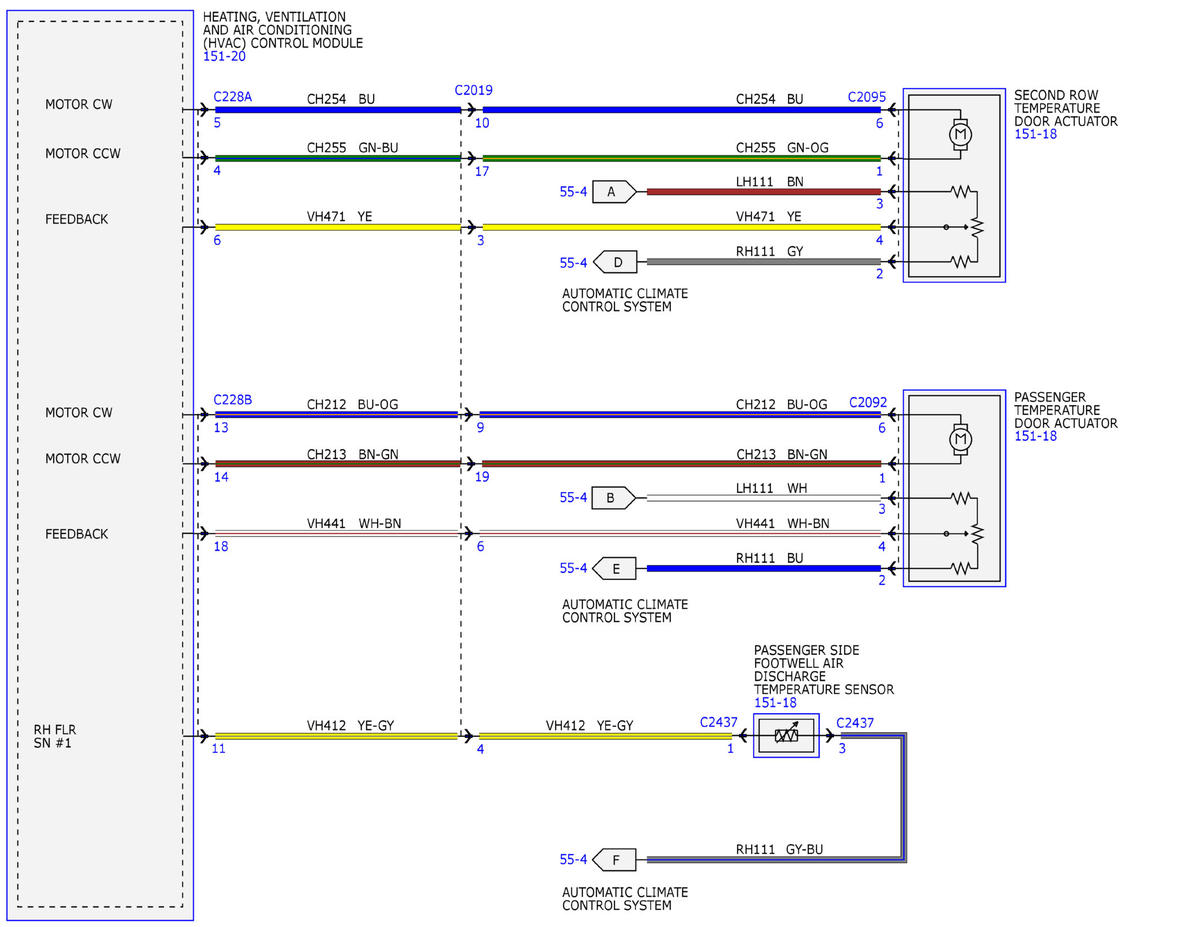

Fig 21: Automatic Climate Control System Wiring Diagram (21 Of 22)

GFDWR110847

Courtesy of FORD MOTOR COMPANY

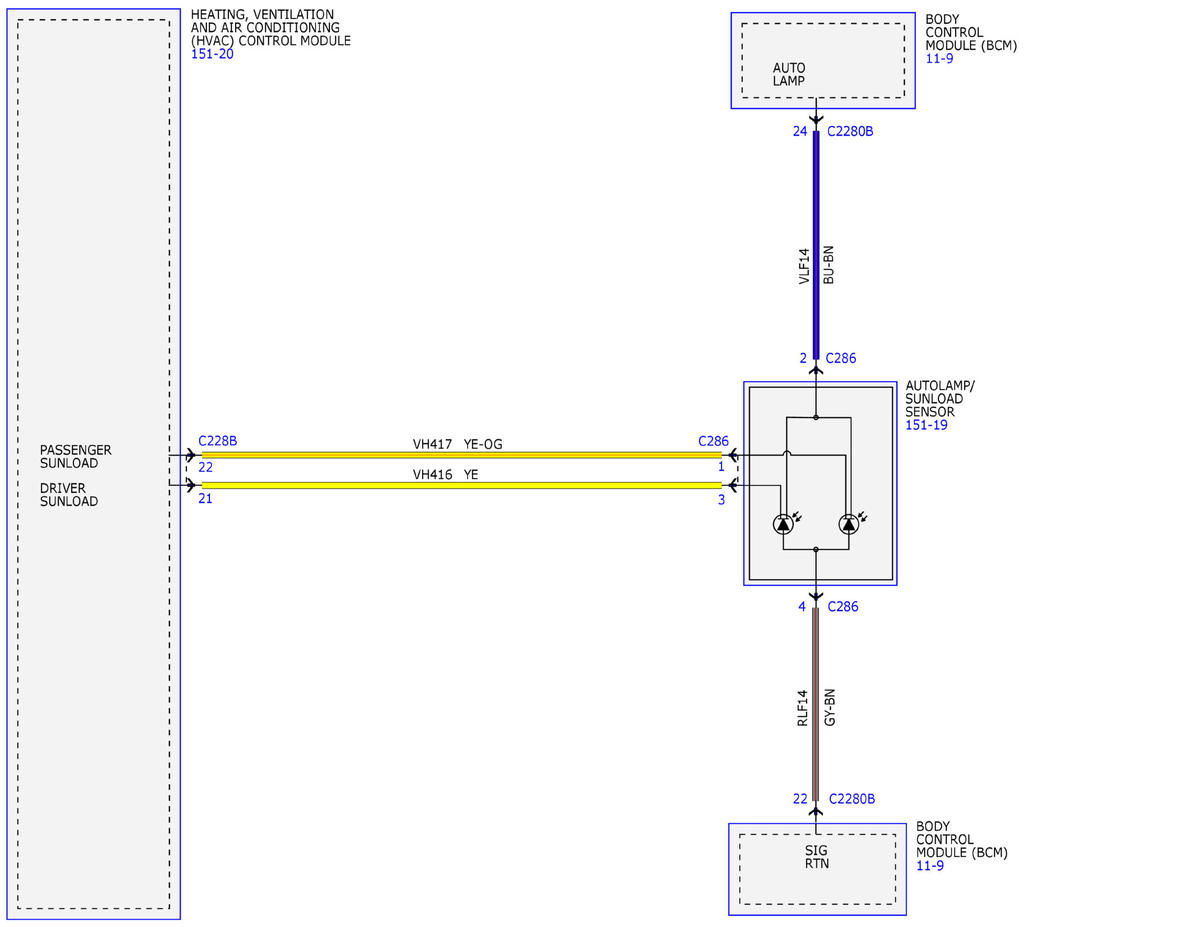

Fig 22: Automatic Climate Control System Wiring Diagram (22 Of 22)

GFDWR110848

Courtesy of FORD MOTOR COMPANY
