Steering Column Opening Seal: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column upper shaft. Refer to: Steering Column Upper Shaft .
  2. Remove the cowl panel. Refer to: Cowl Panel .
    NOTE: Note the position of the components before removal.

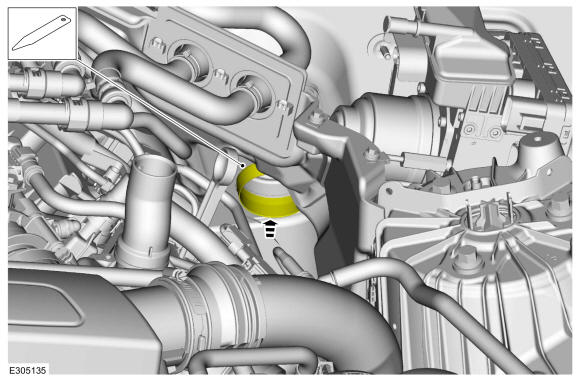

  3. Push the cone into the rubber boot.
    GFD530719Courtesy of FORD MOTOR COMPANY

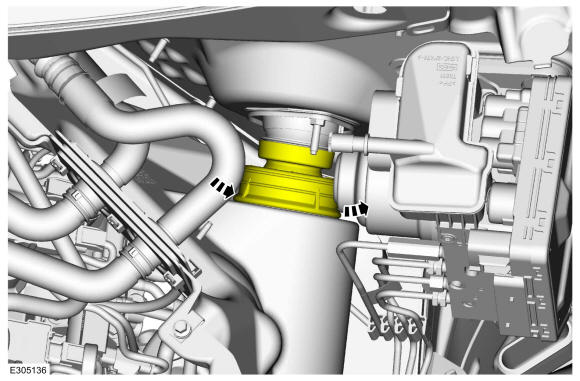

  4. Move the rubber boot aside to gain access to the steering column opening seal retainers.
    GFD530720Courtesy of FORD MOTOR COMPANY

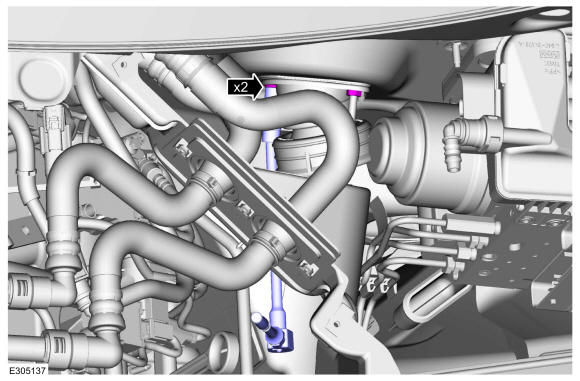

  5. NOTE: Use a 1/4 inch drive wobble extension.

    Remove the steering column opening seal retainers.

    Torque: 106 lb.in (12 Nm)

    GFD530721Courtesy of FORD MOTOR COMPANY

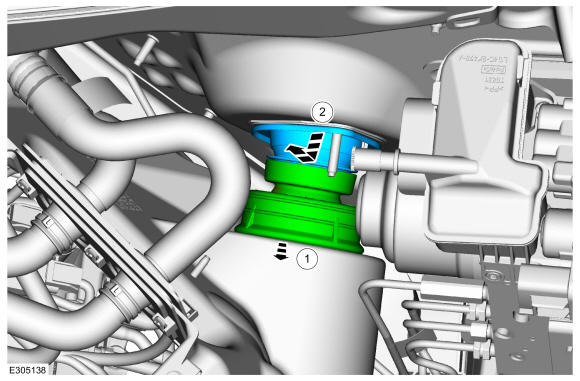

    1. Remove the rubber boot.
    2. Remove the steering column opening seal.
GFD530722Courtesy of FORD MOTOR COMPANY
