Transfer Case

WARNING: This page is about a different car, the 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Remove the catalytic converter. Refer to: Catalytic Converter 2.0L EcoBoost . Refer to: Catalytic Converter 2.3L EcoBoost .
Remove the front halfshaft RH. Refer to: Front Halfshaft RH .

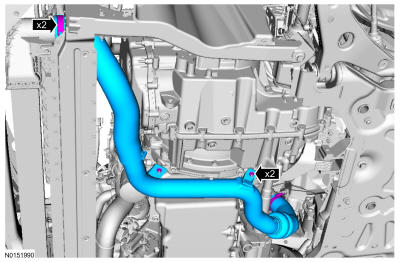

Remove the CAC tube clamps and CAC tube.

Courtesy of FORD MOTOR COMPANY
If equipped. Disconnect the PTU temperature sensor.

Courtesy of FORD MOTOR COMPANY
Remove the PTU heat shield bolts and the PTU heat shield.

Courtesy of FORD MOTOR COMPANY
Disconnect the PTU vent hose.

Courtesy of FORD MOTOR COMPANY

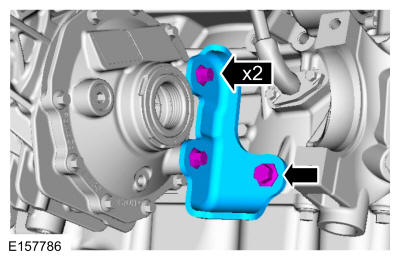

Remove the PTU support bracket bolts and the PTU support bracket.

Courtesy of FORD MOTOR COMPANY
Remove and discard the upper PTU bolts.

Courtesy of FORD MOTOR COMPANY
Remove and discard the lower PTU bolts.

Courtesy of FORD MOTOR COMPANY
Remove the PTU.

Courtesy of FORD MOTOR COMPANY
Remove and discard the PTU compression seal.

Courtesy of FORD MOTOR COMPANY
