Climate Control System - Component Location
WARNING: This page is about a different car, the 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

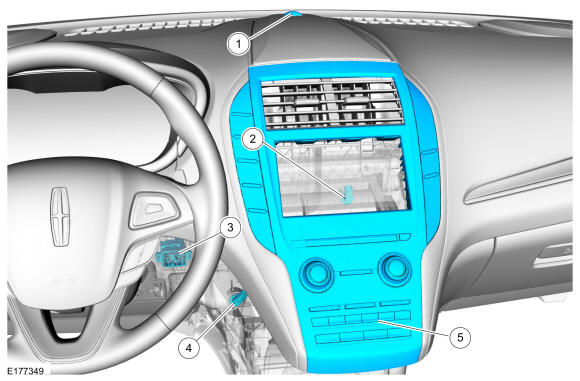

| Item | Description |
|---|---|
| 1 | Sunload sensor |
| 2 | Center register air discharge temperature sensors (right sensor shown, left similar) |
| 3 | In-vehicle temperature and humidity sensor |
| 4 | Footwell air discharge temperature sensors (left sensor shown, right similar) |
| 5 | FCIM |

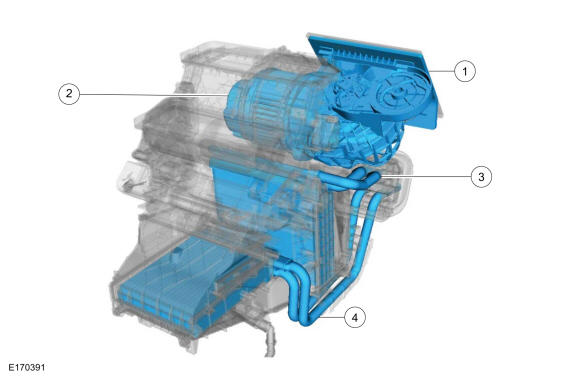

| Item | Description |
|---|---|
| 1 | Air inlet duct |
| 2 | Blower motor |
| 3 | Evaporator |
| 4 | Heater core |

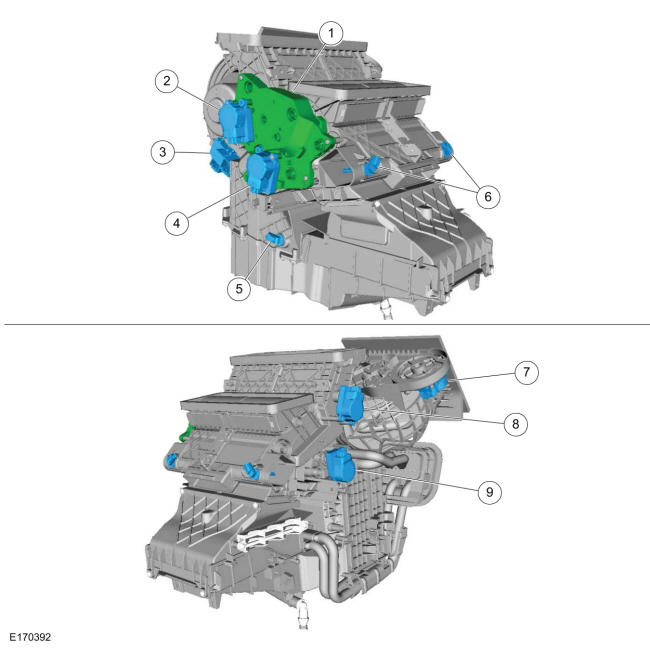

| Item | Description |
|---|---|
| 1 | Actuating assembly |
| 2 | Footwell vent/register door actuator |
| 3 | Blower motor speed control |
| 4 | Driver side temperature door actuator |
| 5 | Evaporator temperature sensor |
| 6 | Footwell air discharge temperature sensors |
| 7 | Air inlet door actuator |
| 8 | Defrost vent door actuator |
| 9 | Passenger side temperature door actuator |

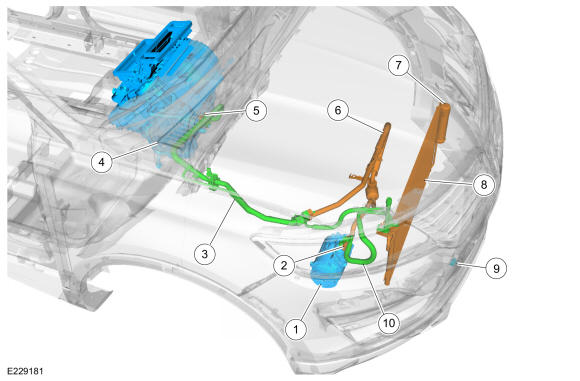

2.0L, 2.3L EcoBoost (FNA)
| Item | Description |
|---|---|
| 1 | A/C compressor |
| 2 | A/C pressure transducer |
| 3 | Evaporator inlet and outlet manifold |
| 4 | Climate control housing |
| 5 | Thermostatic Expansion Valve (TXV) |
| 6 | A/C compressor inlet line |
| 7 | Receiver drier |
| 8 | Condenser |
| 9 | Ambient air temperature sensor |
| 10 | A/C compressor outlet line |

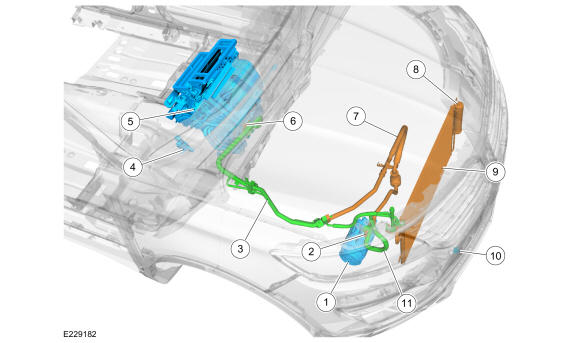

2.0L EcoBoost (Gobi)
| Item | Description |
|---|---|
| 1 | A/C compressor |
| 2 | A/C pressure transducer |
| 3 | Evaporator inlet and outlet manifold |
| 4 | Ambient air quality sensor |
| 5 | Climate control housing |
| 6 | Thermostatic Expansion Valve (TXV) |
| 7 | A/C compressor inlet line |
| 8 | Receiver drier |
| 9 | Condenser |
| 10 | Ambient air temperature sensor |
| 11 | A/C compressor outlet line |

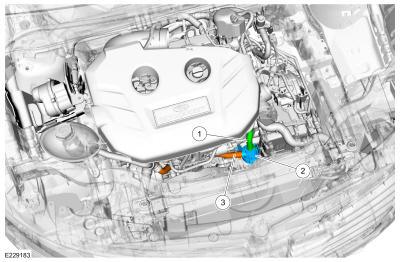

Vehicles equipped with Auto Start Stop
| Item | Description |
|---|---|
| 1 | Cabin heater coolant pump inlet hose |
| 2 | Cabin heater coolant pump |
| 3 | Cabin heater coolant pump outlet hose |
