Overhead Console: Removal

  1. Starting at the back, release the clips and remove the overhead console.

    • Disconnect the electrical connectors.

      Use the General Equipment: Interior Trim Remover

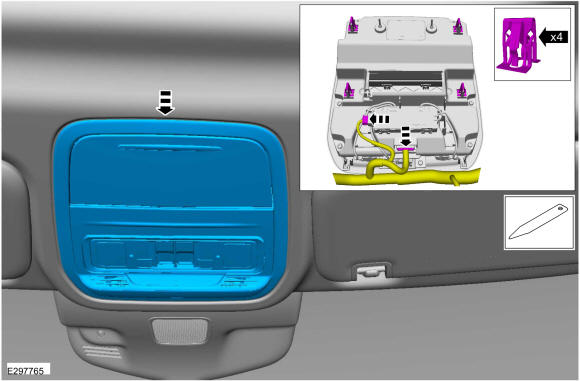

GFD534962Courtesy of FORD MOTOR COMPANY
