Instrument Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  2. Evacuate the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .

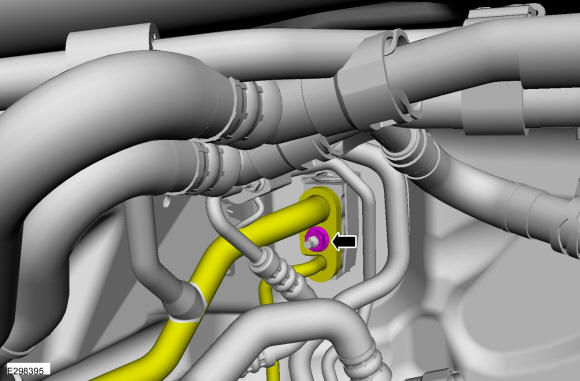

  3. Remove the nut from the thermostatic expansion valve manifold and tube assembly.

    Torque: 155 lb.in (17.5 Nm)

    GFD534924Courtesy of FORD MOTOR COMPANY
  4. Remove the wiper linkage assembly. Refer to: Wiper Linkage Assembly .

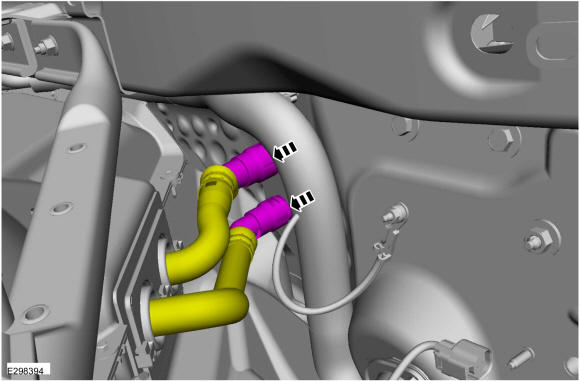

  5. NOTE: Plug the heater core tubes.

    Disconnect the heater hoses.

    GFD534925Courtesy of FORD MOTOR COMPANY

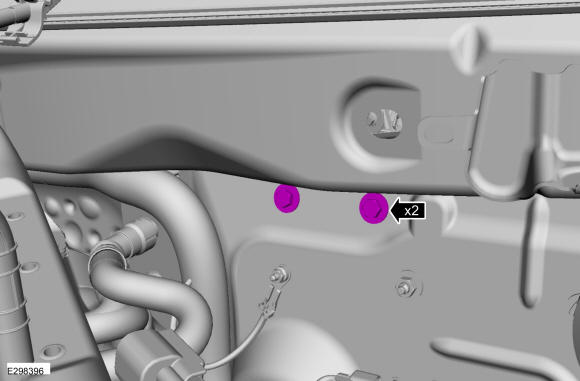

  6. Remove the LH cowl to in-vehicle cross beam bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD534926Courtesy of FORD MOTOR COMPANY

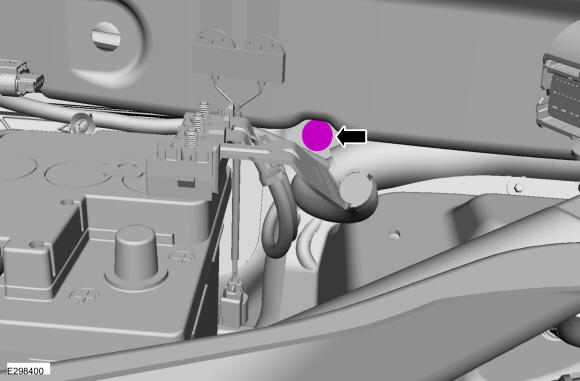

  7. Remove the RH cowl to in-vehicle cross beam bolt.

    Torque: 26 lb.ft (35 Nm)

    GFD534927Courtesy of FORD MOTOR COMPANY
  8. Remove the floor console. Refer to: Floor Console .

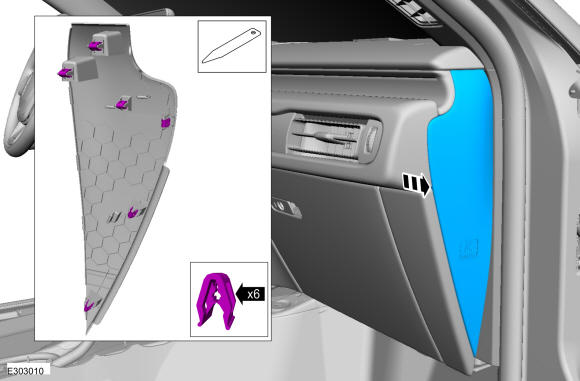

  9. Release the clips and remove the RH instrument panel end cap.

    Use the General Equipment: Interior Trim Remover

    GFD534928Courtesy of FORD MOTOR COMPANY

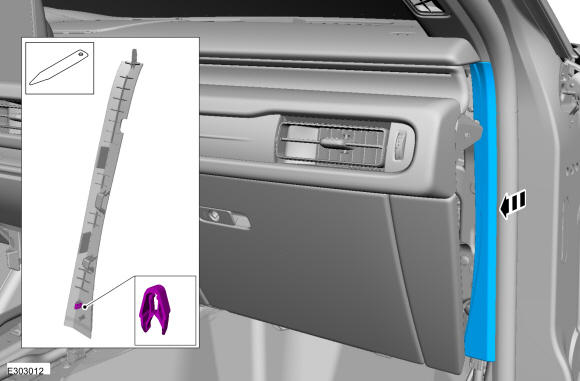

  10. Release the clip and remove RH instrument panel gap panel.

    Use the General Equipment: Interior Trim Remover

    GFD534929Courtesy of FORD MOTOR COMPANY

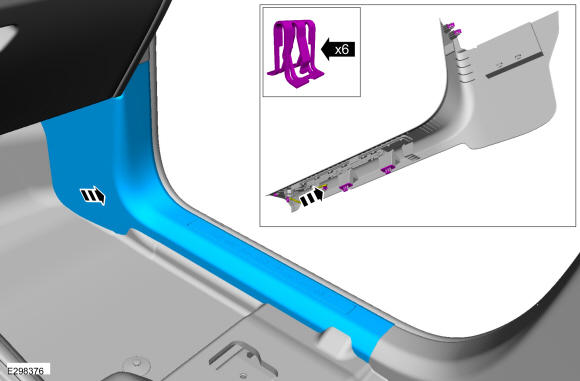

  11. Release the clips and remove the RH scuff plate.

    • Disconnect the electrical connector.

    GFD534930Courtesy of FORD MOTOR COMPANY

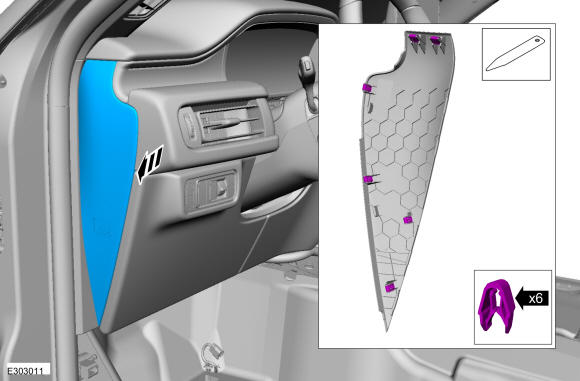

  12. Release the clips and remove the LH instrument panel end cap.

    Use the General Equipment: Interior Trim Remover

    GFD534931Courtesy of FORD MOTOR COMPANY

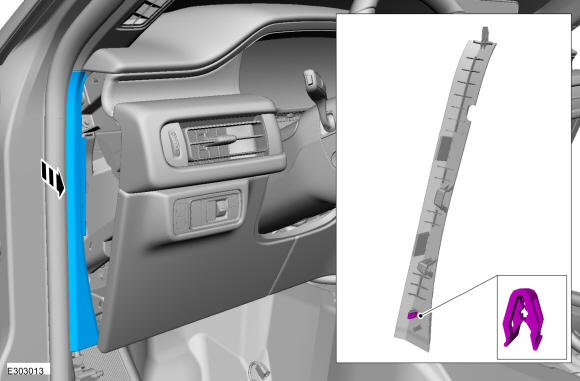

  13. Release the clip and remove LH instrument panel gap panel.
    GFD534932Courtesy of FORD MOTOR COMPANY

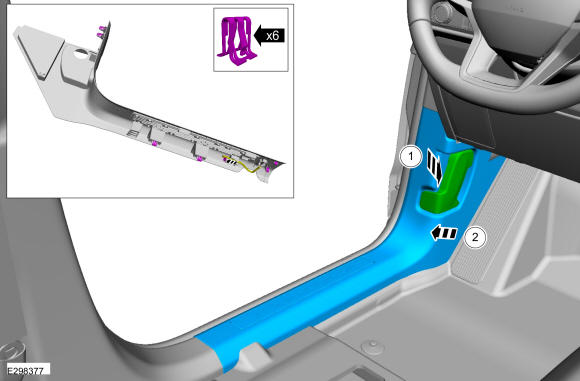

  14. Remove the LH scuff plate

    1. Remove the hood latch release handle.
    2. Release the clips, disconnect the electrical connector and remove the LH scuff plate.

    GFD534933Courtesy of FORD MOTOR COMPANY
  15. Remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .

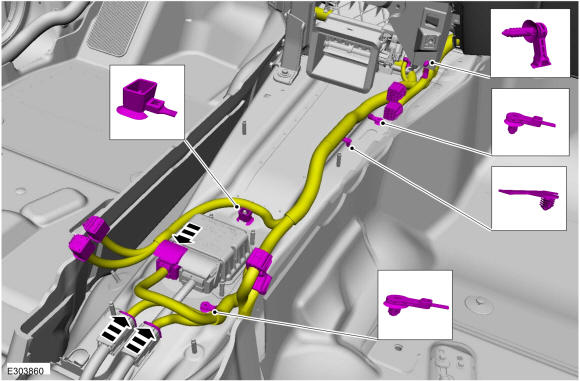

  16. Disconnect the electrical connectors, release the harness retainers and position aside the electrical harness.
    GFD534934Courtesy of FORD MOTOR COMPANY

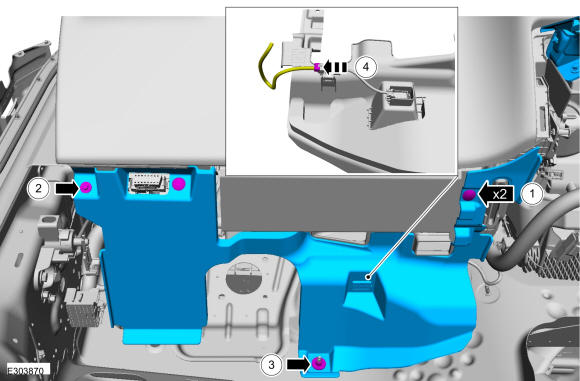

  17. Remove the LH insulation panel.

    1. Remove the push pins
    2. Remove the bolt.
    3. Remove the nut.
    4. Disconnect the electrical connector.

    GFD534935Courtesy of FORD MOTOR COMPANY

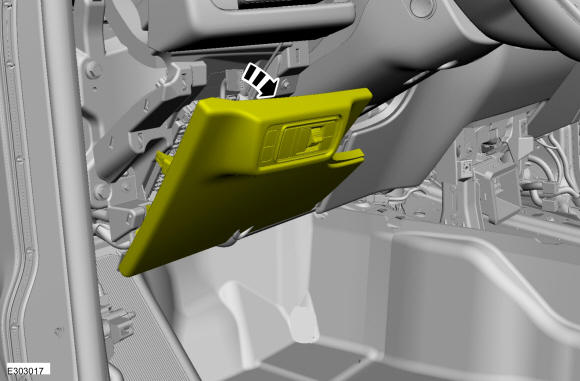

  18. Lower the steering column opening trim panel.
    GFD534936Courtesy of FORD MOTOR COMPANY

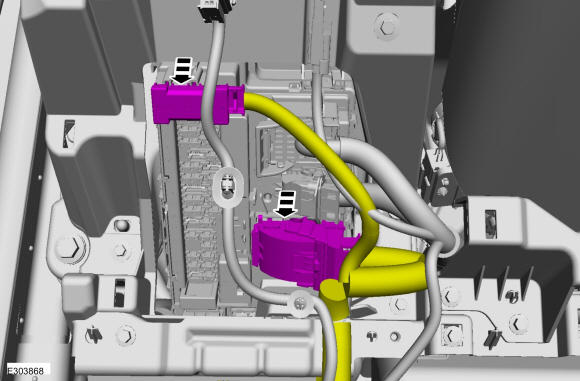

  19. NOTE: Accessed through the steering column opening trim panel.

    Disconnect the electrical connectors.

    GFD534937Courtesy of FORD MOTOR COMPANY

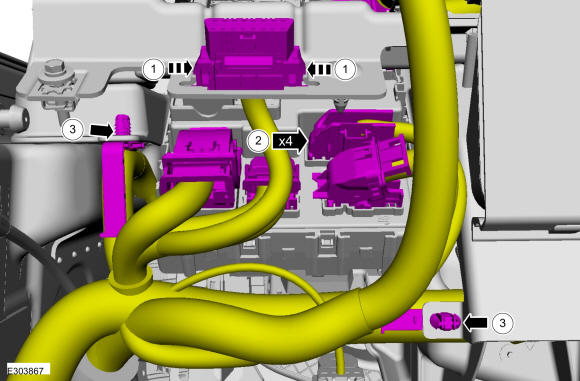

    1. Depress the tabs and position aside the electrical harness.
    2. Disconnect the electrical connectors.
    3. Detach the harness retainers.
    GFD534938Courtesy of FORD MOTOR COMPANY

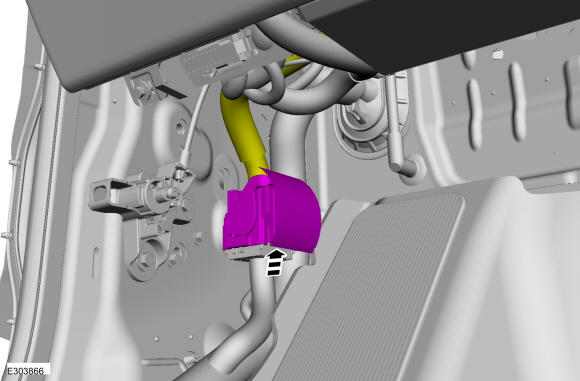

  21. Disconnect the electrical connector.
    GFD534939Courtesy of FORD MOTOR COMPANY

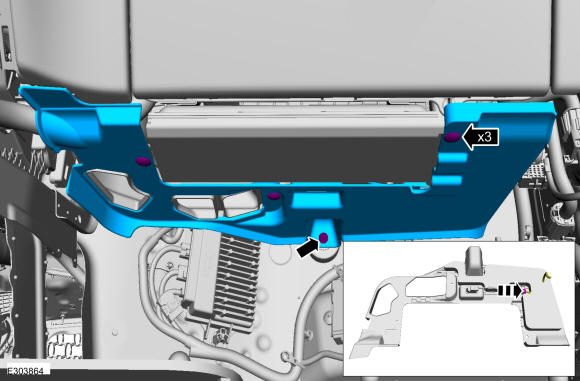

  22. Remove the pushpins the nut and the RH insulation panel.
    GFD534940Courtesy of FORD MOTOR COMPANY

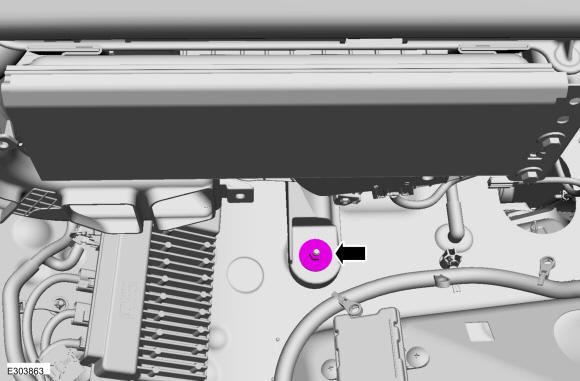

  23. Remove the nut.

    Torque: 62 lb.in (7 Nm)

    GFD534941Courtesy of FORD MOTOR COMPANY

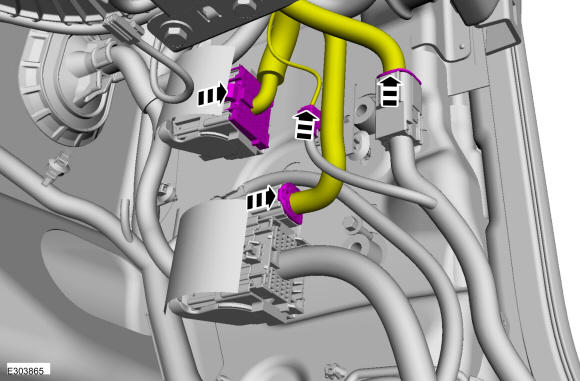

  24. Disconnect the electrical connectors.
    GFD534942Courtesy of FORD MOTOR COMPANY

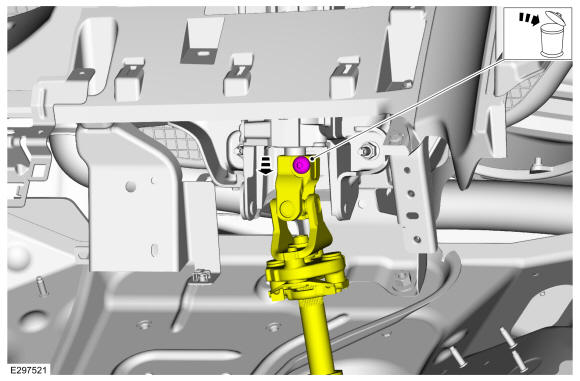

  25. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the steering column shaft bolt and separate the steering column shaft from the steering column.

    Torque: 22 lb.ft (30 Nm)

    GFD534943Courtesy of FORD MOTOR COMPANY

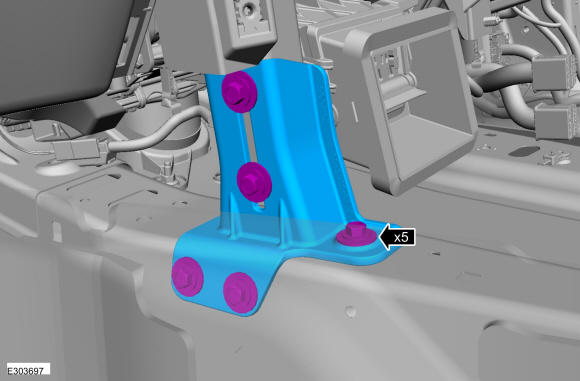

  26. Remove the bolts and the instrument panel center support bracket.

    Torque: 106 lb.in (12 Nm)

    GFD534944Courtesy of FORD MOTOR COMPANY
  27. NOTE: Leave one bolt finger tight to hold the instrument panel in place prior to the final step.

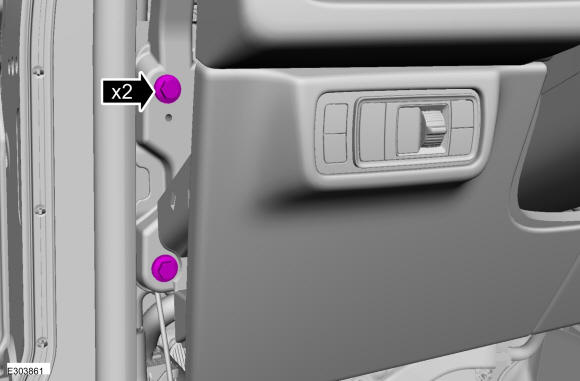

    Remove the LH instrument panel to a-pillar bolts.

    Torque: 26 lb.ft (35 Nm)

    GFD534945Courtesy of FORD MOTOR COMPANY

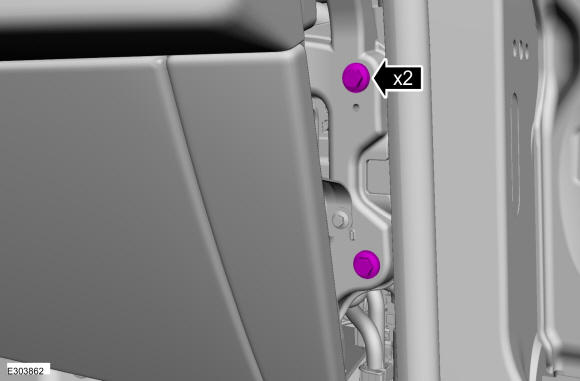

  28. NOTE: Leave one bolt finger tight to hold the instrument panel in place prior to the final step.

    Remove the RH instrument panel to a-pillar bolts.

    Torque: 26 lb.ft (35 Nm)

    GFD534946Courtesy of FORD MOTOR COMPANY

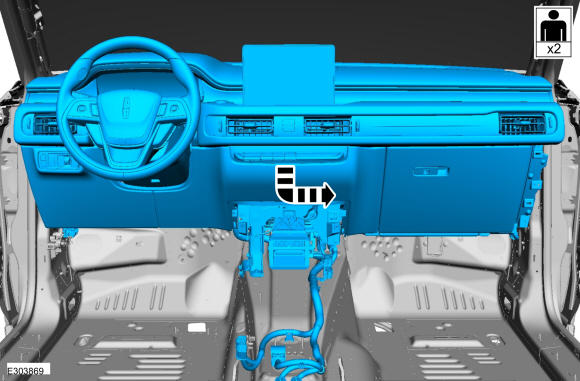

  29. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.
    NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    Remove the instrument panel through the RH door opening.

GFD534947Courtesy of FORD MOTOR COMPANY
