Battery Tray: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

1. Remove the battery. Refer to: Battery .

   Vehicles with H7 AGM battery

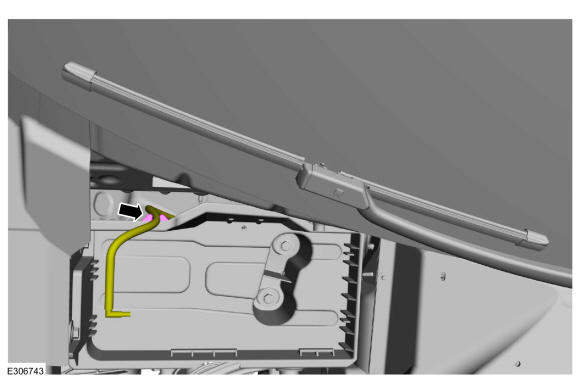

2. Detach the battery vent hose from the battery tray.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with H8 AGM battery

3. Detach the battery vent hose from the battery tray.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

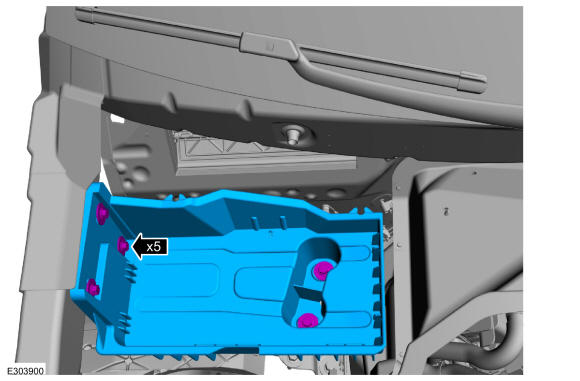

4. Remove the bolts and the battery tray.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
