Connector Repair Procedures

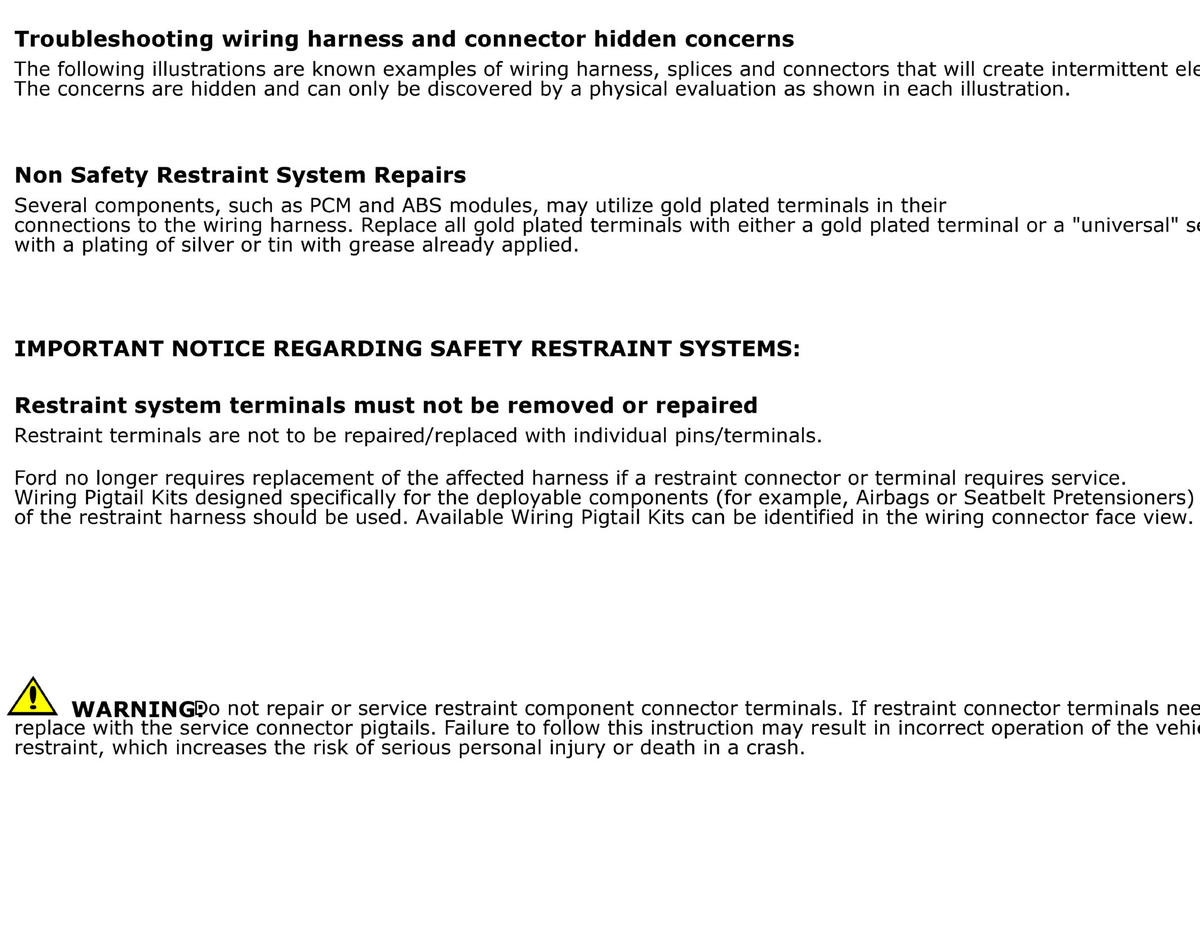

GFDWR110725Courtesy of FORD MOTOR COMPANY

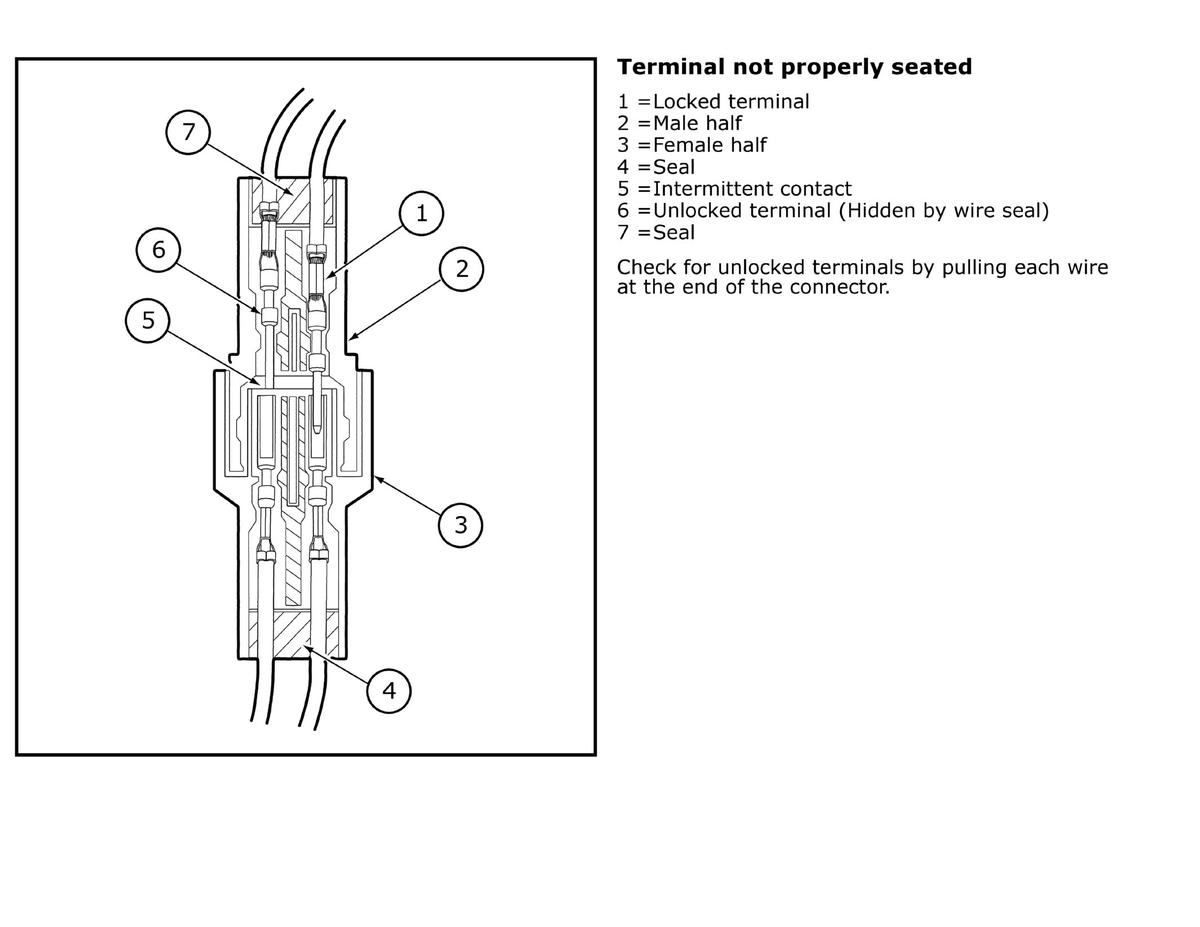

GFDWR110719Courtesy of FORD MOTOR COMPANY

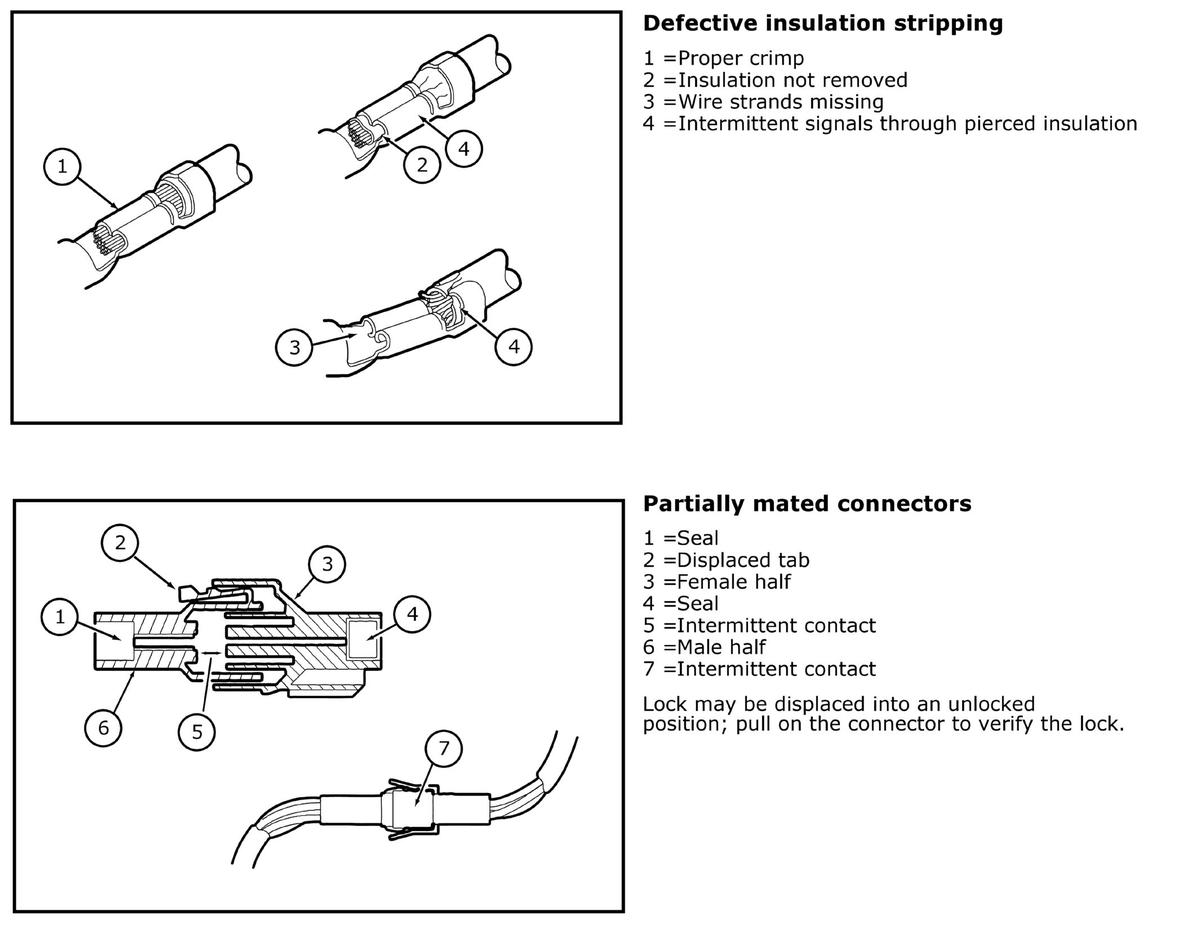

GFDWR110723Courtesy of FORD MOTOR COMPANY

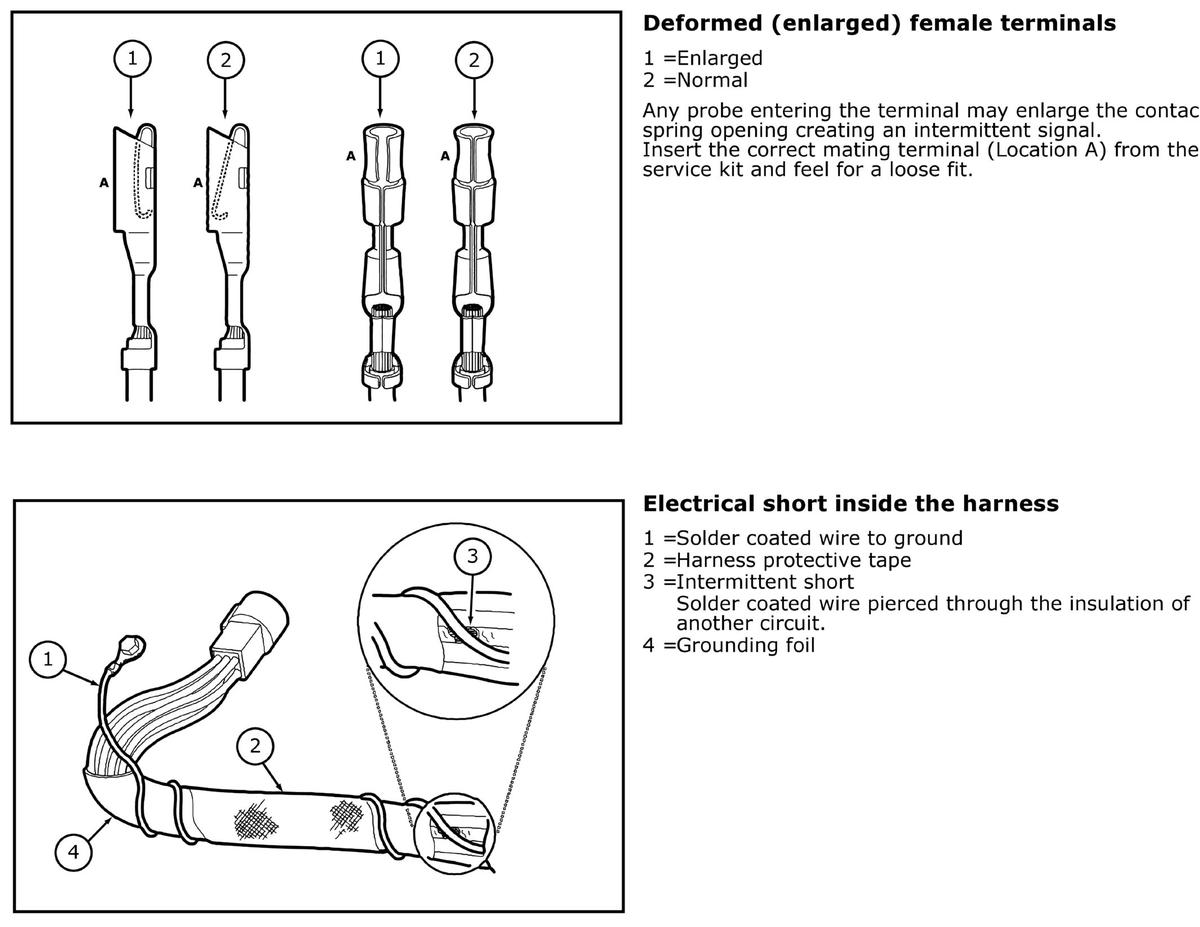

GFDWR110726Courtesy of FORD MOTOR COMPANY

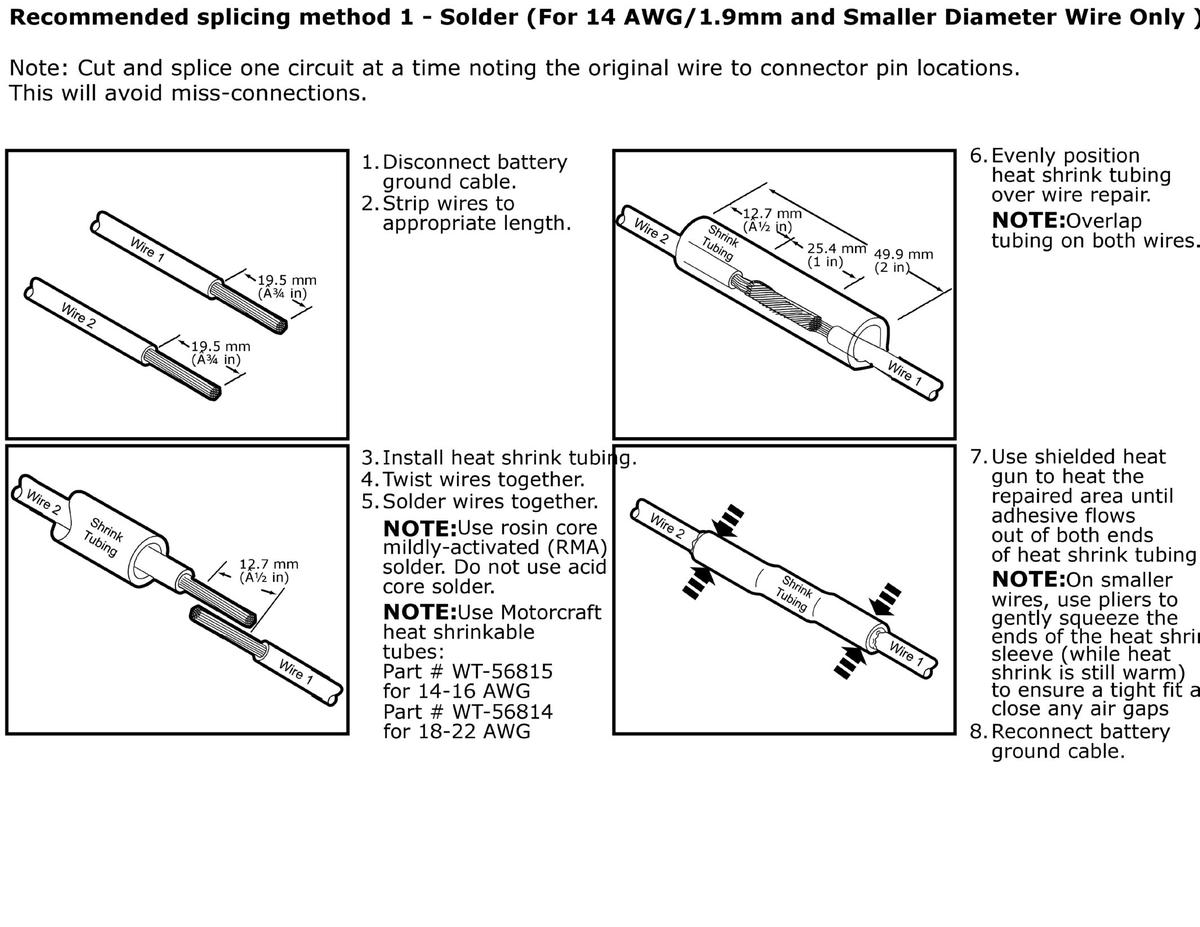

GFDWR110727Courtesy of FORD MOTOR COMPANY

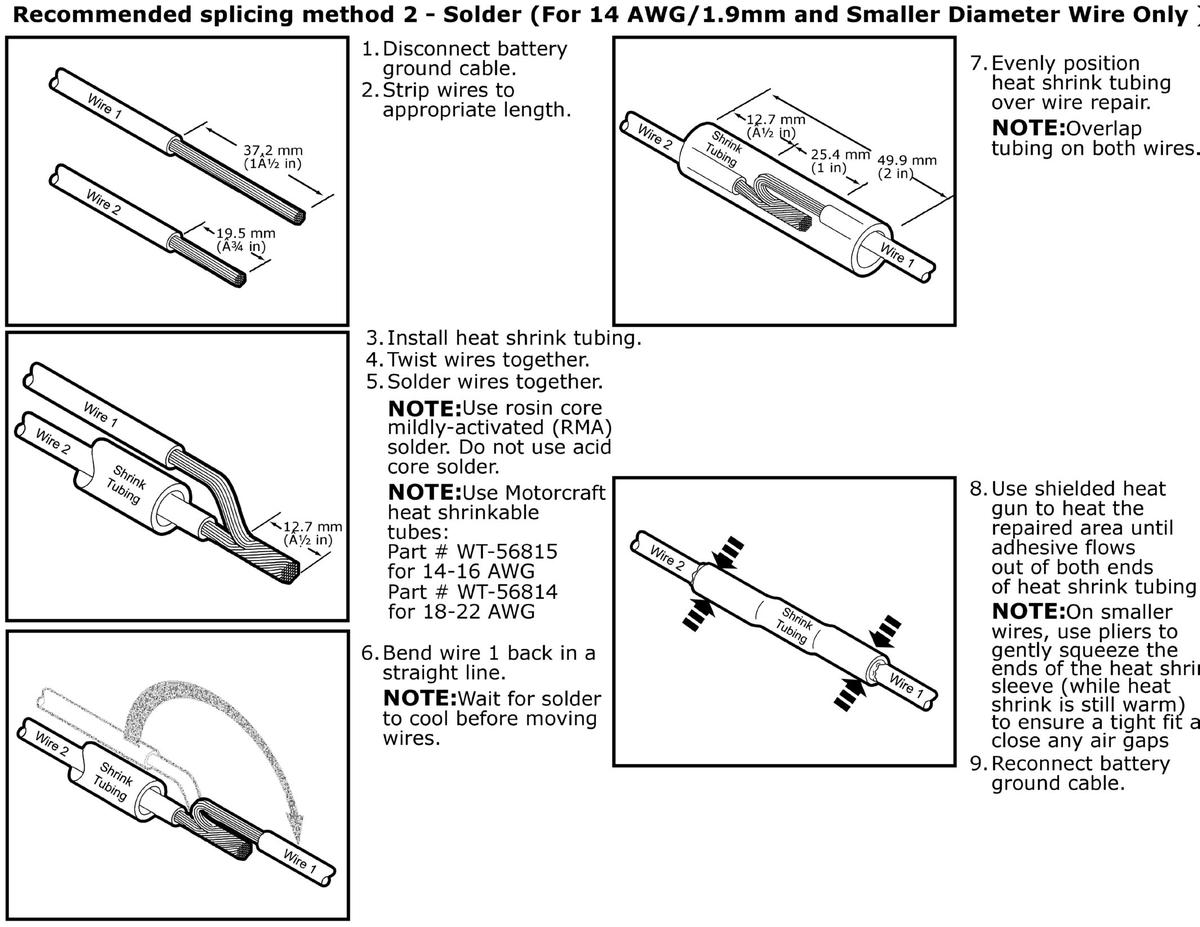

GFDWR110724Courtesy of FORD MOTOR COMPANY

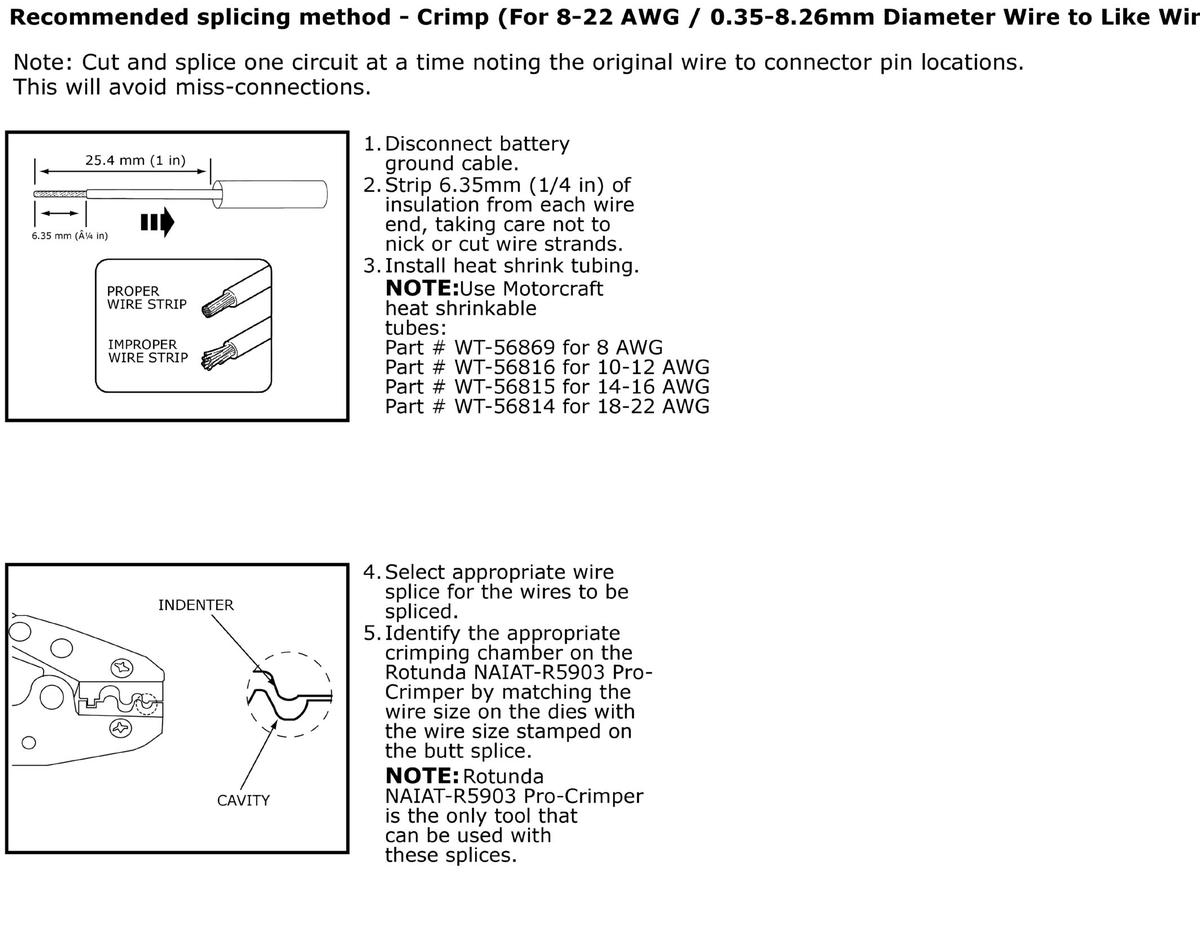

GFDWR110722Courtesy of FORD MOTOR COMPANY

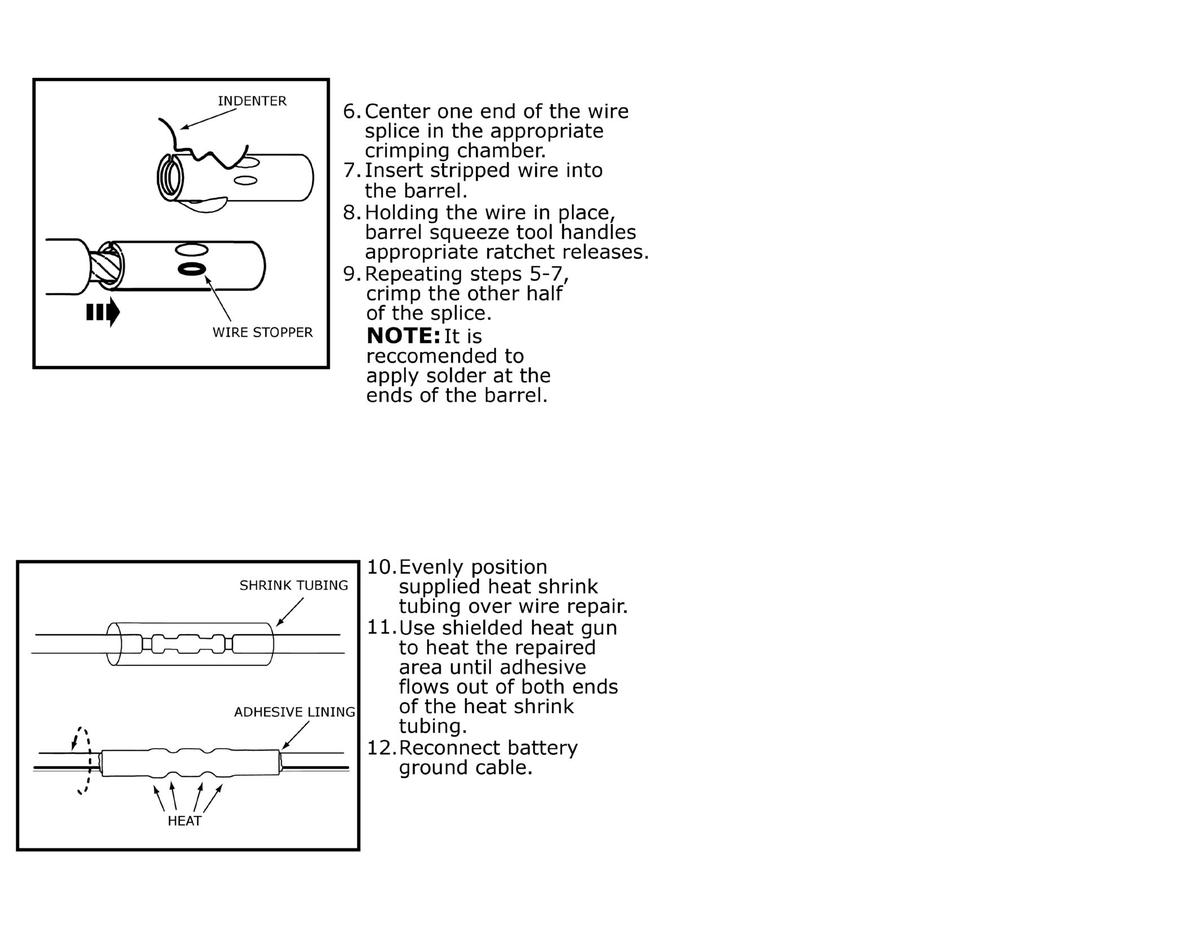

GFDWR110721Courtesy of FORD MOTOR COMPANY

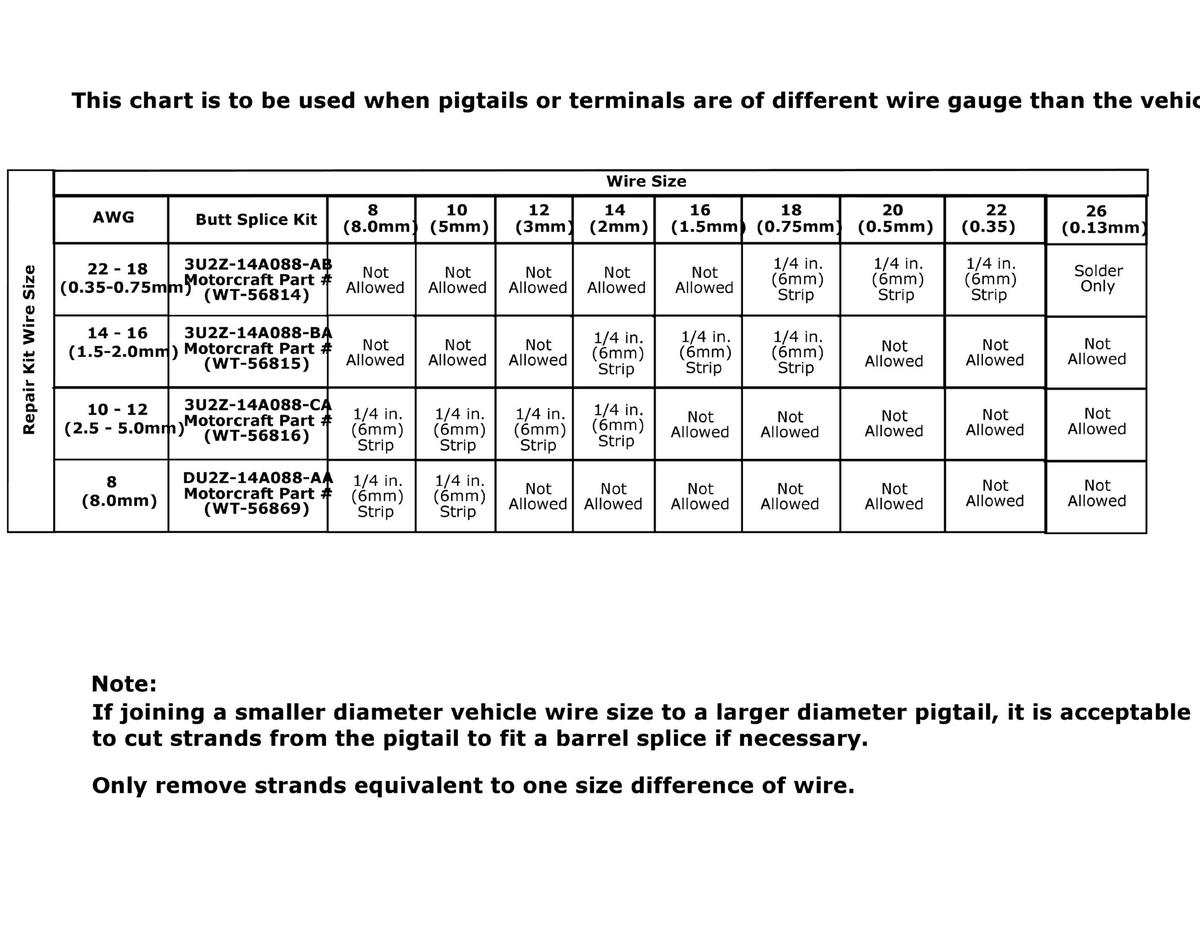

GFDWR110720Courtesy of FORD MOTOR COMPANY
