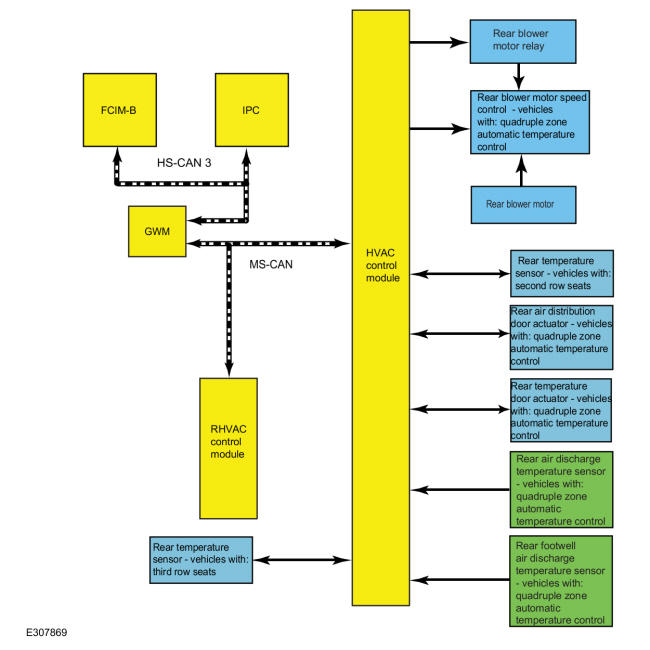

Rear Heating, Ventilation and Air Conditioning (RHVAC) Control Module - Vehicles With: Quadruple Zone Automatic Temperature Control

GFD533587

Courtesy of FORD MOTOR COMPANY
