Light Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

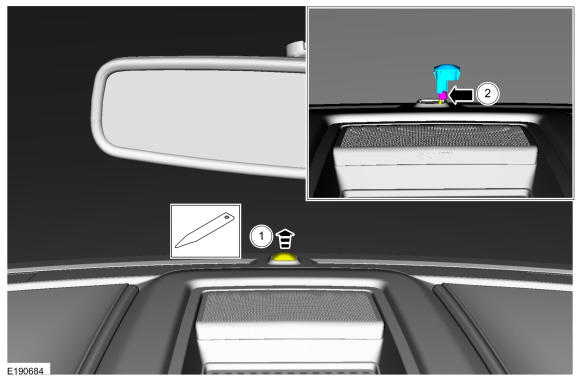

  1. Remove the light sensor.

    1. Using a non-marring tool release and position up the light sensor.
    2. Disconnect the light sensor electrical connector.

GFD206034Courtesy of FORD MOTOR COMPANY
