Intrusion Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console. Refer to: Overhead Console .

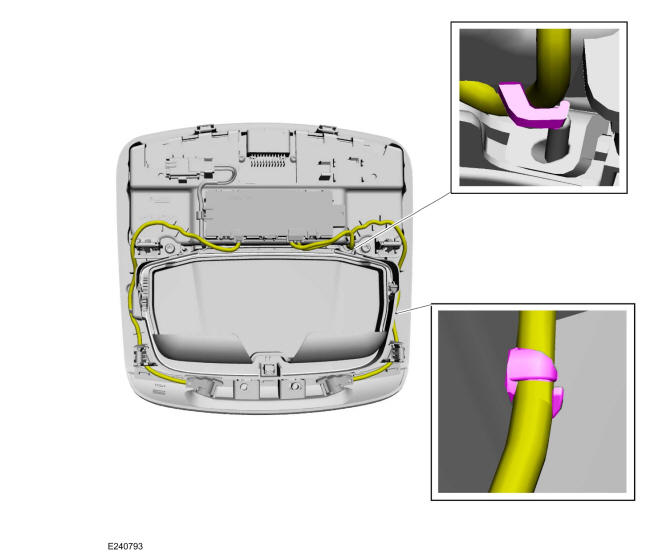

  2. Position the intrusion sensor wiring harness aside.
    GFD238375Courtesy of FORD MOTOR COMPANY

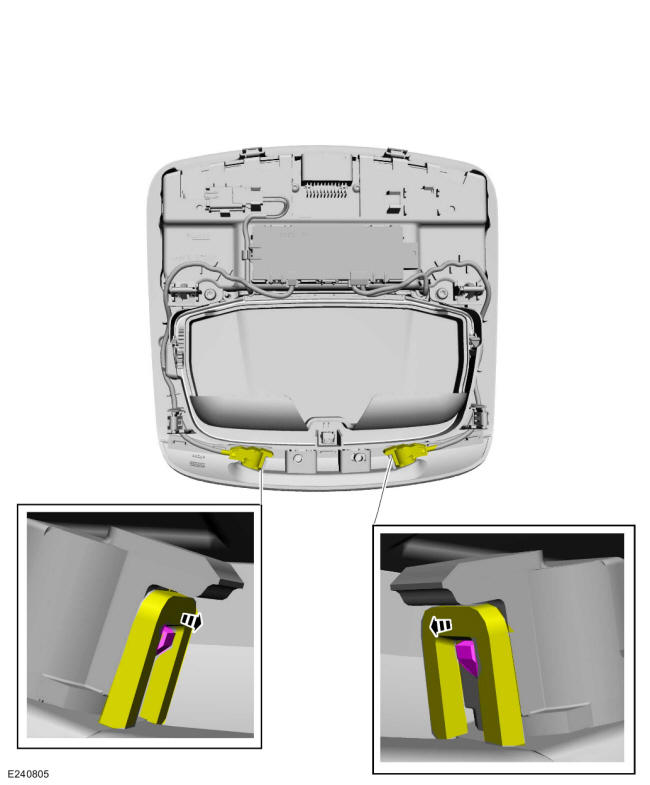

  3. Release the tabs and position the front sensors aside.
    GFD238376Courtesy of FORD MOTOR COMPANY

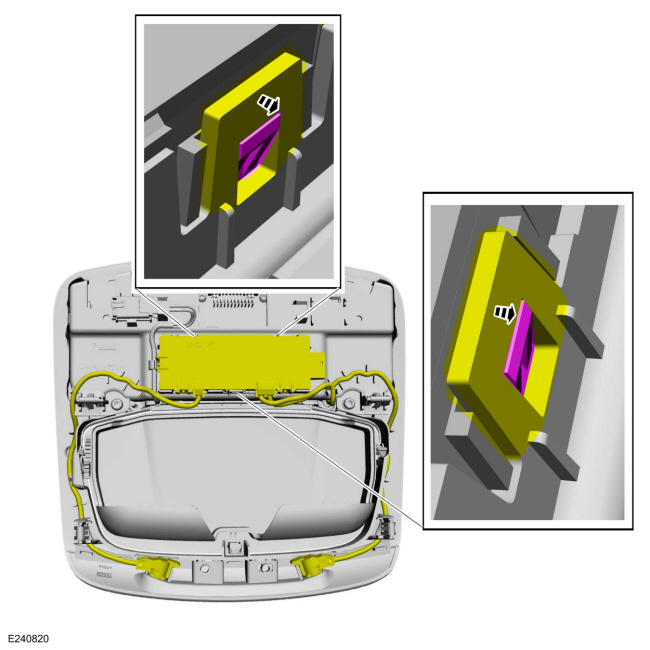

  4. Release the tabs and position the intrusion sensor assembly aside.
    GFD238377Courtesy of FORD MOTOR COMPANY

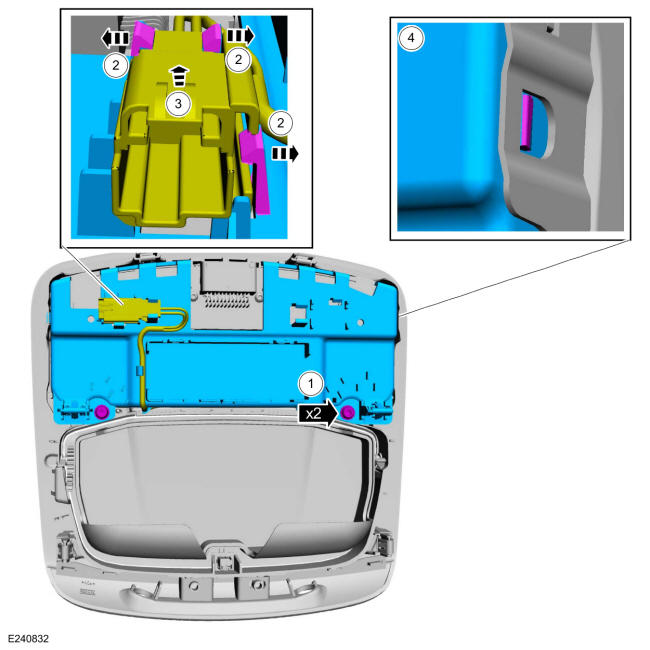

    1. Remove the overhead console cover screws.
    2. Release the tabs.
    3. Position the overhead console wiring harness connector aside.
    4. NOTE: RH shown, LH similar.

      On both sides. Release the tabs and remove the overhead console cover.

    GFD238378Courtesy of FORD MOTOR COMPANY

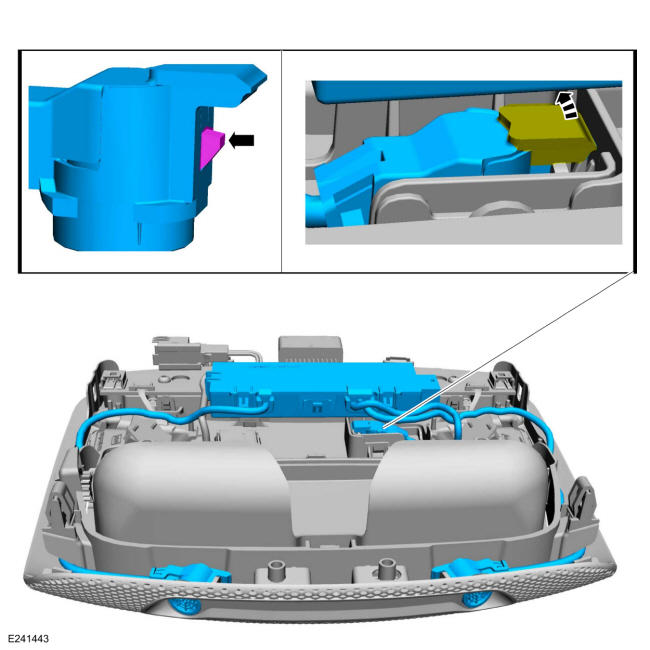

  6. Release the tab and remove the intrusion sensor assembly.
GFD238379Courtesy of FORD MOTOR COMPANY
