Connector Repair Procedures

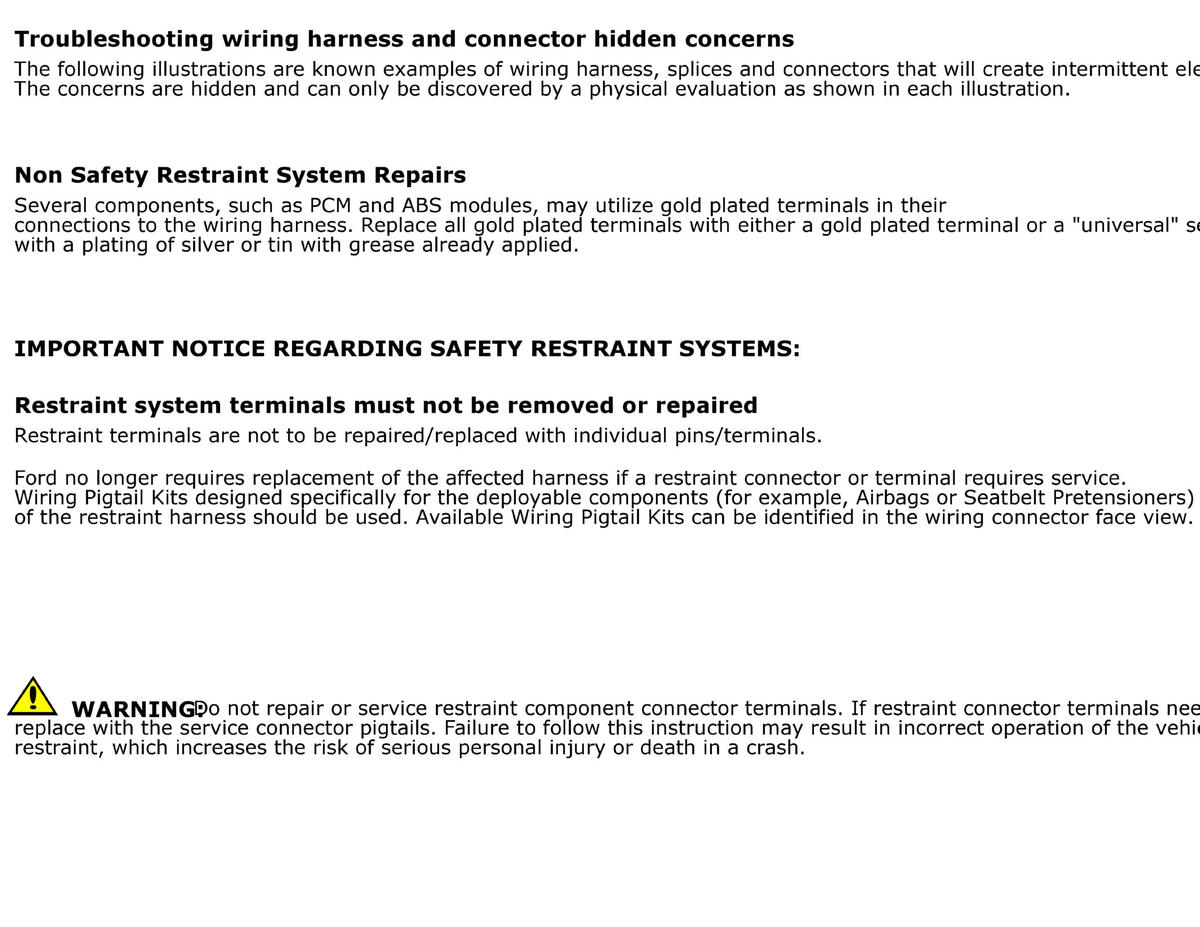

GFDWR117209Courtesy of FORD MOTOR COMPANY

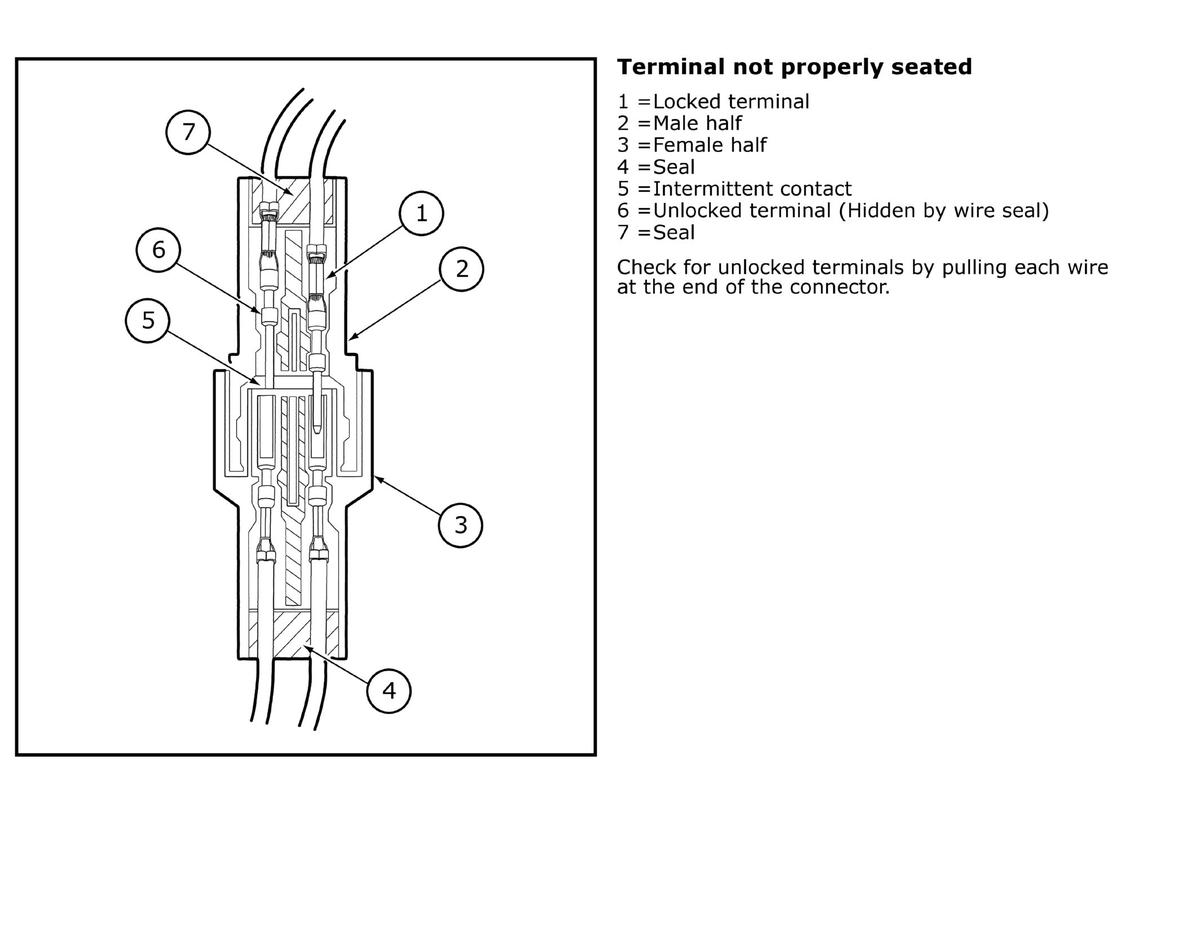

GFDWR117203Courtesy of FORD MOTOR COMPANY

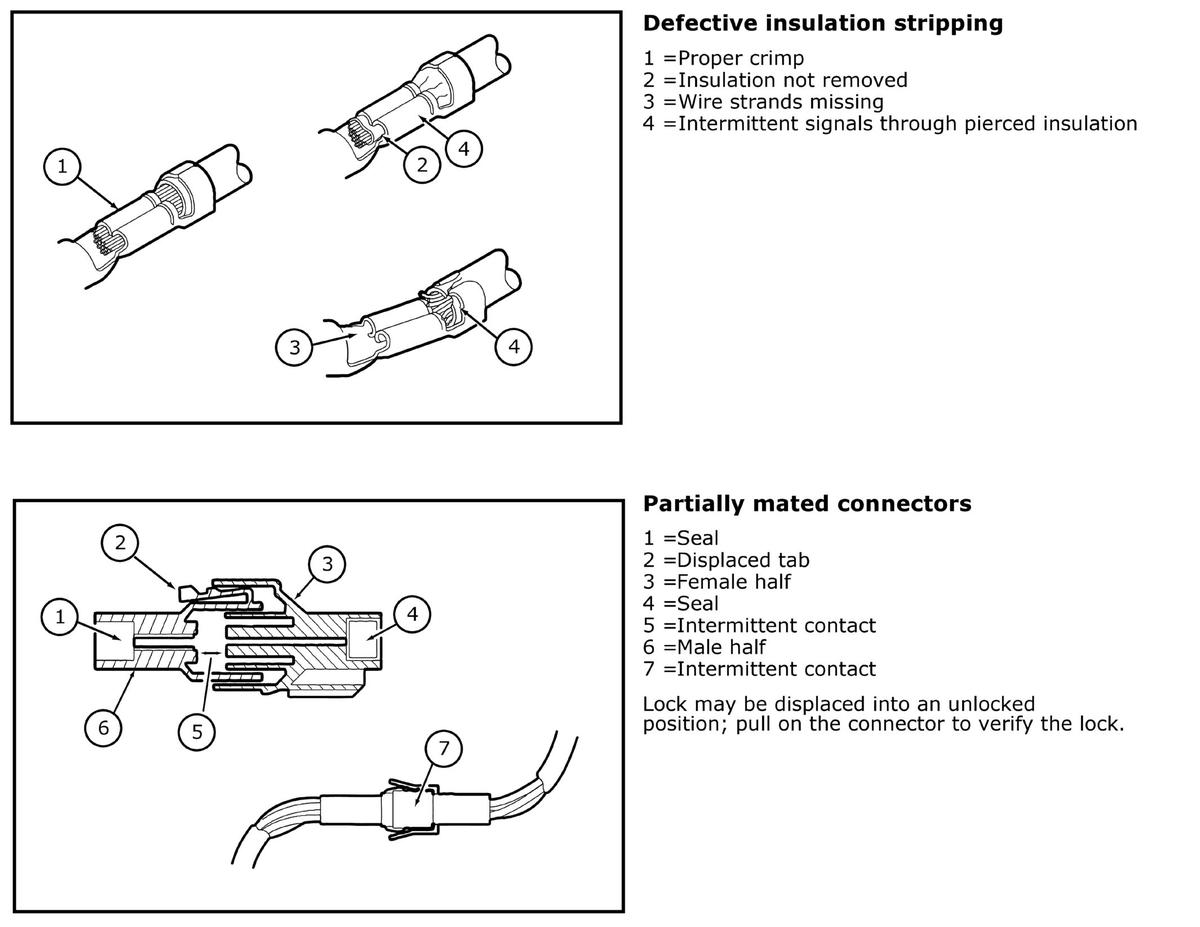

GFDWR117207Courtesy of FORD MOTOR COMPANY

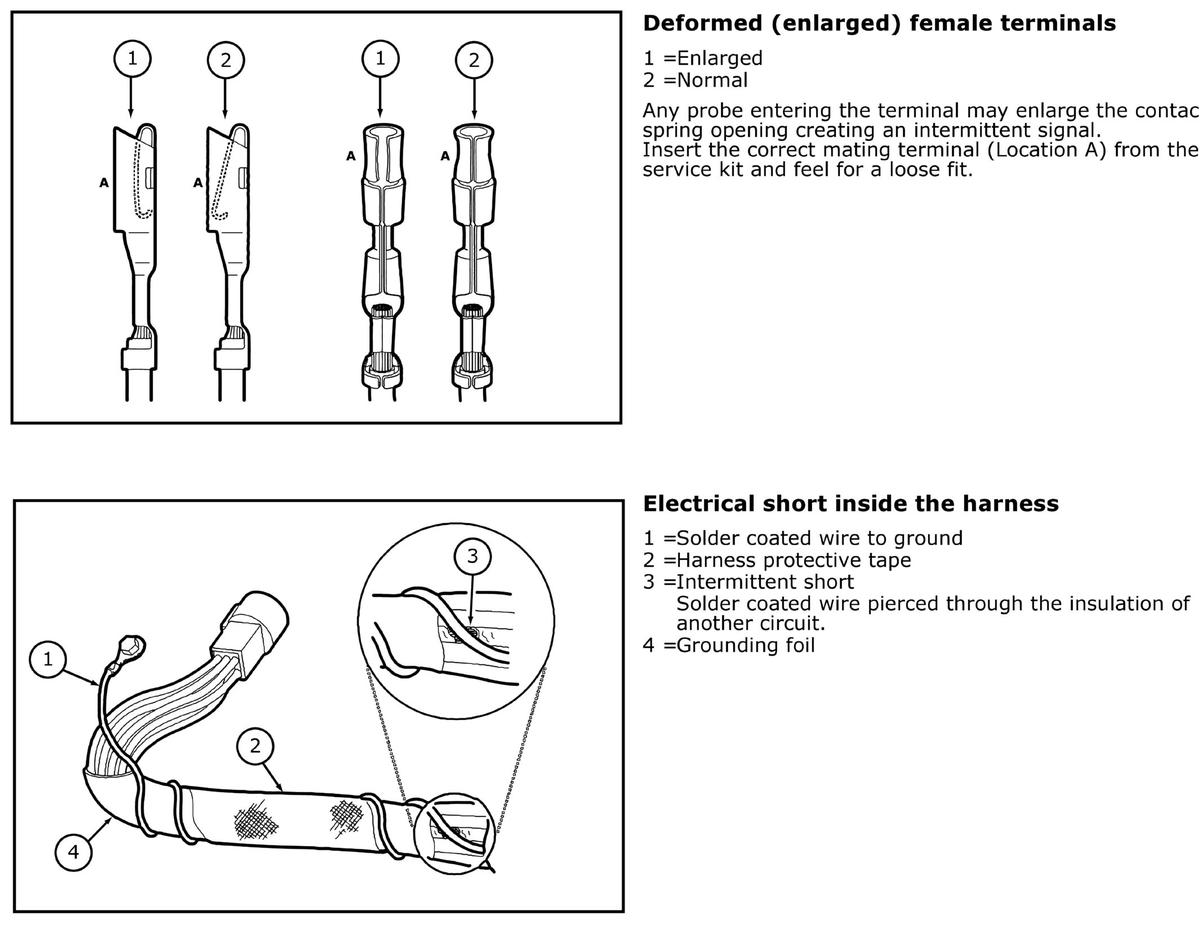

GFDWR117210Courtesy of FORD MOTOR COMPANY

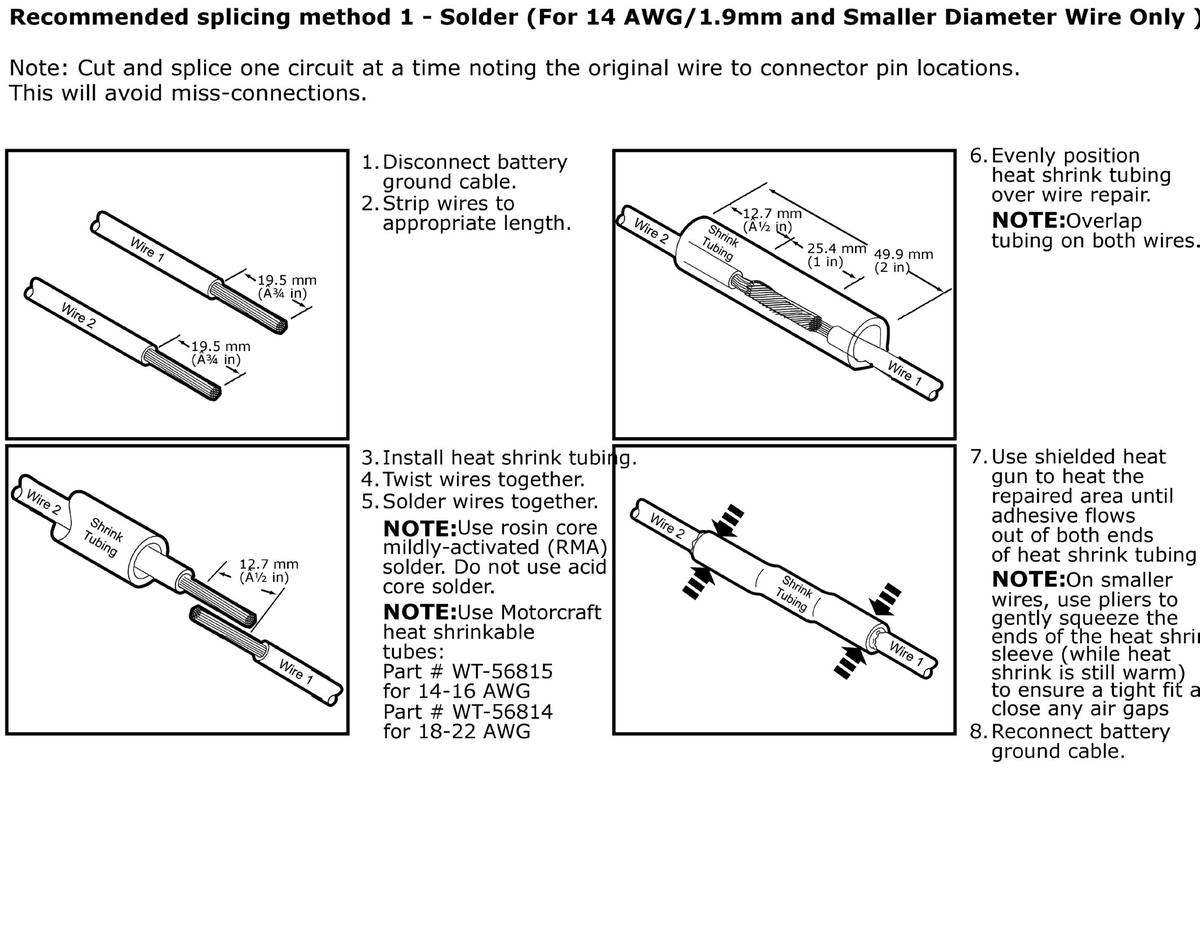

GFDWR117211Courtesy of FORD MOTOR COMPANY

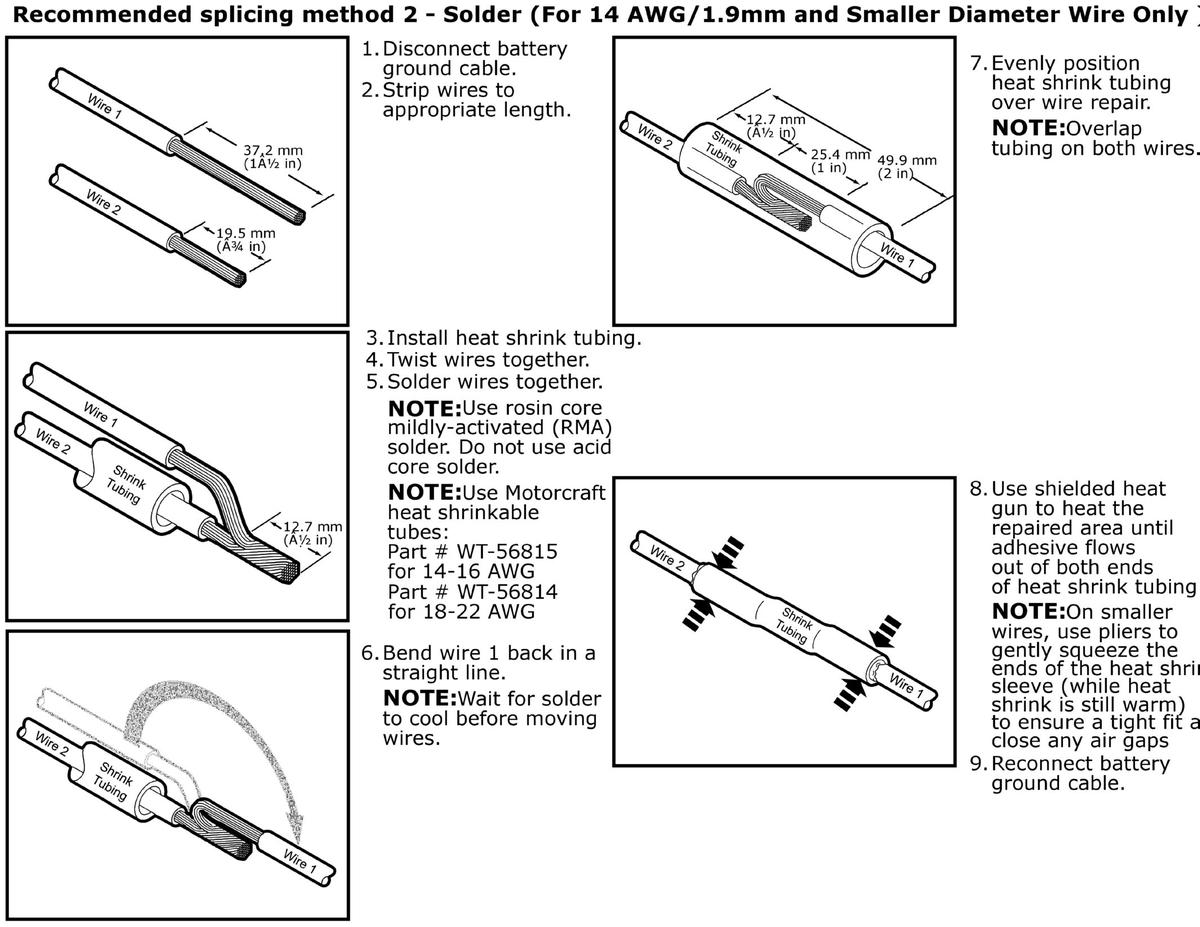

GFDWR117208Courtesy of FORD MOTOR COMPANY

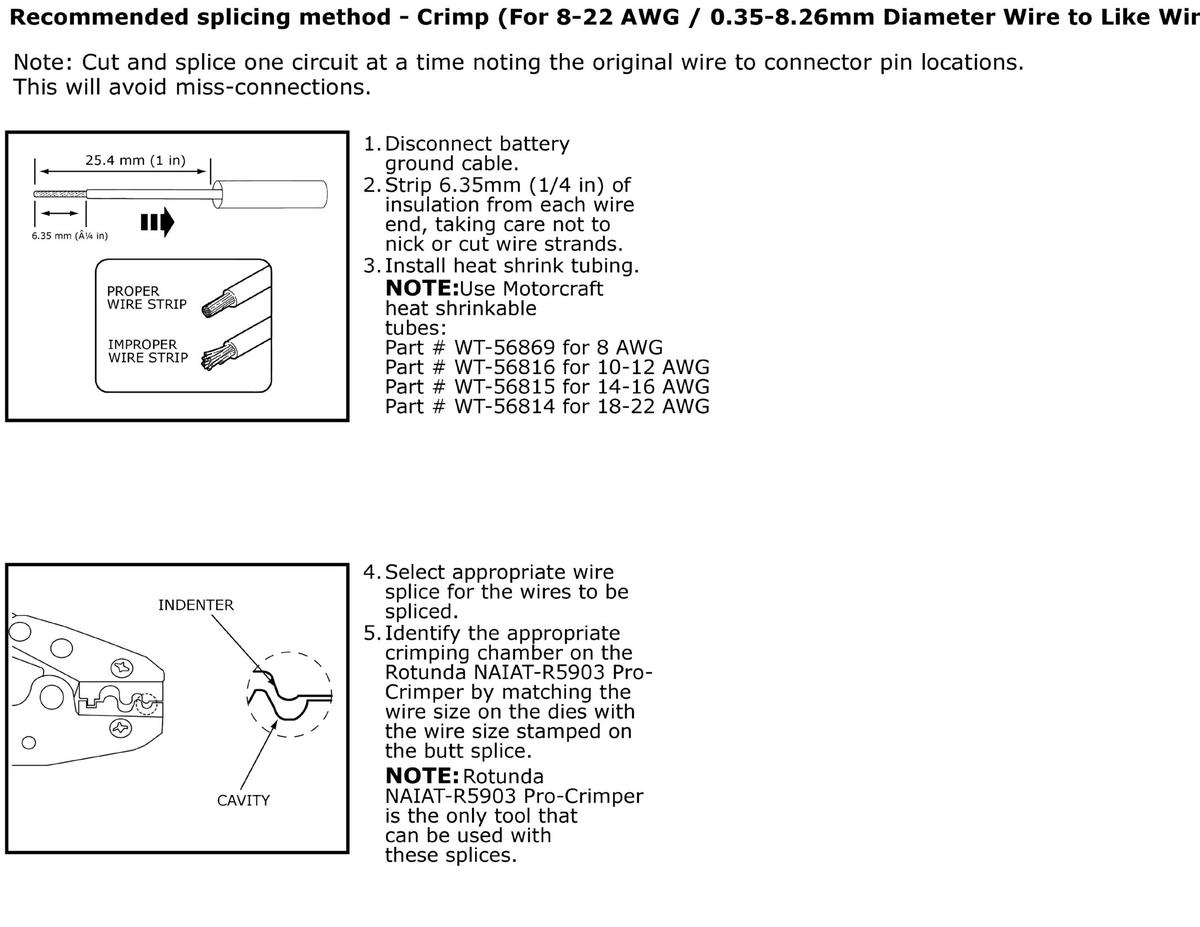

GFDWR117206Courtesy of FORD MOTOR COMPANY

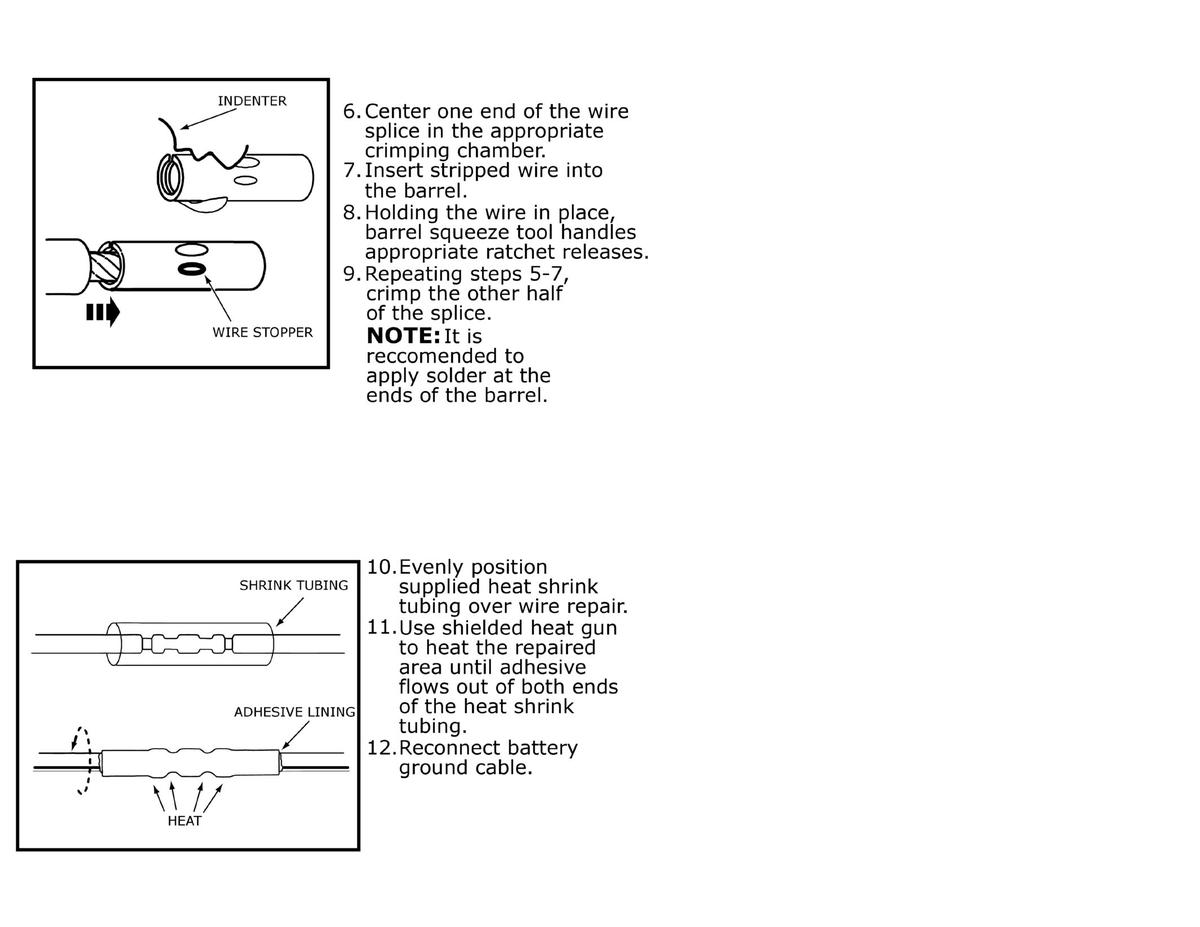

GFDWR117205Courtesy of FORD MOTOR COMPANY

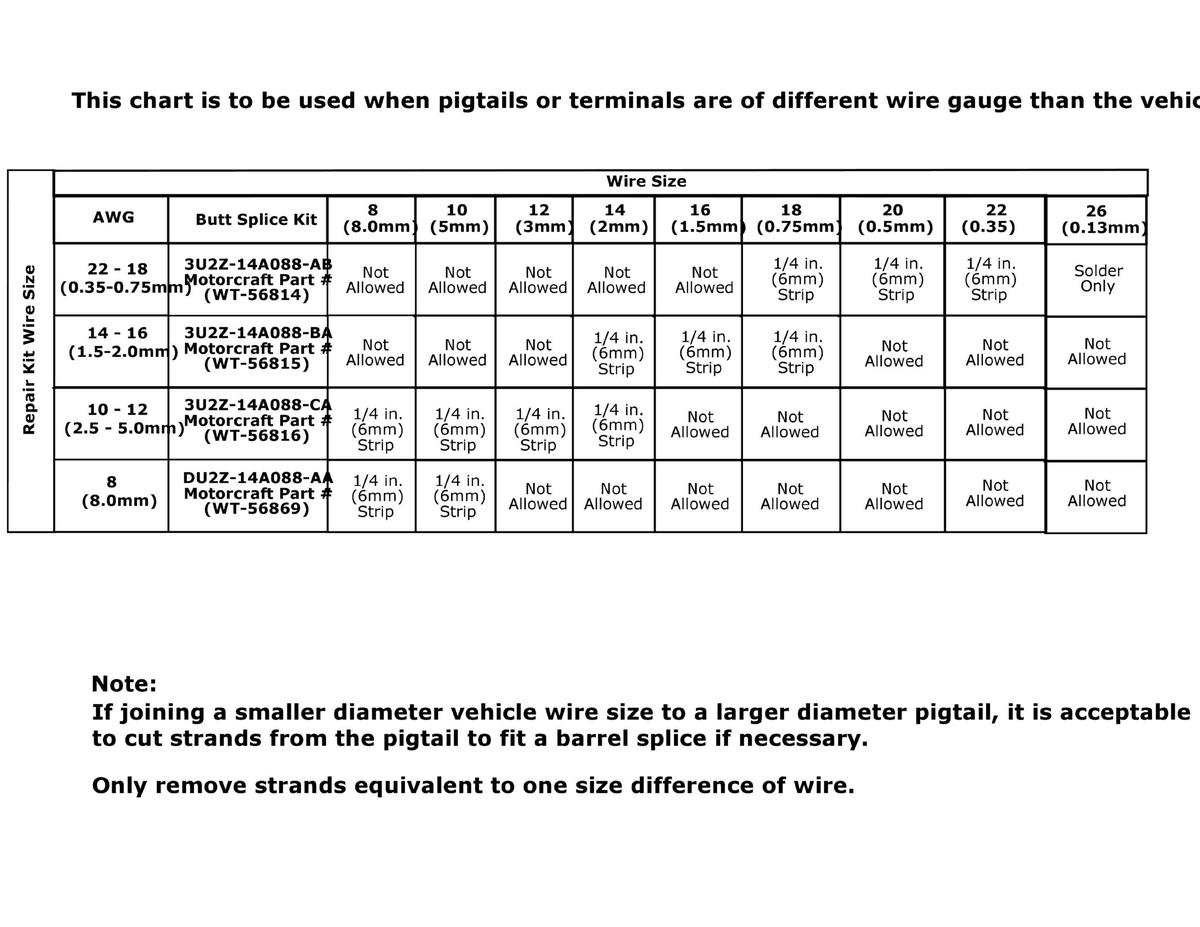

GFDWR117204Courtesy of FORD MOTOR COMPANY
