Transmission Park by Wire Manual Release

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Activation

1. Apply the parking brake and chock the wheels.

   Courtesy of FORD MOTOR COMPANY

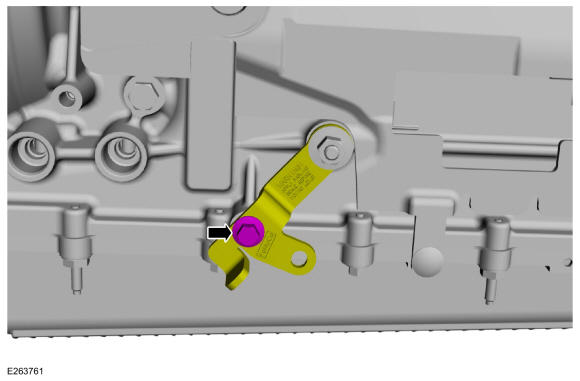

2. Remove the park override lever bolt.

   Courtesy of FORD MOTOR COMPANY

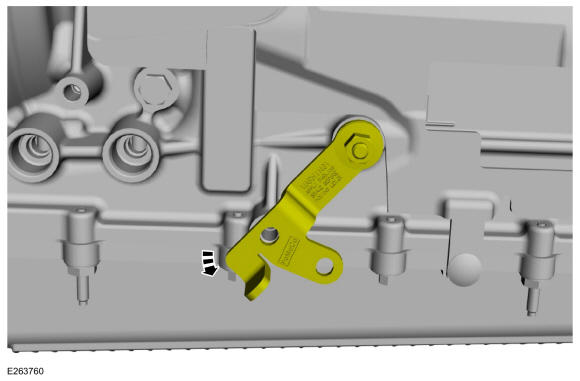

3. Move the park override lever to the park override position.

   Courtesy of FORD MOTOR COMPANY

4. Install the park override lever bolt.

   Torque: 177 lb.in (20 Nm)

   Courtesy of FORD MOTOR COMPANY

   NOTE: When the repair is complete, the park override lever must be returned to the normal operating position.

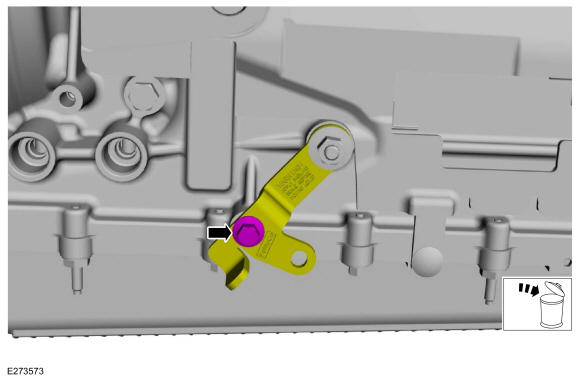

5. Remove and discard the park override lever bolt.

   Courtesy of FORD MOTOR COMPANY

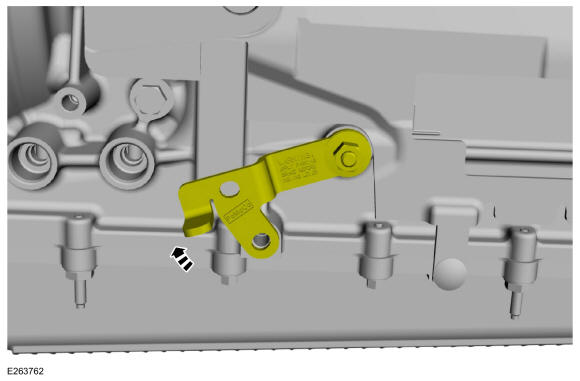

6. Move the park override lever to the normal operating position.

   Courtesy of FORD MOTOR COMPANY

7. Install a

   NEW  park override lever bolt (7P219).

   Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
