Home >> Lincoln >> 2019 >> Navigator Select, 4WD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Four-Wheel Drive Systems >> Removal And Installation >> Mode Select Switch (MSS) >> Removal

Mode Select Switch (MSS): Removal

NOTE: Removal steps in this procedure may contain installation details.

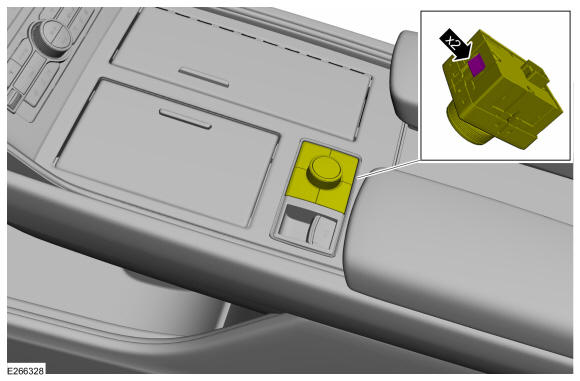

  1. Carefully pry the MSS from the center floor console panel. Use the General Equipment: Interior Trim Remover.
    GFD274052Courtesy of FORD MOTOR COMPANY

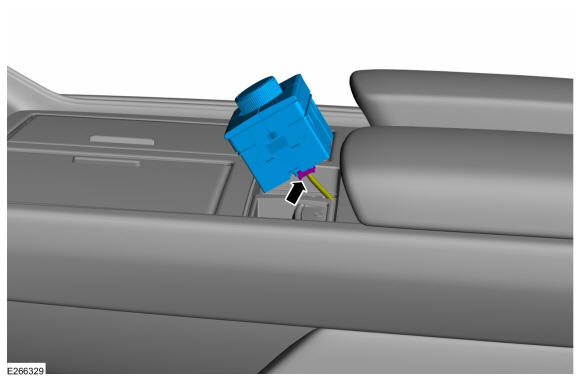

  2. Disconnect the MSS harness connector and remove the switch.
GFD274053Courtesy of FORD MOTOR COMPANY
