Home >> Lincoln >> 2019 >> Navigator Select, 4WD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission External Controls >> Removal And Installation >> Upshift Paddle Switch >> Removal

Upshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

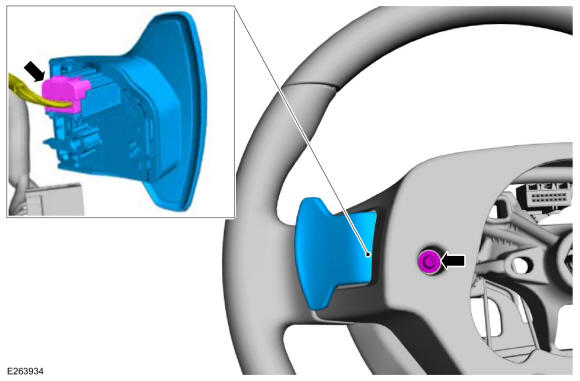

  1. Remove the screw, disconnect the electrical connector and remove the upshift paddle switch.
GFD274025Courtesy of FORD MOTOR COMPANY
