Power Fold Seat Module (PFSM): Removal

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI (programmable module installation) process must begin with the current SCMJ installed. If the current SCMJ does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCMJ following the on-screen instructions.
Remove the RH loadspace trim panel. Refer to: Loadspace Trim Panel .

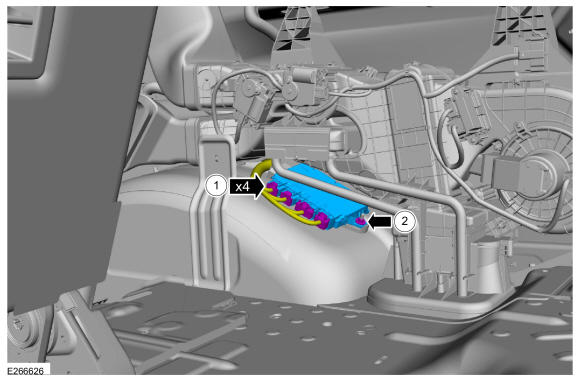

Remove the PFSM.
1. Disconnect the electrical connectors.
2. Remove the nut.
