Connector Repair Procedures

GFDW101974Courtesy of FORD MOTOR COMPANY

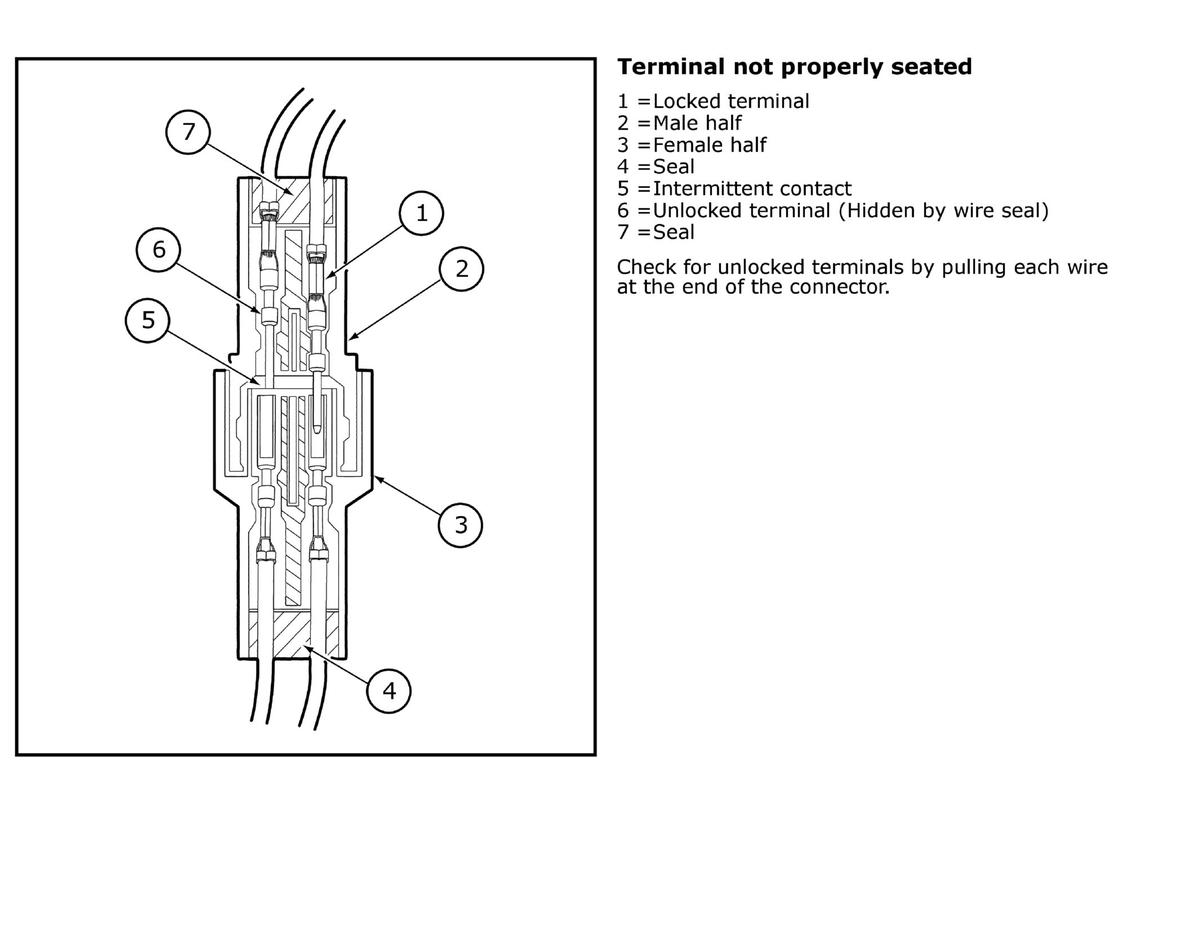

GFDW101975Courtesy of FORD MOTOR COMPANY

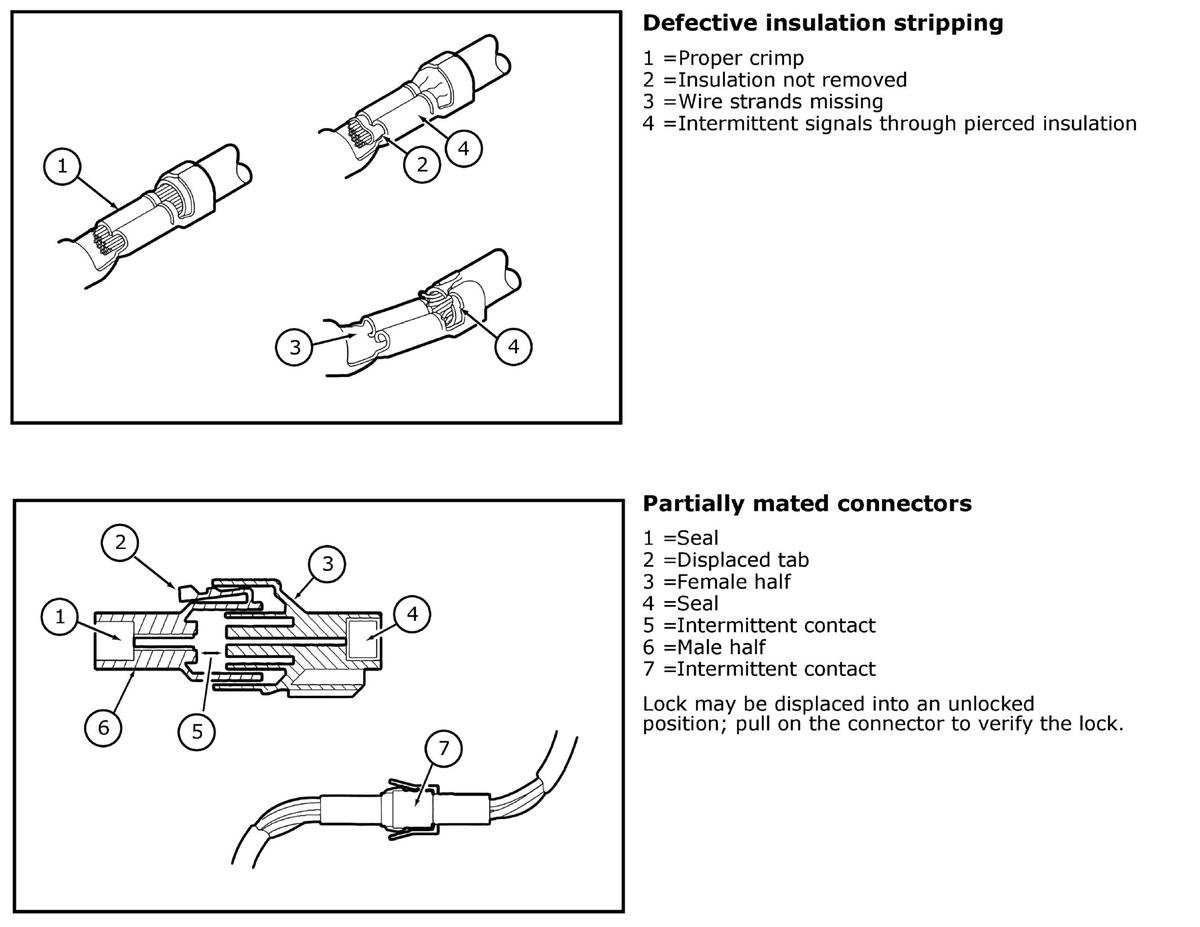

GFDW101976Courtesy of FORD MOTOR COMPANY

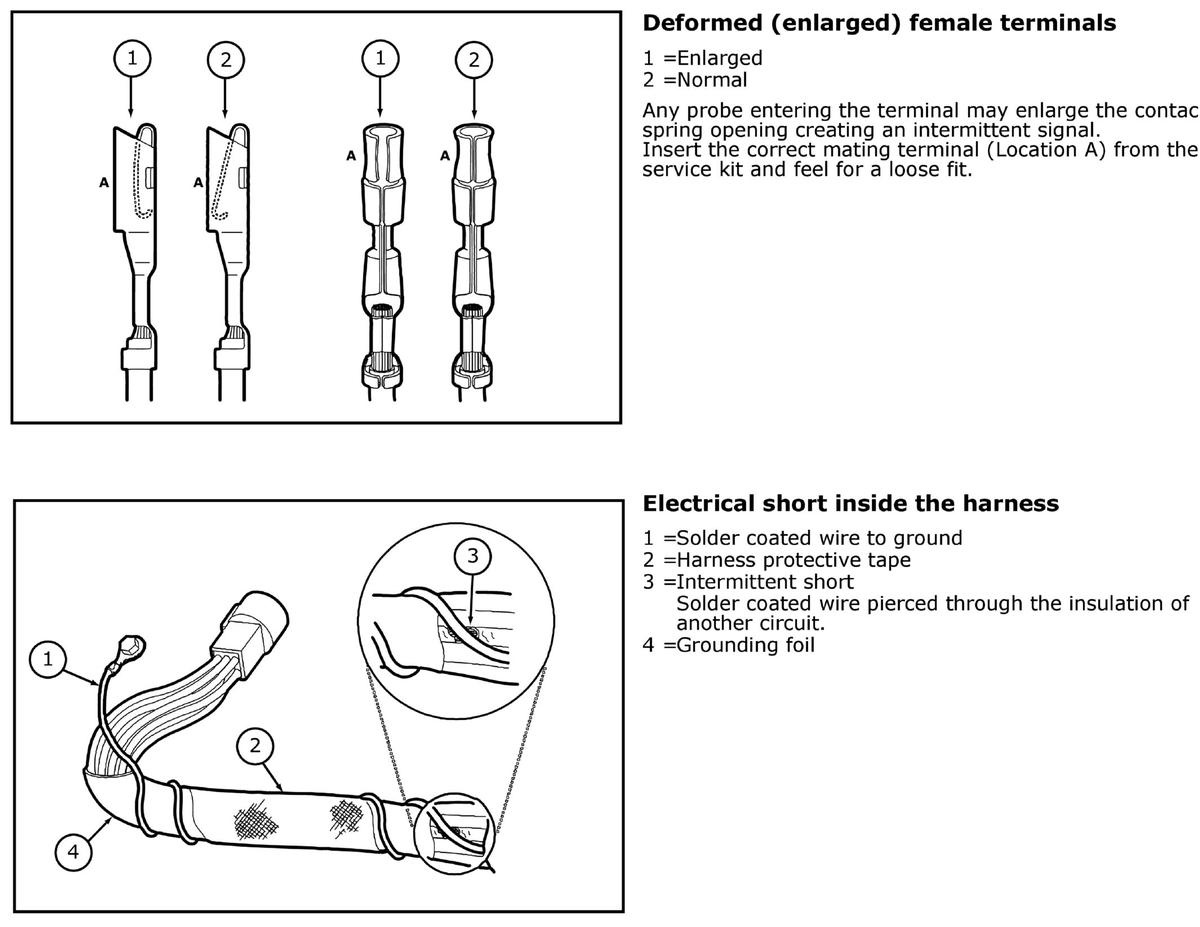

GFDW101977Courtesy of FORD MOTOR COMPANY

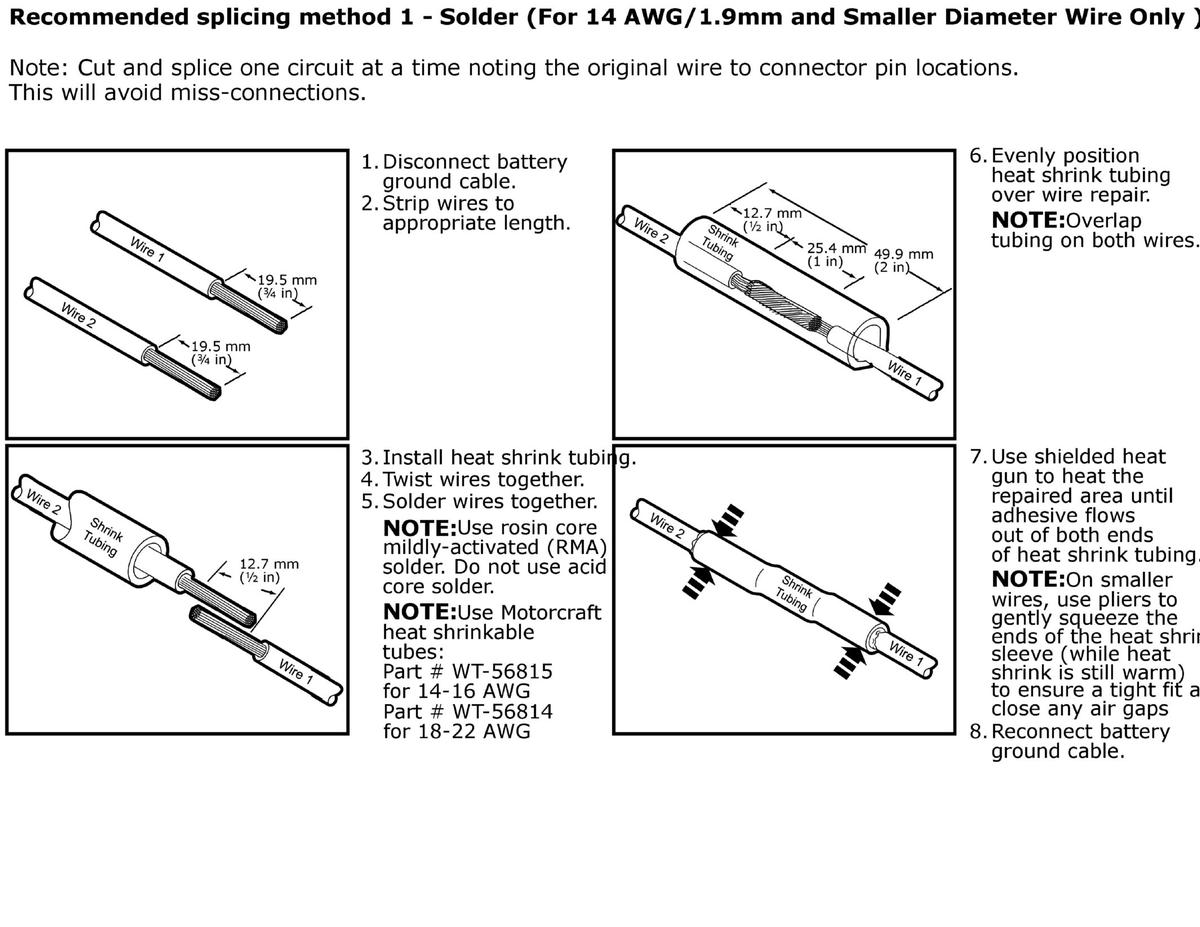

GFDW101978Courtesy of FORD MOTOR COMPANY

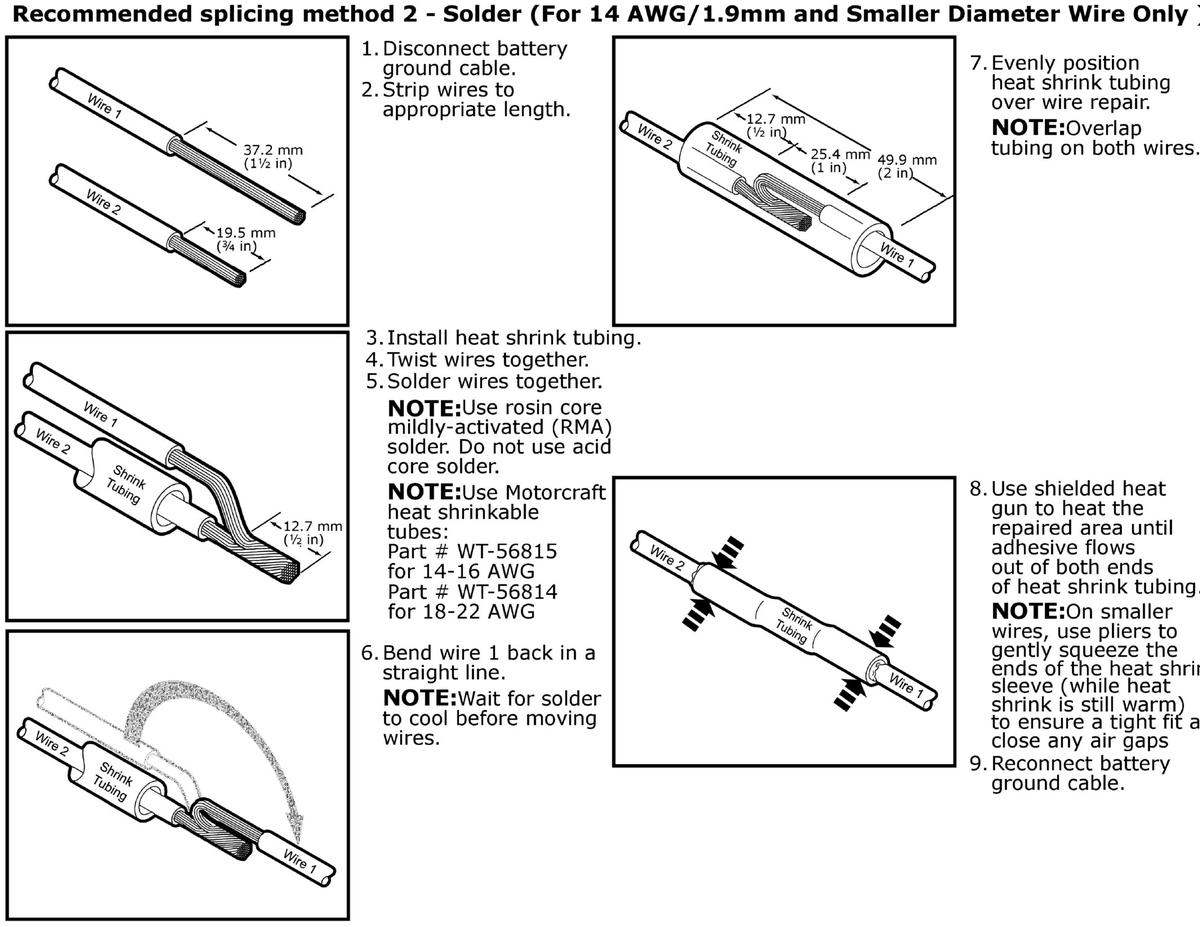

GFDW101979Courtesy of FORD MOTOR COMPANY

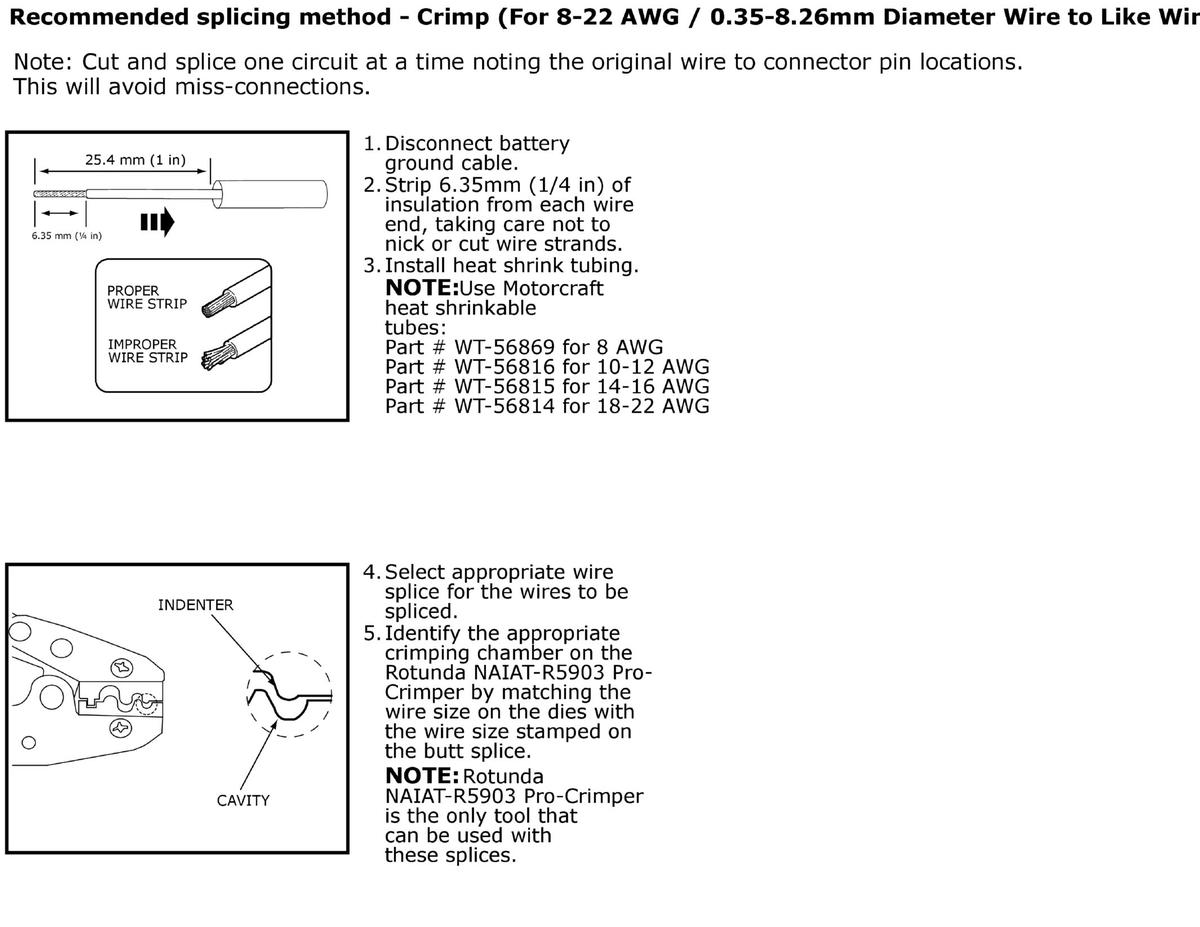

GFDW101980Courtesy of FORD MOTOR COMPANY

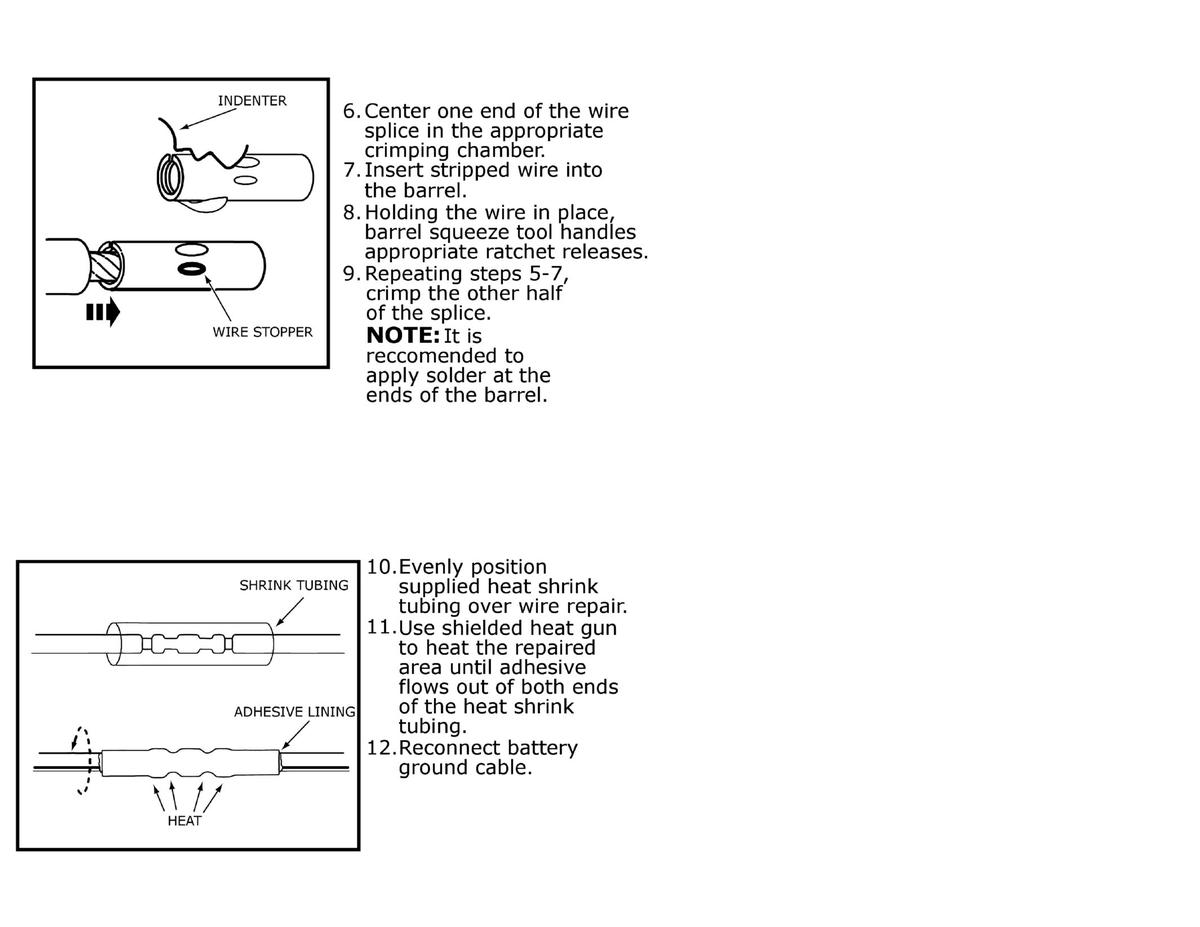

GFDW101981Courtesy of FORD MOTOR COMPANY

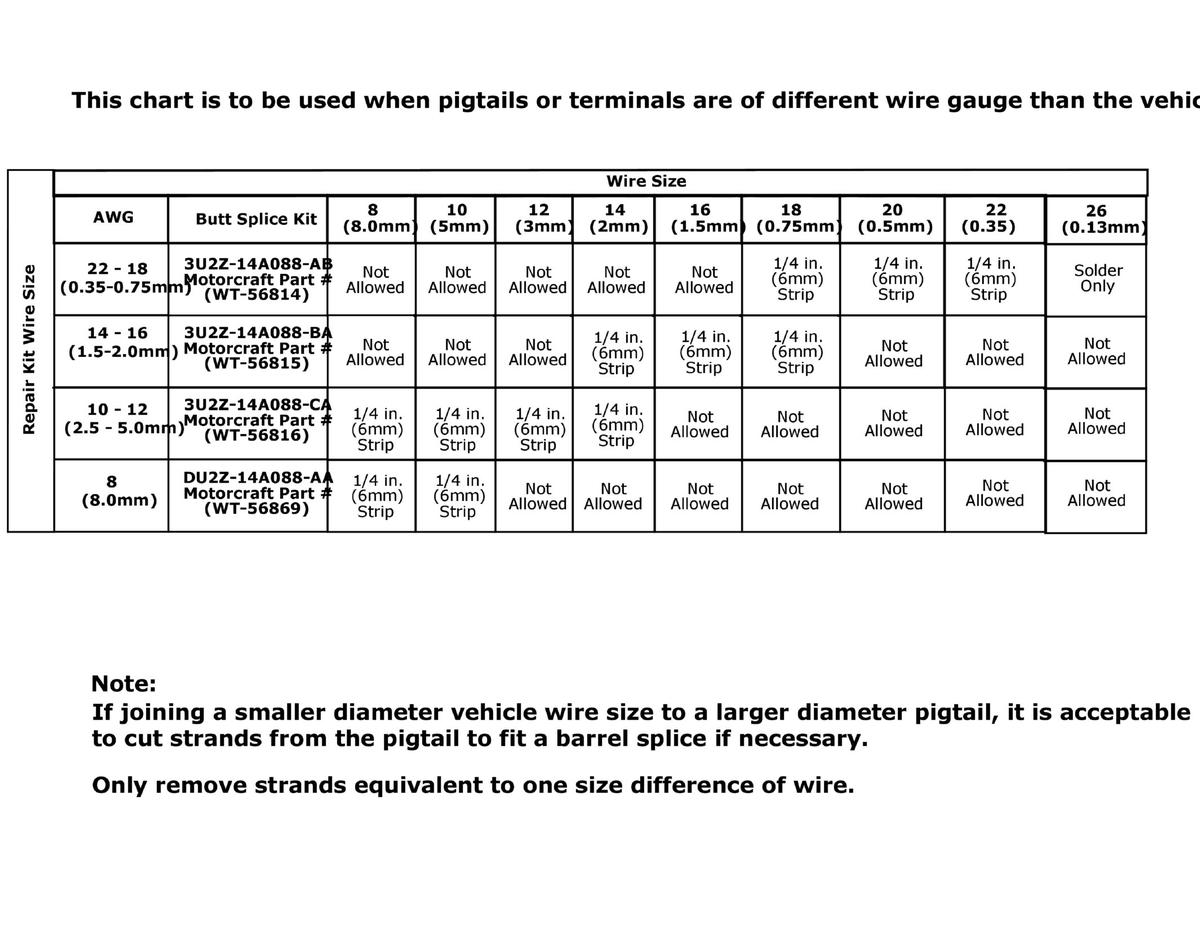

GFDW101982Courtesy of FORD MOTOR COMPANY
