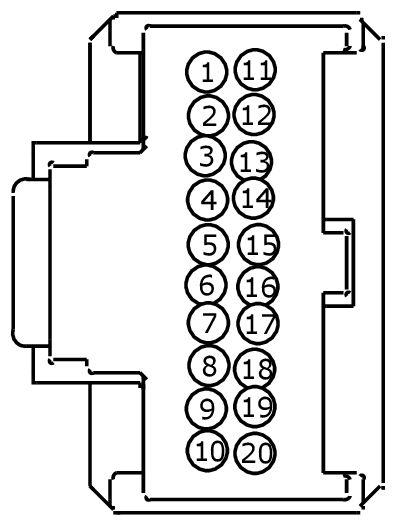

Connector End View C4548B - Audio DIGITALSIGNAL Processing (DSP) Module

DESCRIPTION

AUDIO DIGITALSIGNAL PROCESSING (DSP) MODULE

COLOR

HARNESS

14B644

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RME83 (YE-VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR MID RANGE -
2	RME12 (BN-BU)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER -
3	RME82 (BN-YE)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR MID RANGE -
4	RME40 (VT-WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR TWEETER -
5	RME08 (GY-OG)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT TWEETER -
6	RME11 (YE-OG)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT TWEETER -
7	RME39 (GY-BN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR TWEETER -
8	RMEC7 (BN-BU)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SURROUND TWEETER -
9	RMEC5 (VT-GY)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SURROUND TWEETER -
10	RME96 (GY-VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT TWEETER -
11	VME83 (GN-VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR MID RANGE +
12	VME12 (BN-WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER +
13	VME82 (GY-YE)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR MID RANGE +
14	VME40 (BU-WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR TWEETER +
15	VME08 (GN-OG)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT TWEETER +
16	VME11 (VT-OG)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT TWEETER +
17	VME39 (GN-BN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR TWEETER +
18	VMEC7 (GY-VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SURROUND TWEETER +
19	VMEC5 (BU-BN)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SURROUND TWEETER +
20	VME96 (GN-WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT TWEETER +

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1449

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ASA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Radio - Amplifier
