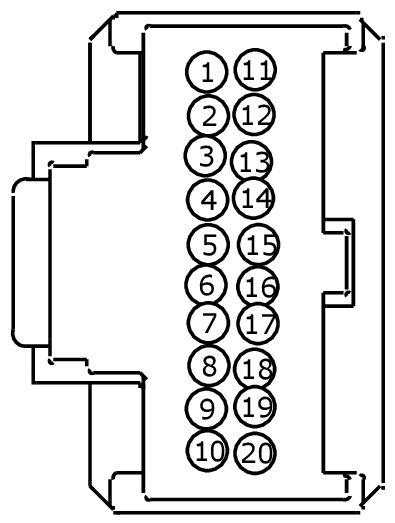

Connector End View C4348B - Audio DIGITALSIGNAL Processing (DSP) Module

DESCRIPTION

AUDIO DIGITALSIGNAL PROCESSING (DSP) MODULE

COLOR

HARNESS

14B644

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RME06 (GY-YE)	18	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 -
2	RME16 (YE-GY)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT MID RANGE
3	RME07 (WH-BN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE -
4	RME08 (GY-OG)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT TWEETER -
5	RME11 (YE-OG)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT TWEETER -
6	RME10 (WH-OG)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE -
7	RME09 (BN-YE)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER -
8	RME12 (BN-BU)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER -
9	RME96 (GY-VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT TWEETER -
10	RME72 (BU-GN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 2 -
11	VME06 (GN)	18	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 +
12	VME16 (VT-GY)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT MID RANGE +
13	VME07 (WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE +
14	VME08 (GN-OG)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT TWEETER +
15	VME11 (VT-OG)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT TWEETER +
16	VME10 (WH-VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE +
17	VME09 (WH-GN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER +
18	VME12 (BN-WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER +
19	VME96 (GN-WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT TWEETER +
20	VME72 (WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 2 +

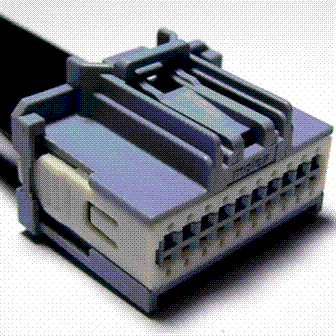

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1449

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ASA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Radio - Amplifier
