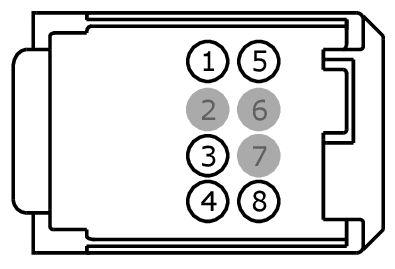

Connector End View C4326B - Audio DIGITALSIGNAL Processing (DSP) Module
DESCRIPTION
AUDIO DIGITALSIGNAL PROCESSING (DSP) MODULE
COLOR
HARNESS
14B644
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD312 (BK) | 18 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 2ND POINT | |
| 2 | * | * | Not Used | |
| 3 | SME23 (VT-RD) | 22 | CTRL MOD. - AUDIO HEAD UNIT # AMPLIFIER ENABLE 1 | |
| 4 | SBP05 (GY-RD) | 18 | FUSE - OR CIRCUIT BREAKER | |
| 5 | GD312 (BK) | 18 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 2ND POINT | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | SBP28 (GN-RD) | 18 | FUSE - OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1457 |
Service Part Number: FU2Z-14S411-AVA Gauge: 20 Pin material: Tin Cavities: 8 Vehicle Uses Module - Front Interface Radio - Amplifier |
