Front Display Interface Module (FDIM) (Navigator)

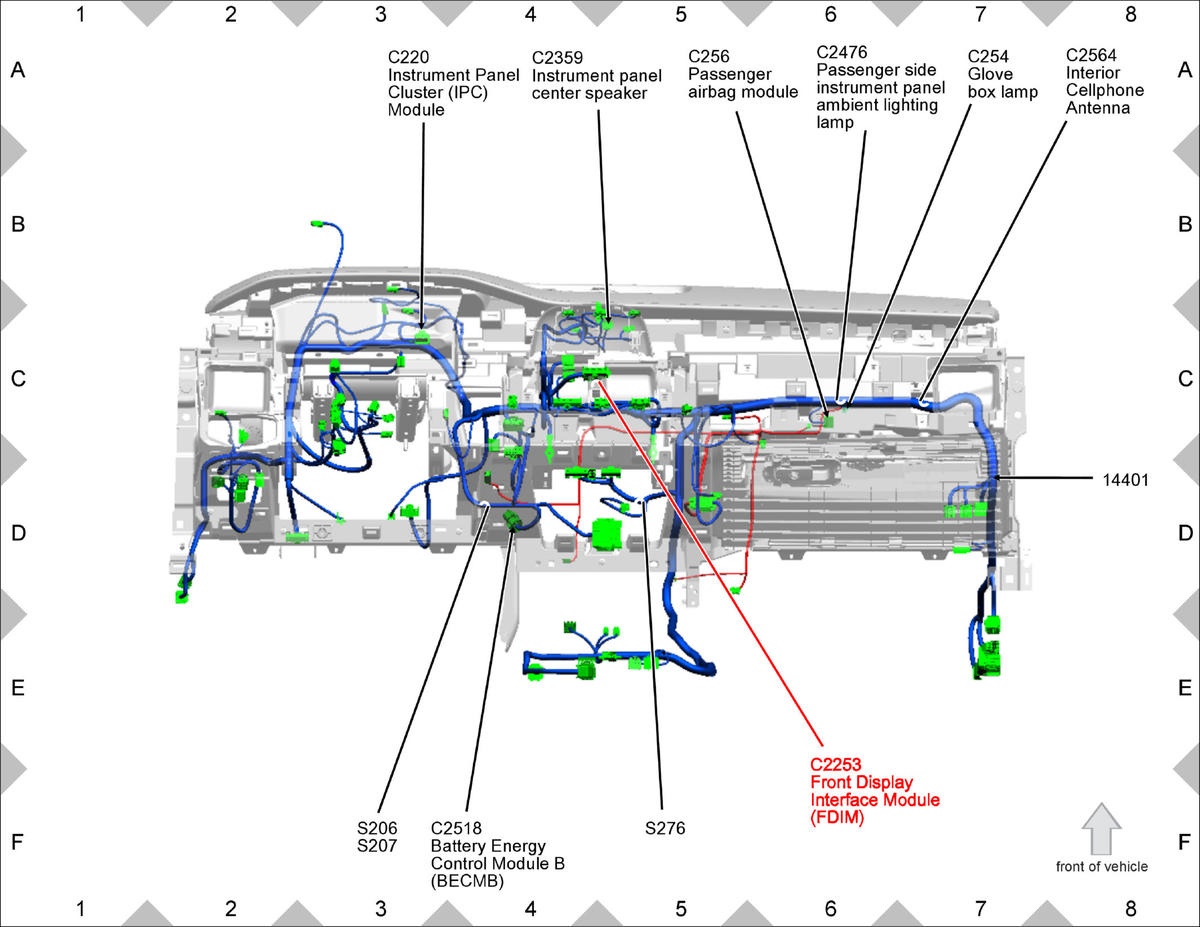

Fig 1: Front Display Interface Module (FDIM) (Navigator) Components Location

GFDW100742

Courtesy of FORD MOTOR COMPANY
