PINPOINT TEST TA: Clutch Pedal Position (CPP) Switch: Introduction

This pinpoint test is intended to diagnose the following:

Fig 1: Clutch Pedal Position (CPP) Switch Connector
G13533179Courtesy of FORD MOTOR CO.

Harness Side

Circuit Pin
CPP-BT (Clutch Pedal Position - Bottom of Travel) 1
GND (Ground) 2

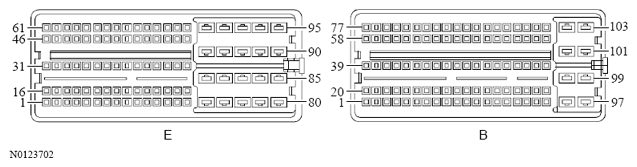

Fig 2: Powertrain Control Module (PCM) Connector - For PCM Connector Views
G13533180Courtesy of FORD MOTOR CO.

Harness Side

Circuit Pin
CPP-BT (Clutch Pedal Position - Bottom of Travel) B7
