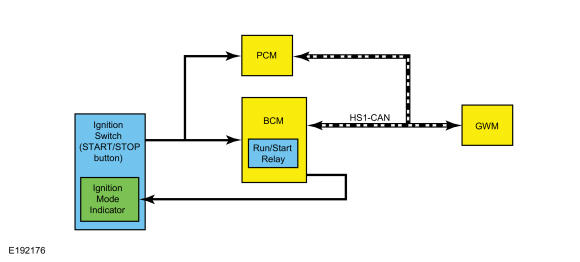

System Diagram - Push Button Ignition Switch

GFD272138Courtesy of FORD MOTOR COMPANY
Item Description
1 HS1-CAN
2 Ignition Switch (START/STOP button)
3 GWM
4 PCM
5 Ignition Mode Indicator
6 BCM
7 Run/Start Relay
