External Controls - Component Location

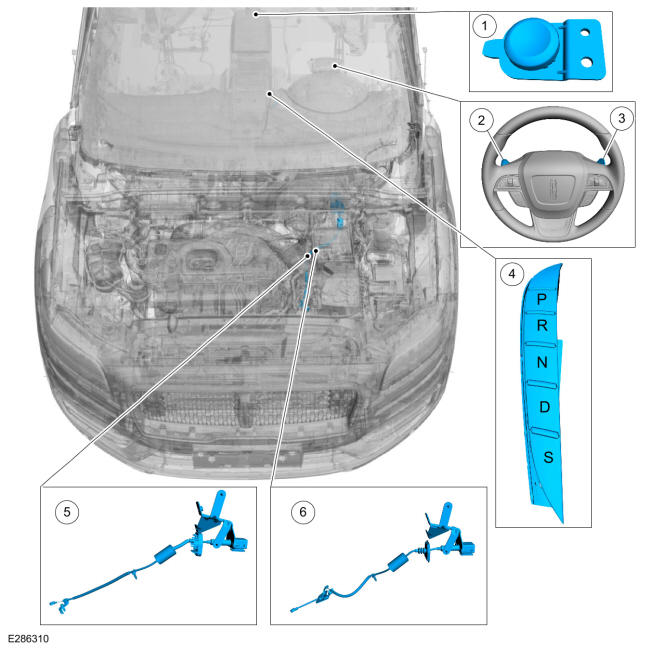

GFD428755Courtesy of FORD MOTOR COMPANY
Item Description
1 Brake shift interlock actuator override switch
2 Downshift paddle switch
3 Upshift paddle switch
4 GSM
5 Transmission park by wire release cable (8F35/8F40)
6 Transmission park by wire release cable (8F57)
