Dimmer And Passing Switch

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

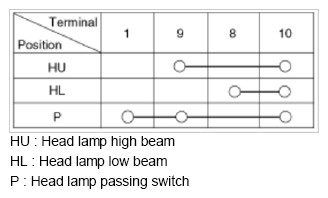

Fig 1: Lighting Switch Continuity Reference Chart (Dimmer And Passing Switch)

Courtesy of HYUNDAI MOTOR AMERICA

HU: Head lamp high beam

HL: Head lamp low beam

P: Head lamp passing switch
