Section 45 (Audio System)
>>
Troubleshooting
>>
Chart 1
Chart 1
WARNING:
This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

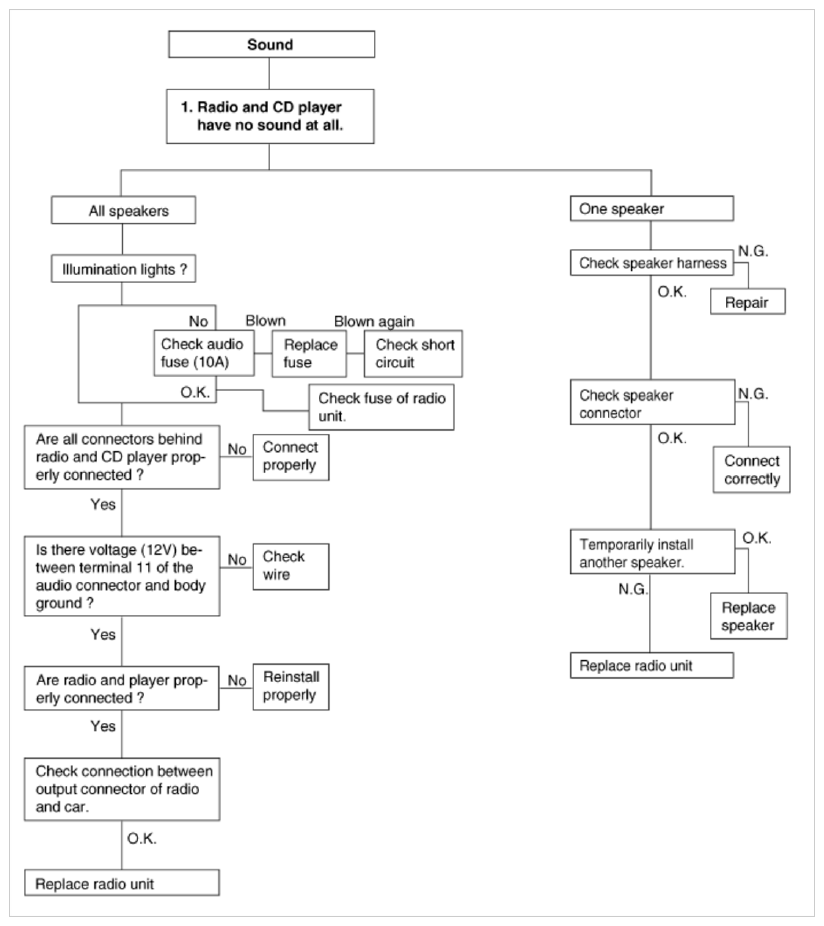

Fig 1: Sound Troubleshooting Flowchart (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

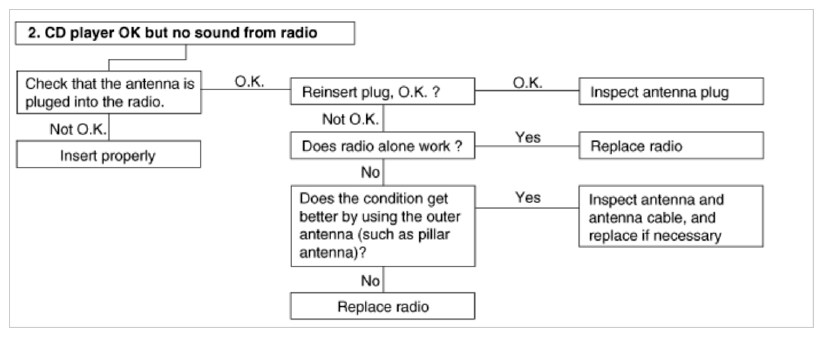

Fig 2: Sound Troubleshooting Flowchart (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
